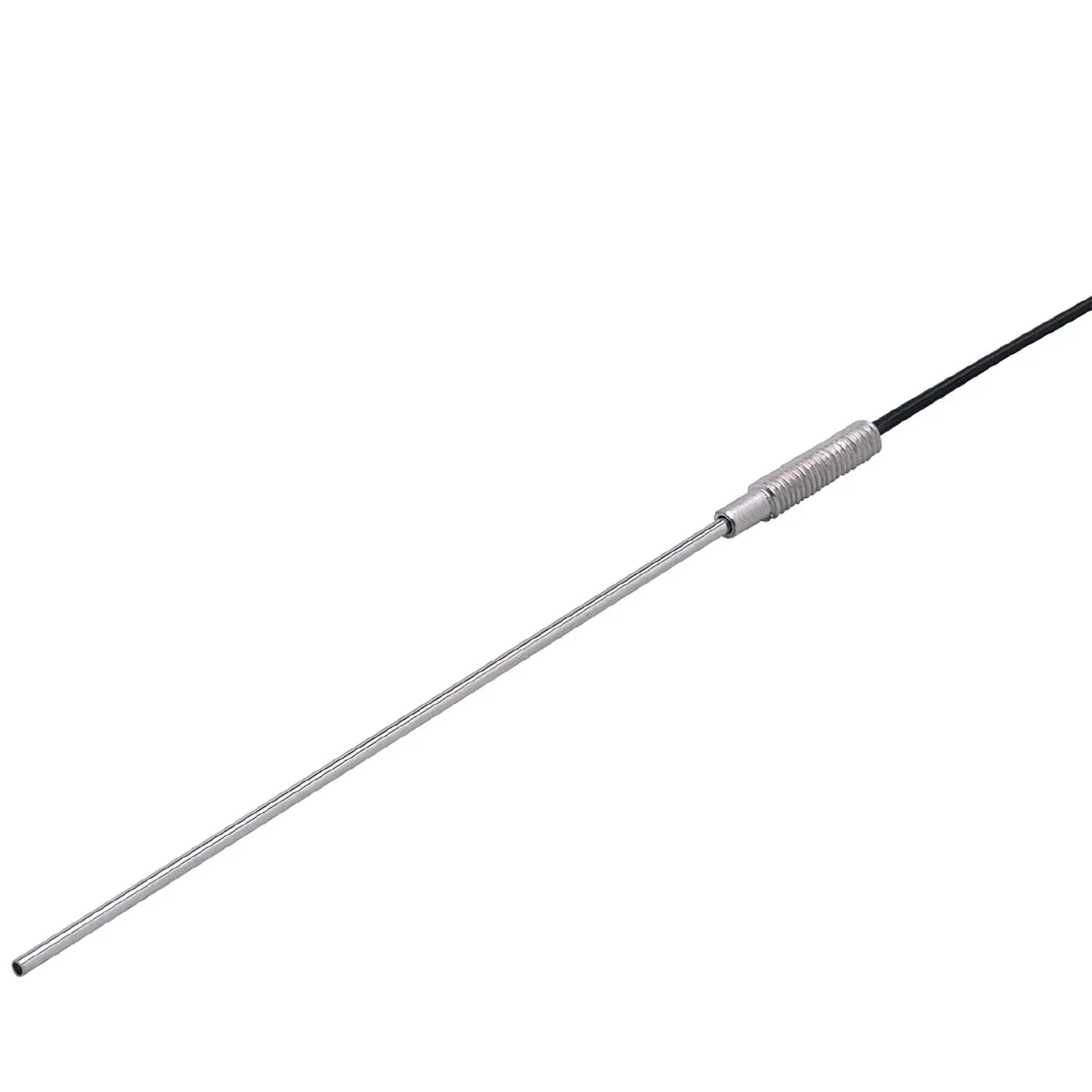

IFM E20748
E20748
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For installation in places where access is difficult
Operation as diffuse reflection sensor
With bendable sensing head for use where space is restricted
For cutting to size
Small bending radius
Specification
Application
| Function principle | Diffuse reflection sensor |
|---|---|
| Application | For use in industrial environments |
Detection zone
| Range with fibre optic amplifier type | OB50; OBF; OCF; OO50 |
|---|---|
| Range fibre optics[mm] [mm] | 60 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...70 |
|---|
Mechanical data
| Weight[g] [g] | 34.5 |
|---|---|
| Version of sensing head | bendable |
| Total length[mm] [mm] | 2000 |
| Min. bending radius[mm] [mm] | 16 |
| Core diameter[mm] [mm] | 2 x 0.5 |
| Materials | threaded sleeve: brass white bronze coated |
| Fibre material | PMMA |
| Fibre head material | stainless steel (304/1.4301) |
| Fibre sheath material | PE |
Accessories
| Items supplied | hexagon nuts: 2 x M4 tooth lock washers: 2 knurled nut: 1 x M11 Adapter: 1 x OCF |
|---|---|
| Accessories (optional) | Cutter for fibre optics:, E20600 |
Remarks
| Pack quantity | 1 pcs. |
|---|
