IFM E20714
E20714
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns

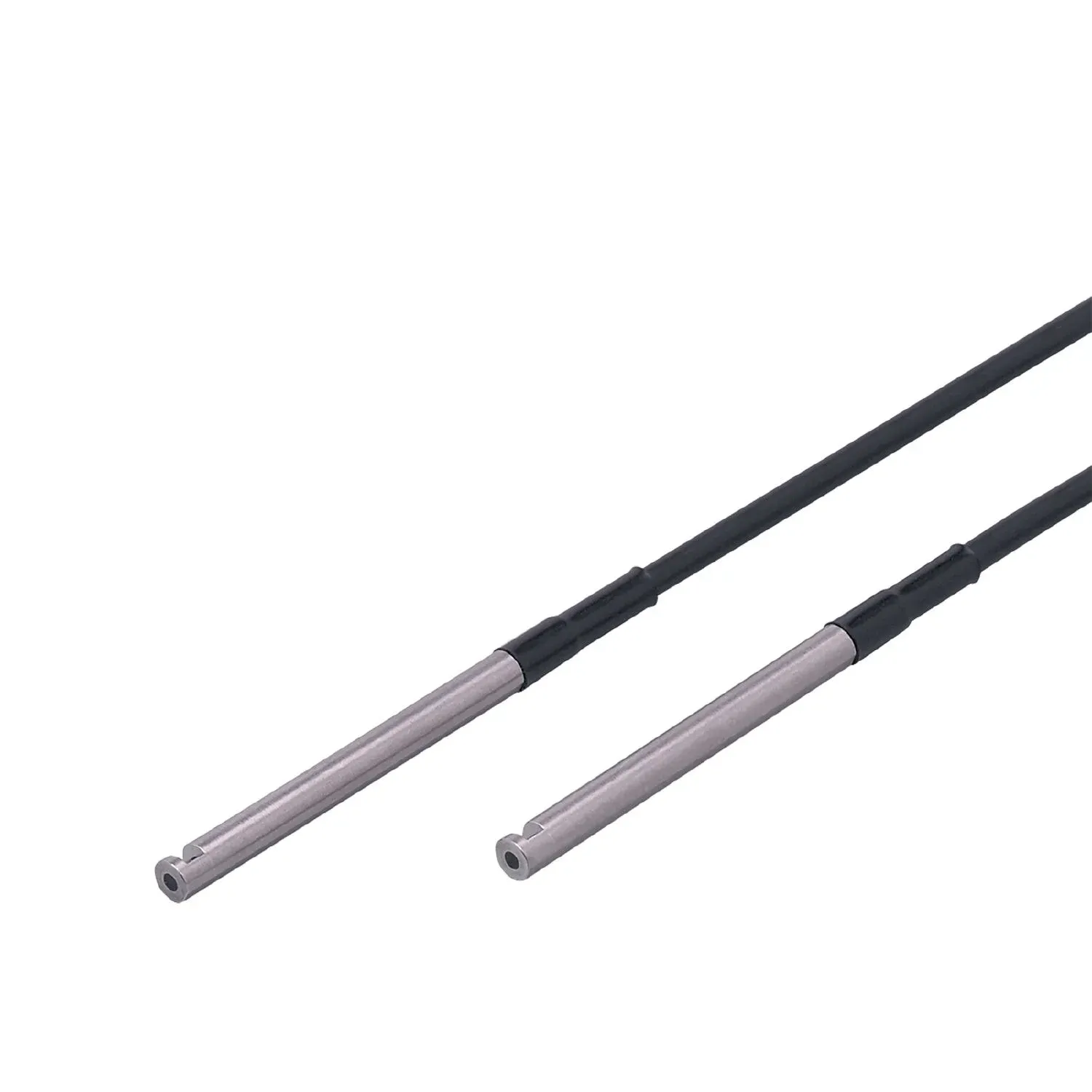

Description
For installation in places where access is difficult
Operation as through-beam sensor
With 90° deflection of the light beam for use where space is restricted
For cutting to size
Small bending radius
Specification
Application
| Design | 90° deflection of the light beam |
|---|---|
| Function principle | Through-beam sensor |
| Application | For use in industrial environments |
Detection zone
| Range with fibre-optic amplifier type | OB50; OBF; OCF; OO50 |
|---|---|
| Range of fibre optics[mm] [mm] | 400 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...70 |
|---|
Mechanical data
| Weight[g] [g] | 58.5 |
|---|---|
| Version of sensing head | angled |
| Sensing head diameter[mm] [mm] | 3 |
| Sensing head length[mm] [mm] | 35 |
| Total length[mm] [mm] | 2000 |
| Min. bending radius[mm] [mm] | 25 |
| Fibre material | PMMA |
| Fibre head material | stainless steel (303/1.4305) |
| Fibre sheath material | PE |
Accessories
| Items supplied | Mounting clamp:, E20107 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
