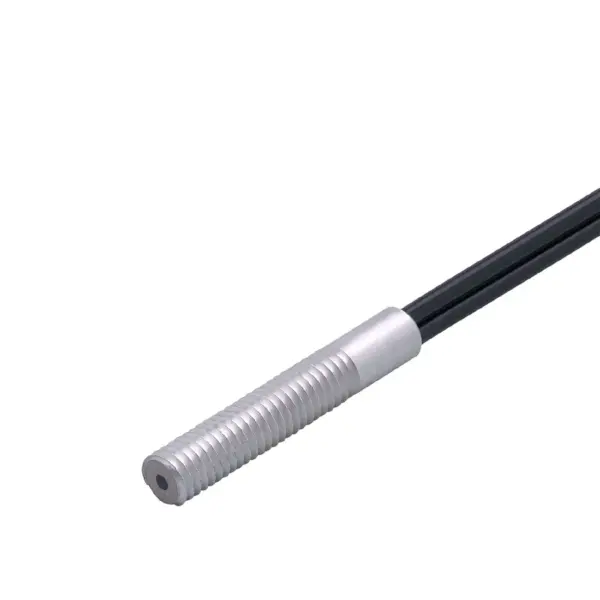

IFM E20648
E20648
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For installation in places where access is difficult
Operation as diffuse reflection sensor
For use at short range
For cutting to size
Very small bending radius
Specification
Application
| Function principle | Diffuse reflection sensor |
|---|---|
| Application | Small bending radius |
Detection zone
| Range with fibre optic amplifier type | OB50; OBF; OCF; OO50 |
|---|---|
| Range fibre optics[mm] [mm] | 300 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...70 |
|---|
Mechanical data
| Weight[g] [g] | 49.5 |
|---|---|
| Version of sensing head | straight |
| Sensing head thread | M6 |
| Sensing head length[mm] [mm] | 35 |
| Total length[mm] [mm] | 2000 |
| Min. bending radius[mm] [mm] | 9 |
| Core diameter[mm] [mm] | 2 x 16 x 0.25 |
| Fibre material | PMMA |
| Fibre head material | aluminium |
| Fibre sheath material | PE |
Accessories
| Items supplied | hexagon nuts: 2 x M6, stainless steel tooth lock washers: 2 |
|---|---|
| Accessories (optional) | Cutter for fibre optics:, E20600 |
Remarks
| Pack quantity | 1 pcs. |
|---|
