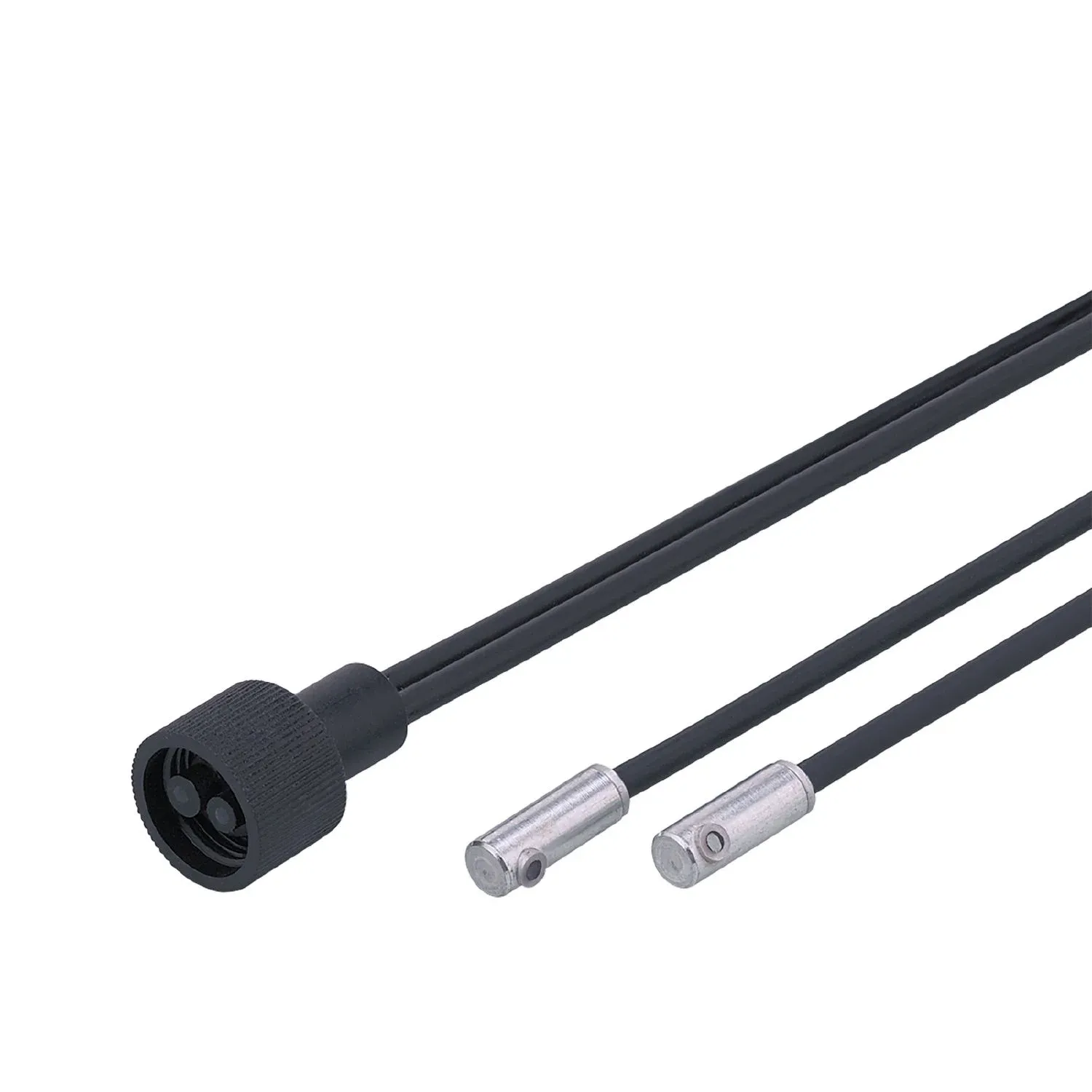

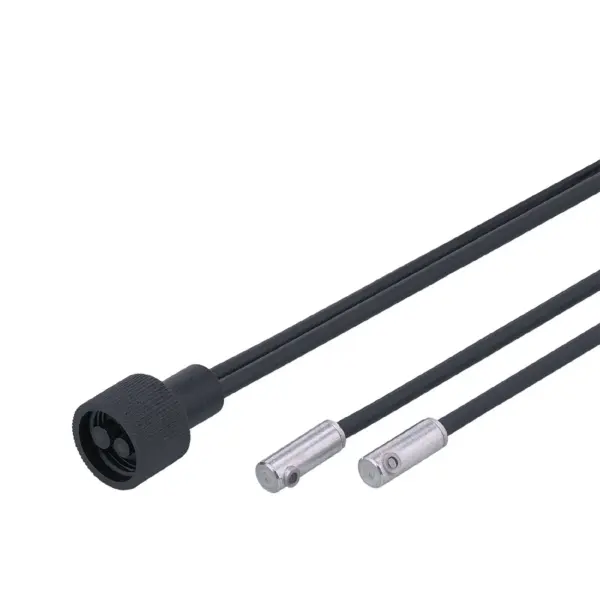

IFM E20228
E20228
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For installation in places where access is difficult
Operation as through-beam sensor
Long range
Angled type for use where space is restricted
Small bending radius
Specification
Application
| Design | 90° deflection of the light beam |
|---|---|
| Function principle | Through-beam sensor |
| Application | For use in industrial environments |
Detection zone
| Range with fibre-optic amplifier type | OKF; OUF; OOF |
|---|---|
| Range of fibre optics[mm] [mm] | 120 |
Operating conditions
| Ambient temperature[°C] [°C] | -20...80 |
|---|
Mechanical data
| Weight[g] [g] | 54.5 |
|---|---|
| Version of sensing head | angled |
| Sensing head diameter[mm] [mm] | 5 |
| Sensing head length[mm] [mm] | 14 |
| Total length[mm] [mm] | 600 |
| Min. bending radius[mm] [mm] | 20 |
| Fibre material | glass |
| Fibre head material | aluminium |
| Fibre sheath material | PVC |
Accessories
| Items supplied | E20104 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
