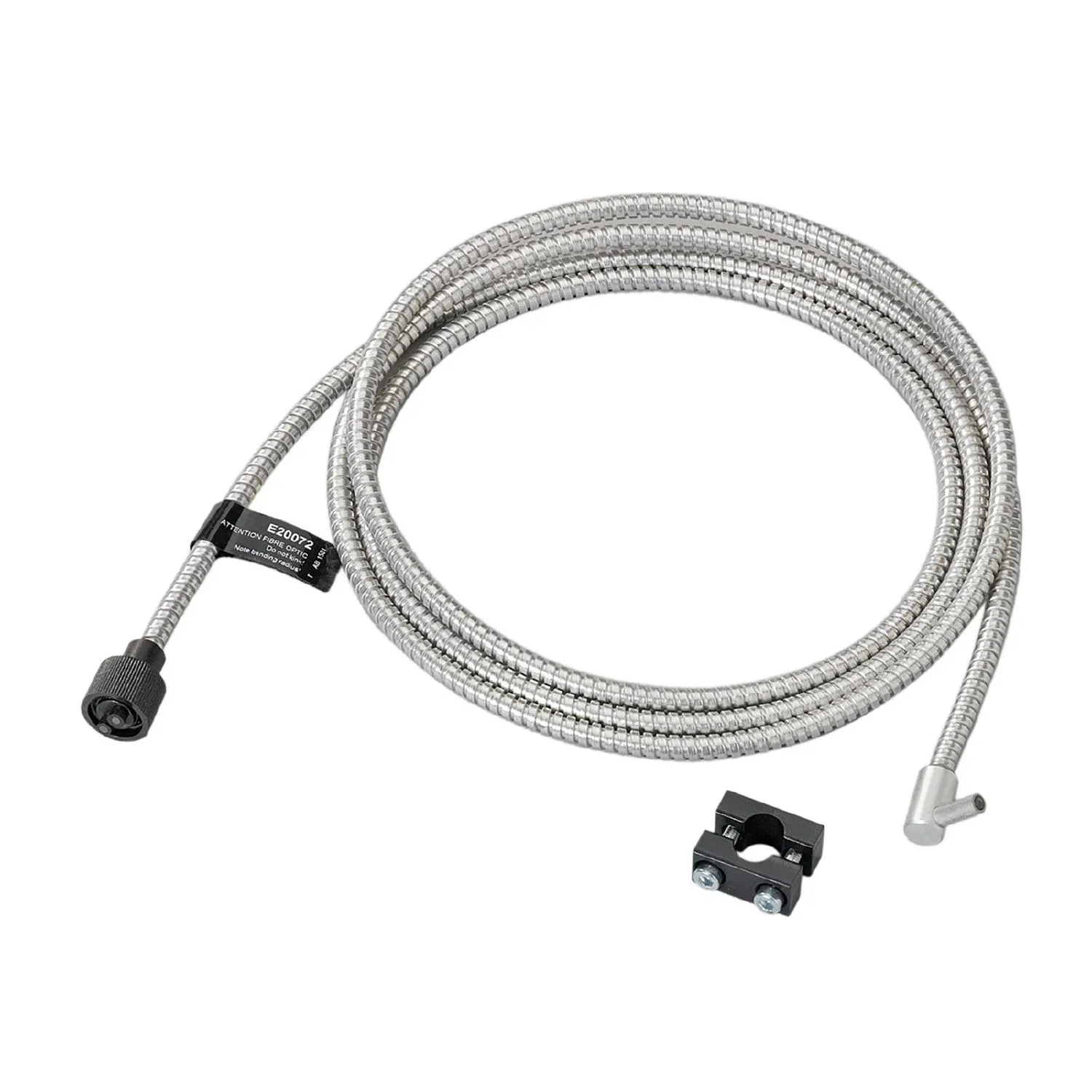

IFM E20072
E20072
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For applications in high-temperature areas
Aluminium sheathing for use up to 290 °C
Installation in places where access is difficult
Angled type for use where space is restricted
Small bending radius
Specification
Application
| Function principle | Diffuse reflection sensor |
|---|---|
| Application | High temperature resistance; Robust design for use in harsh industrial environments |
Detection zone
| Range with fibre optic amplifier type | OKF; OUF; OOF |
|---|---|
| Range fibre optics[mm] [mm] | 36 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...290 |
|---|
Mechanical data
| Weight[g] [g] | 72 |
|---|---|
| Version of sensing head | angled |
| Sensing head diameter[mm] [mm] | 4 |
| Sensing head length[mm] [mm] | 10 |
| Total length[mm] [mm] | 1500 |
| Min. bending radius[mm] [mm] | 20; (for fixed installation) |
| Materials | Adapter: ABS |
| Fibre material | glass |
| Fibre head material | aluminium |
| Fibre sheath material | aluminium |
Accessories
| Items supplied | Mounting clamp:, E10221 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
