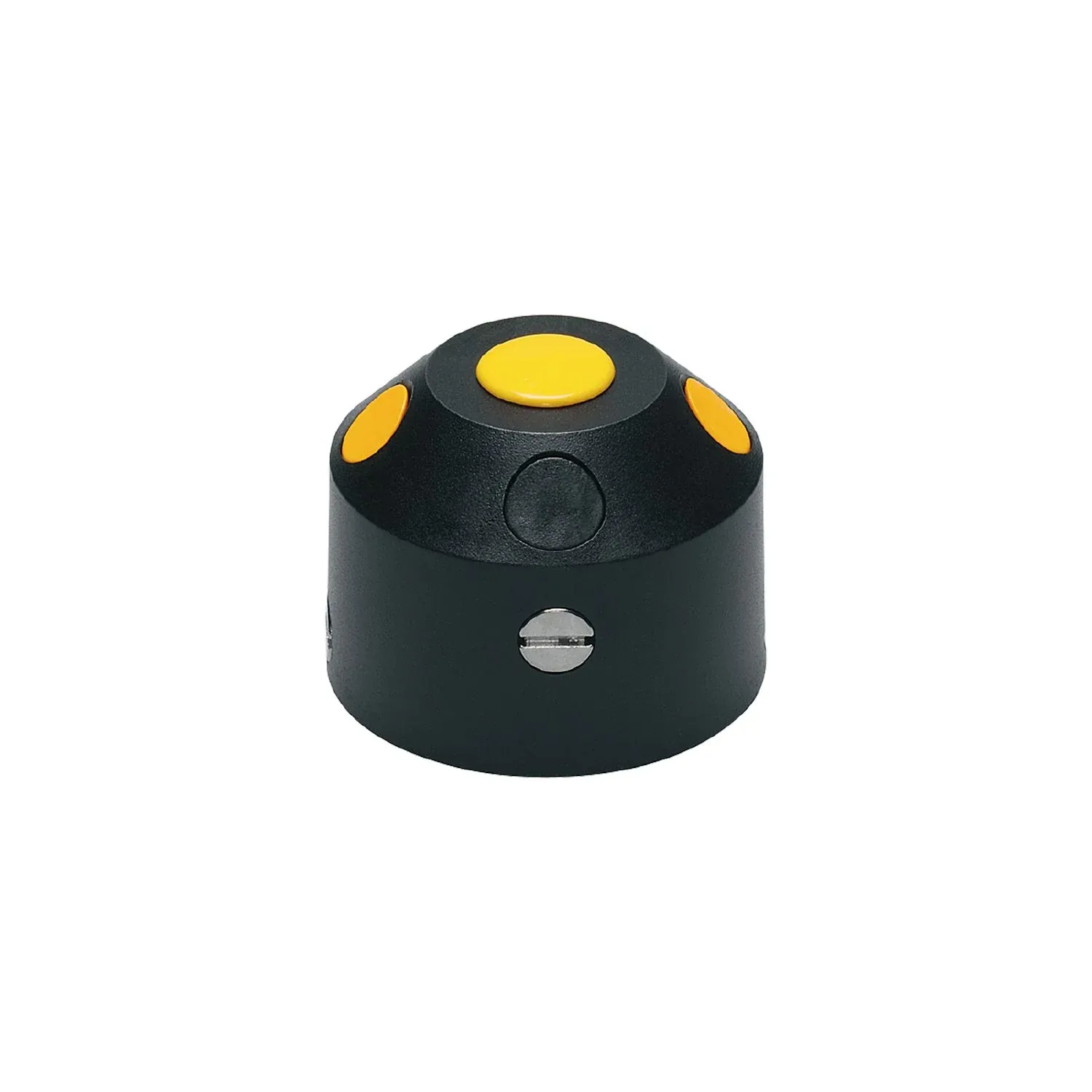

IFM E17320
E17320
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For monitoring valve positions
For reliable position feedback on valve actuators
Easy mounting directly on the shaft of the drive
Non-contact and self-cleaning system
Selectable position of the damping screws
Specification
Application
| Design | for mechanical interfaces to pneumatic actuators or manually-operated valves VDI / VDE 3845, ISO 5211 / DIN 3337 |
|---|
Mechanical data
| Weight[g] [g] | 43.2 |
|---|---|
| Target puck diameter[mm] [mm] | 53 |
| Hole spacing[mm] [mm] | 80 |
| Shaft height of valve drive[mm] [mm] | 20 |
| Number of possible switching flag positions | 3 |
| Materials | target puck: PA 6 black; screws: stainless steel (1.4302) |
Accessories
| Items supplied | socket head screw: 1 x (M6 x 16 mm), with washer countersunk screws: 2 x (M5 x 8 mm) direction indications: 2, yellow direction indications: 2, black Cover: 1, yellow cover plug: 1, black |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
