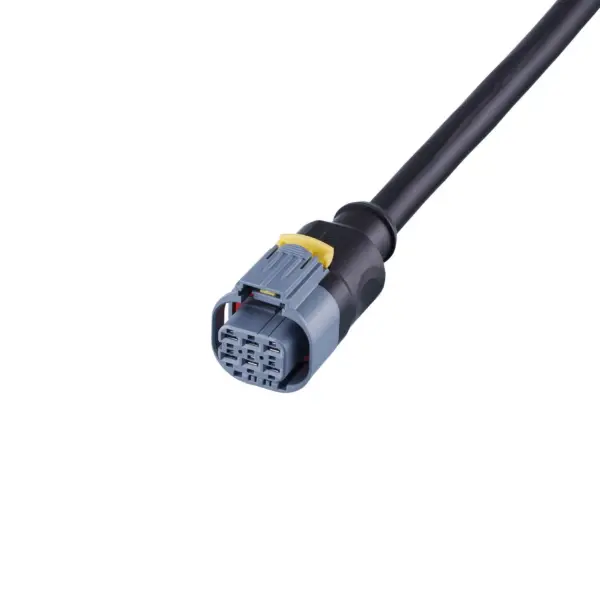

IFM E12833
E12833
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For use in mobile machines and vehicles
Large operating voltage range
AMP connector for the fast and easy connection to the on-board system
High protection rating for the requirements of harsh industrial environments
Specification
Application
| Special feature | Halogen-free |
|---|---|
| Application | CAN bus; for mobile applications |
Electrical data
| Operating voltage[V] [V] | 12...24 DC |
|---|---|
| Protection class | III |
| Max. current load total[A] [A] | 17; (wires 2+5: 4 A) |
Operating conditions
| Ambient temperature[°C] [°C] | -40...80 |
|---|---|
| Ambient temperature (moving)[°C] [°C] | -15...80 |
| Protection | IP 65; IP 67; (mating connector plugged in) |
Mechanical data
| Weight[g] [g] | 394.1 |
|---|---|
| Moulded-body material | TPU |
| Sealing material | silicone |
Remarks
| Remarks | bending radius for flexible use: min. 15 x cable diameter |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - socket
| Connector | 1 x AMP connector, straight; Moulded body: TPU, black; Sealing: silicone |
|---|
Electrical connection
| Cable | 2 m, PUR, Halogen-free, black, Ø 10 mm; 2 x 0.5 mm² (16 x Ø 0.2 mm ) + 4 x 2.5 mm² (50 x Ø 0.25 mm ) |
|---|
