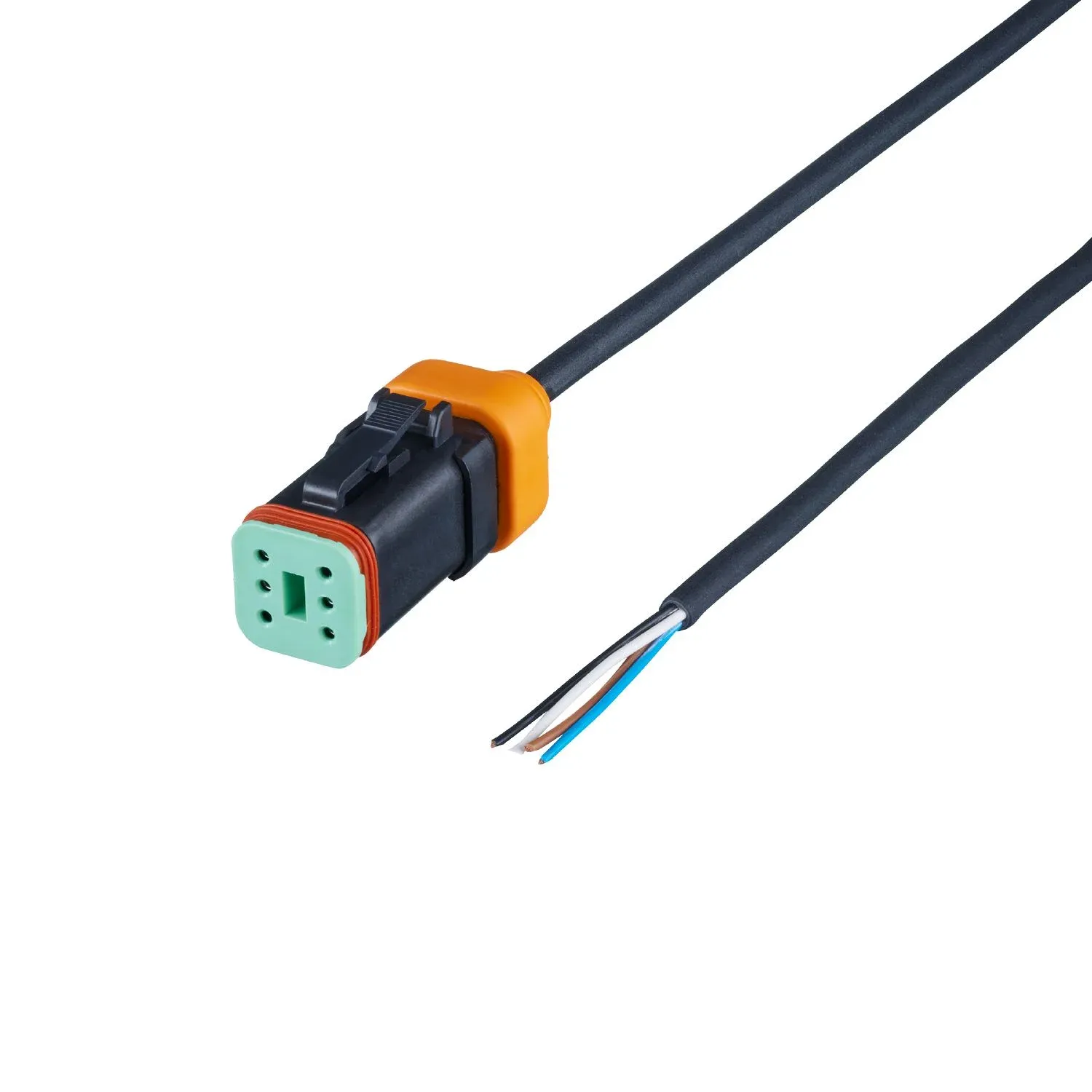

IFM E12797
E12797
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For use in mobile machines and vehicles
Wide operating temperature range
DEUTSCH connector for the fast and easy connection to the on-board system
High protection rating for the requirements of harsh industrial environments
PUR cable with good drag chain suitability
Specification
Application
| Special feature | Free from silicone; Drag chain suitability |
|---|---|
| Application | Industrial applications / factory automation; Use in machine tools, coolants and lubricants |
| Free from silicone | yes |
Electrical data
| Operating voltage[V] [V] | 8...32 DC |
|---|---|
| Protection class | III |
| Max. current load total[A] [A] | 4 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...80 |
|---|---|
| Ambient temperature (moving)[°C] [°C] | -20...80 |
| Protection | IP 67; (mating connector plugged in) |
Mechanical data
| Weight[g] [g] | 118 |
|---|---|
| Materials | PA |
| Moulded-body material | TPU |
| Drag chain suitability | bending radius for flexible use min. 10 x cable diameter travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² bending cycles > 5 Mio. torsional strain ± 180 °/m |
| bending radius for flexible use | min. 10 x cable diameter |
| travel speed | max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² |
| bending cycles | > 5 Mio. |
| torsional strain | ± 180 °/m |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 2 m, PUR, black, Ø 5.4 mm; 4 x 0.50 mm² (28 x Ø 0.15 mm ) |
|---|
Electrical connection - socket
| Connector | 1 x DEUTSCH connector, straight; Moulded body: TPU, orange |
|---|
