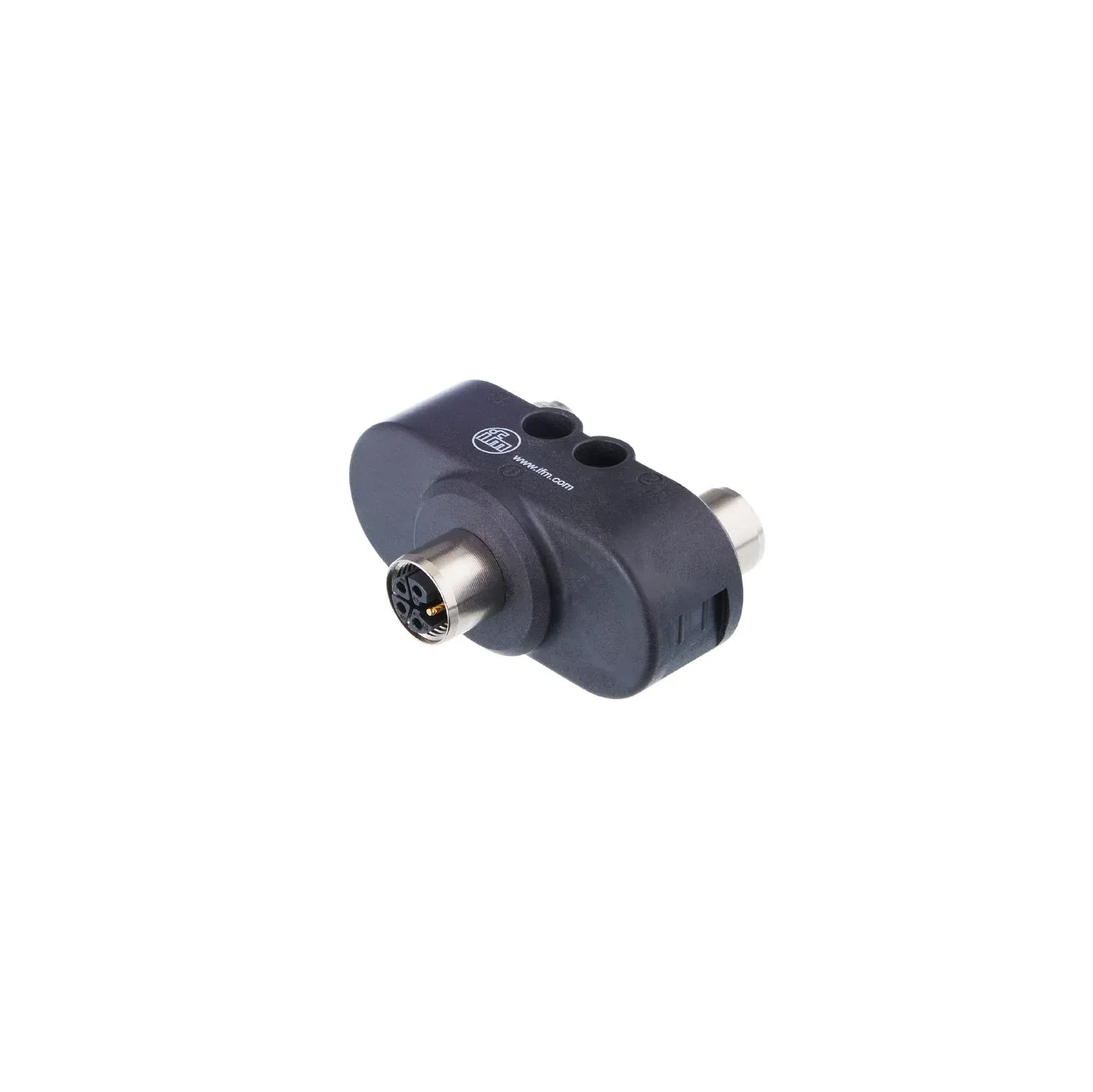

IFM E12788
E12788
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Resistant to oils and coolants
Gold-plated contacts for reliable electrical connections
High protection rating for the requirements of harsh industrial environments
High power transmission thanks to high current rating
Specification
Application
| Special feature | Gold-plated contacts |
|---|
Electrical data
| Operating voltage[V] [V] | < 63 DC |
|---|---|
| Protection class | III |
| Max. current load total[A] [A] | 16; (40 °C) |
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Protection | IP 65 |
Mechanical data
| Weight[g] [g] | 99.95 |
|---|---|
| Materials | housing: PBT |
| Material nut | brass, nickel-plated |
| Sealing material | HNBR |
Accessories
| Items supplied | labels: 2 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12; coding: L; Moulded body: black; Locking: brass, nickel-plated; Contacts: gold-plated |
|---|
Electrical connection - socket
| Connector | 2 x M12; coding: L; Moulded body: black; Locking: brass, nickel-plated; Sealing: HNBR; Contacts: gold-plated |
|---|
