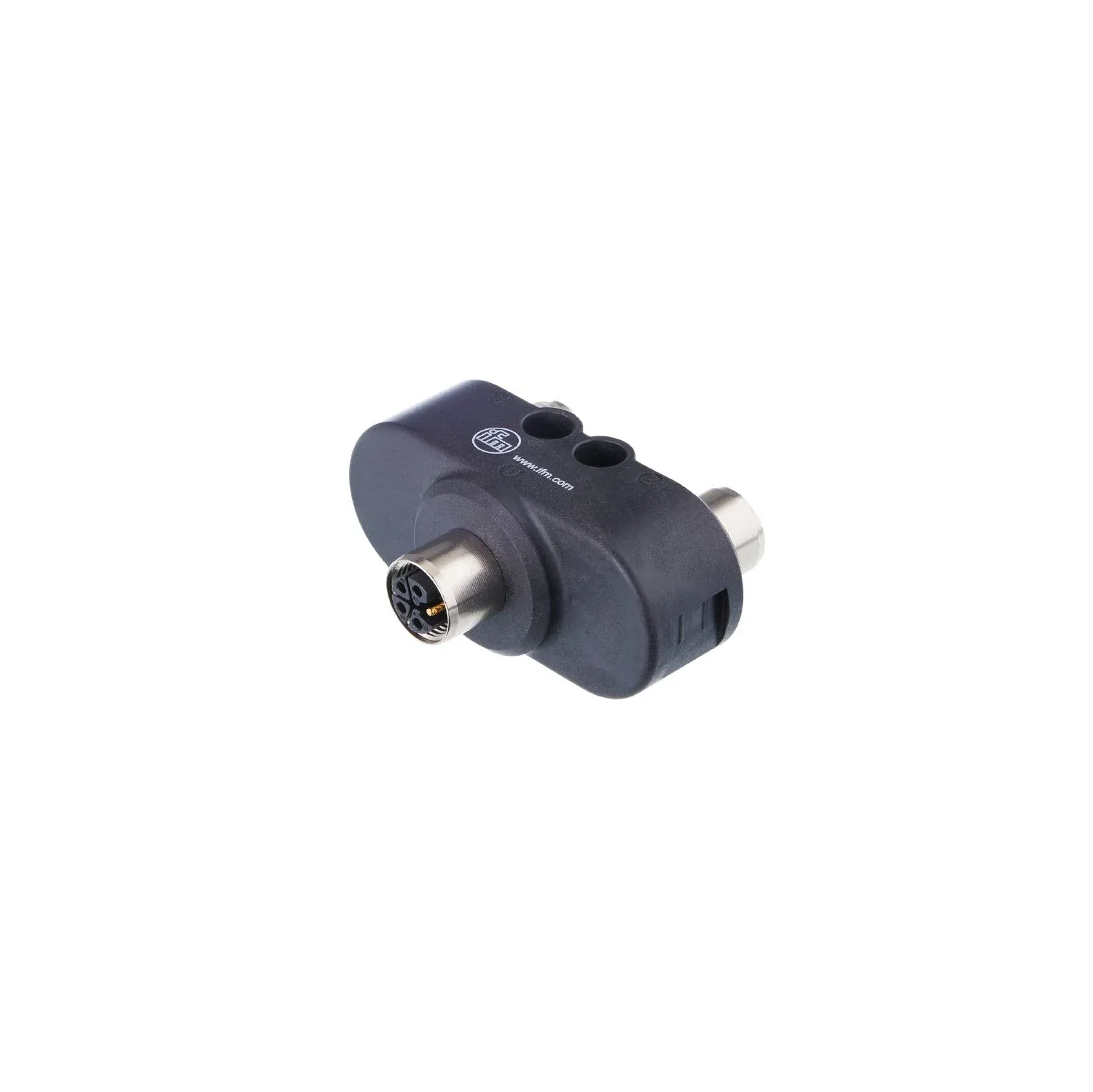

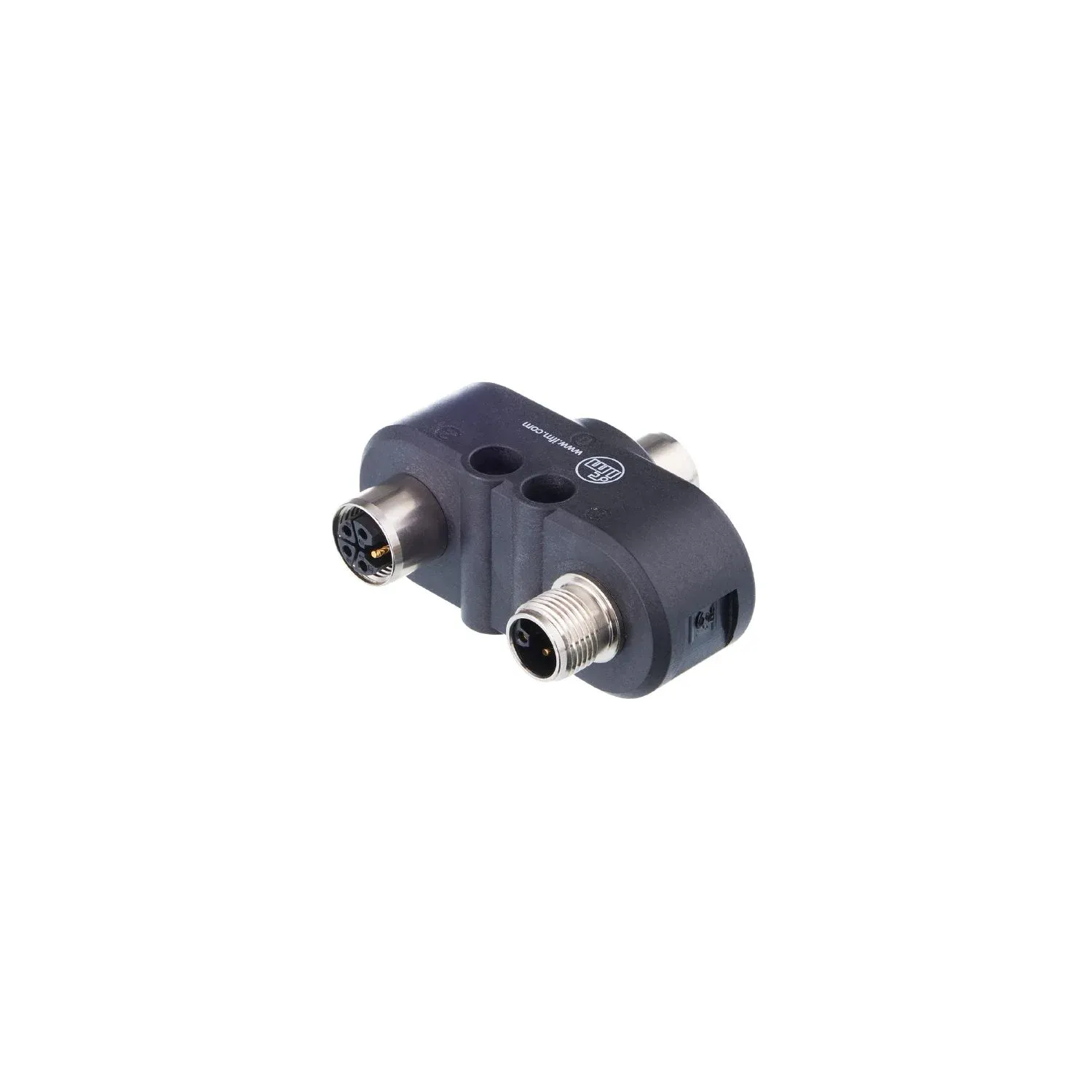

IFM E12787
E12787
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Resistant to oils and coolants
Gold-plated contacts for reliable electrical connections
High protection rating for the requirements of harsh industrial environments
High power transmission thanks to high current rating
Actuator supply (UA) branching from the daisy chain power supply
Specification
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | actuator supply (UA) branching |
Electrical data
| Operating voltage[V] [V] | < 63 DC |
|---|---|
| Protection class | III |
| Max. current load total[A] [A] | 16; (40 °C) |
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Protection | IP 65 |
Mechanical data
| Weight[g] [g] | 99.35 |
|---|---|
| Moulded-body material | PBT |
| Material nut | brass, nickel-plated |
| Sealing material | HNBR |
Accessories
| Items supplied | labels: 2 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12; coding: L; Moulded body: PBT, black; Locking: brass, nickel-plated; Contacts: gold-plated |
|---|
Electrical connection - socket
| Connector | 2 x M12; coding: L; Moulded body: PBT, black; Locking: brass, nickel-plated; Sealing: HNBR; Contacts: gold-plated |
|---|
