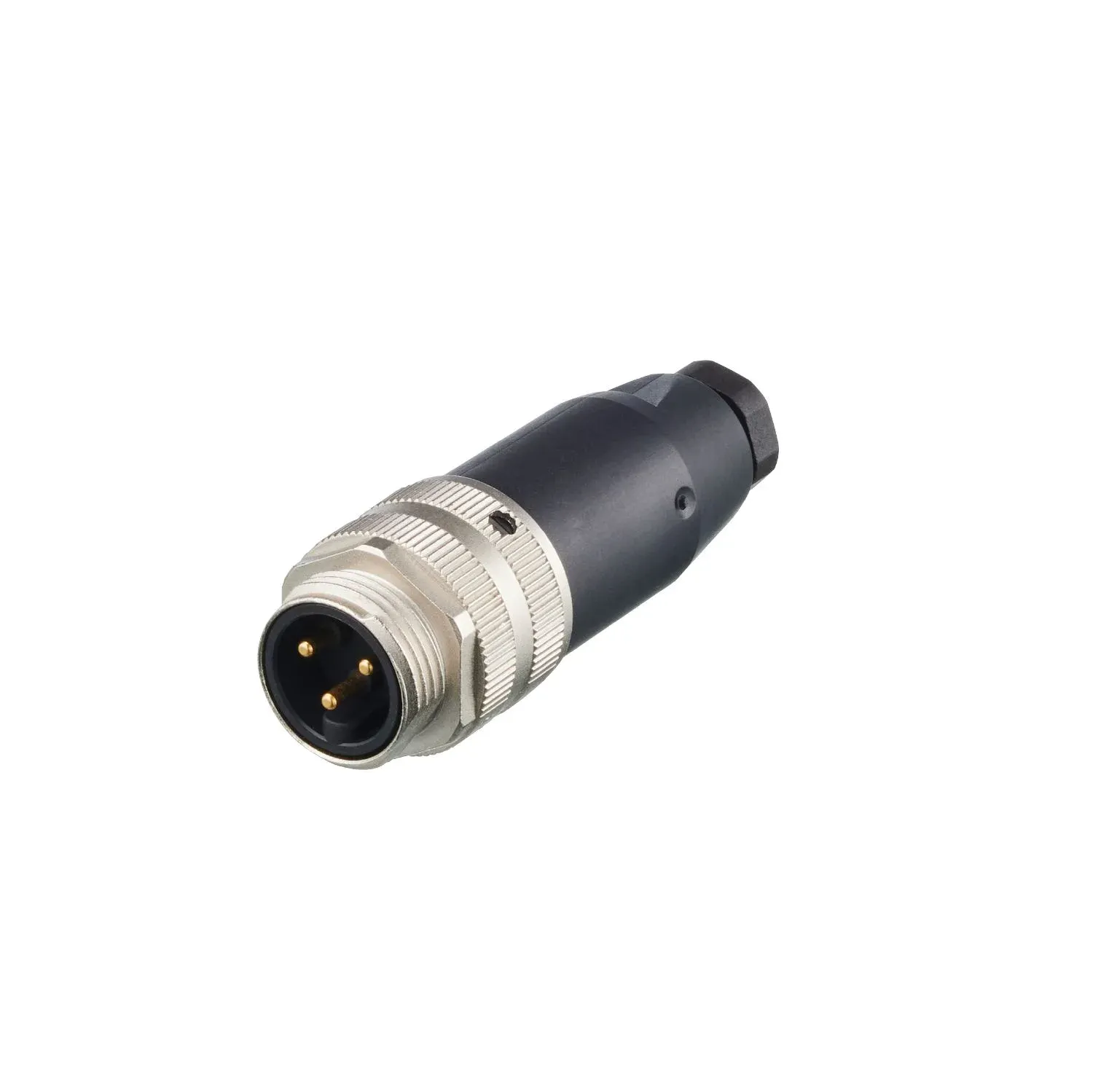

IFM E12775
E12775
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Large cable cross-section for reducing the voltage drop and transferring higher currents
Resistant to oils and coolants
Specification
Application
| Special feature | Gold-plated contacts |
|---|
Electrical data
| Operating voltage[V] [V] | < 300 AC/DC |
|---|---|
| Protection class | II |
| Max. current load total[A] [A] | 12 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...85 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight[g] [g] | 51.9 |
|---|---|
| Moulded-body material | PBT |
| Material nut | diecast zinc, nickel-plated |
Remarks
| Remarks | pin 1 leading |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| screw terminals | ...1.5 mm²; Cable sheath: Ø 6...8 mm; AWG 16 |
|---|
Electrical connection - plug
| Connector | 1 x 7/8", straight; Moulded body: PBT; Locking: diecast zinc, nickel-plated; Contacts: gold-plated |
|---|
