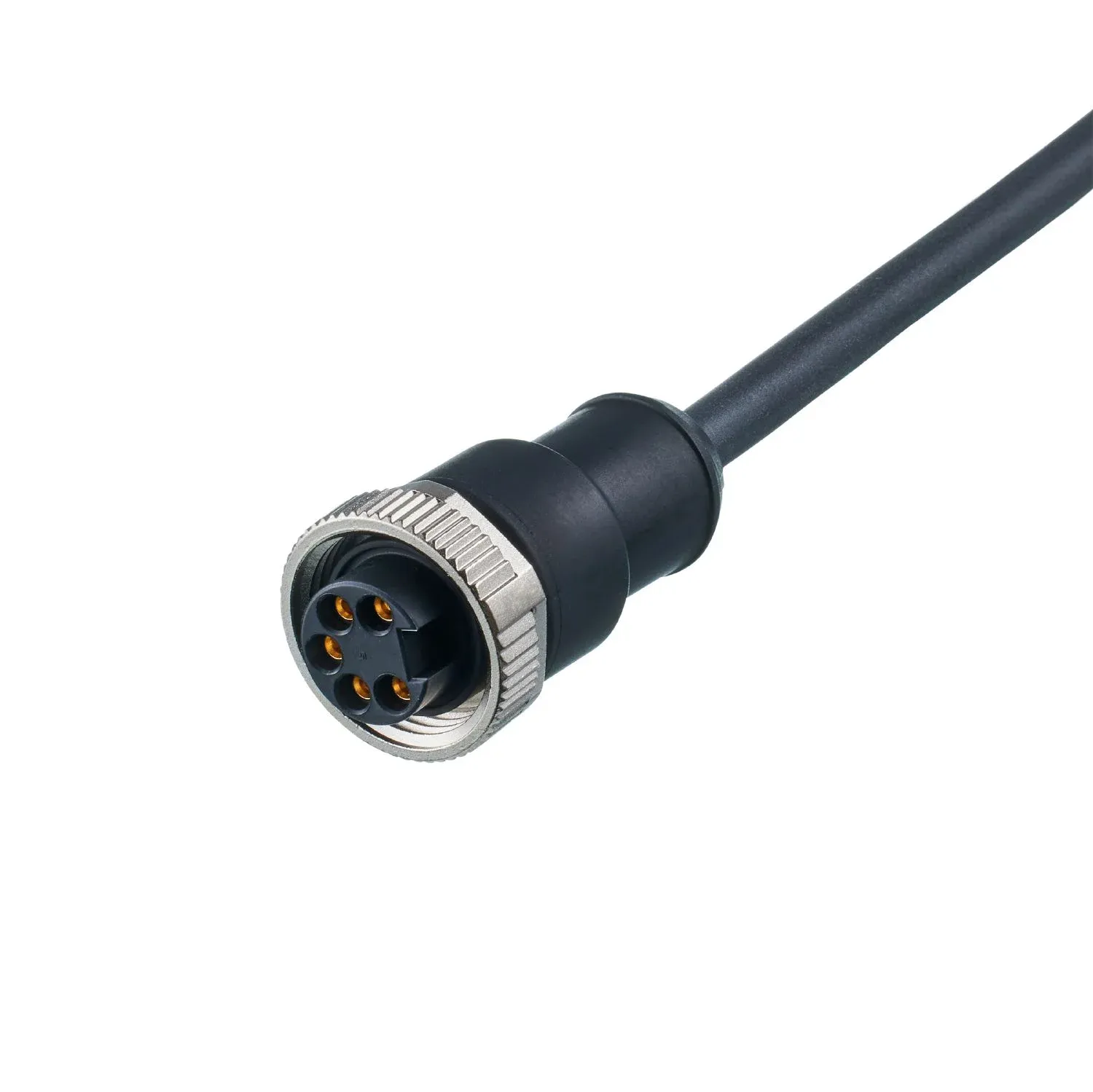

IFM E12773
E12773
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Large cable cross-section for reducing the voltage drop and transferring higher currents
Resistant to oils and coolants
Specification
Application
| Special feature | Gold-plated contacts; Drag chain suitability |
|---|---|
| Application | Industrial applications / factory automation |
Electrical data
| Operating voltage[V] [V] | < 400 AC/DC |
|---|---|
| Protection class | II |
| Max. current load total[A] [A] | 5 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight[g] [g] | 390 |
|---|---|
| Dimensions[mm] [mm] | 26 x 26 x 49.9 |
| Moulded-body material | PUR |
| Material nut | diecast zinc |
| Drag chain suitability | bending radius for flexible use min. 7.5 x cable diameter travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² bending cycles > 5 Mio. |
| bending radius for flexible use | min. 7.5 x cable diameter |
| travel speed | max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² |
| bending cycles | > 5 Mio. |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 5 m, PUR, black, Ø 7.3 mm; 5 x 0.75 mm² |
|---|
Electrical connection - socket
| Connector | 1 x 7/8", straight; Moulded body: PUR; Locking: diecast zinc; Contacts: gold-plated |
|---|
