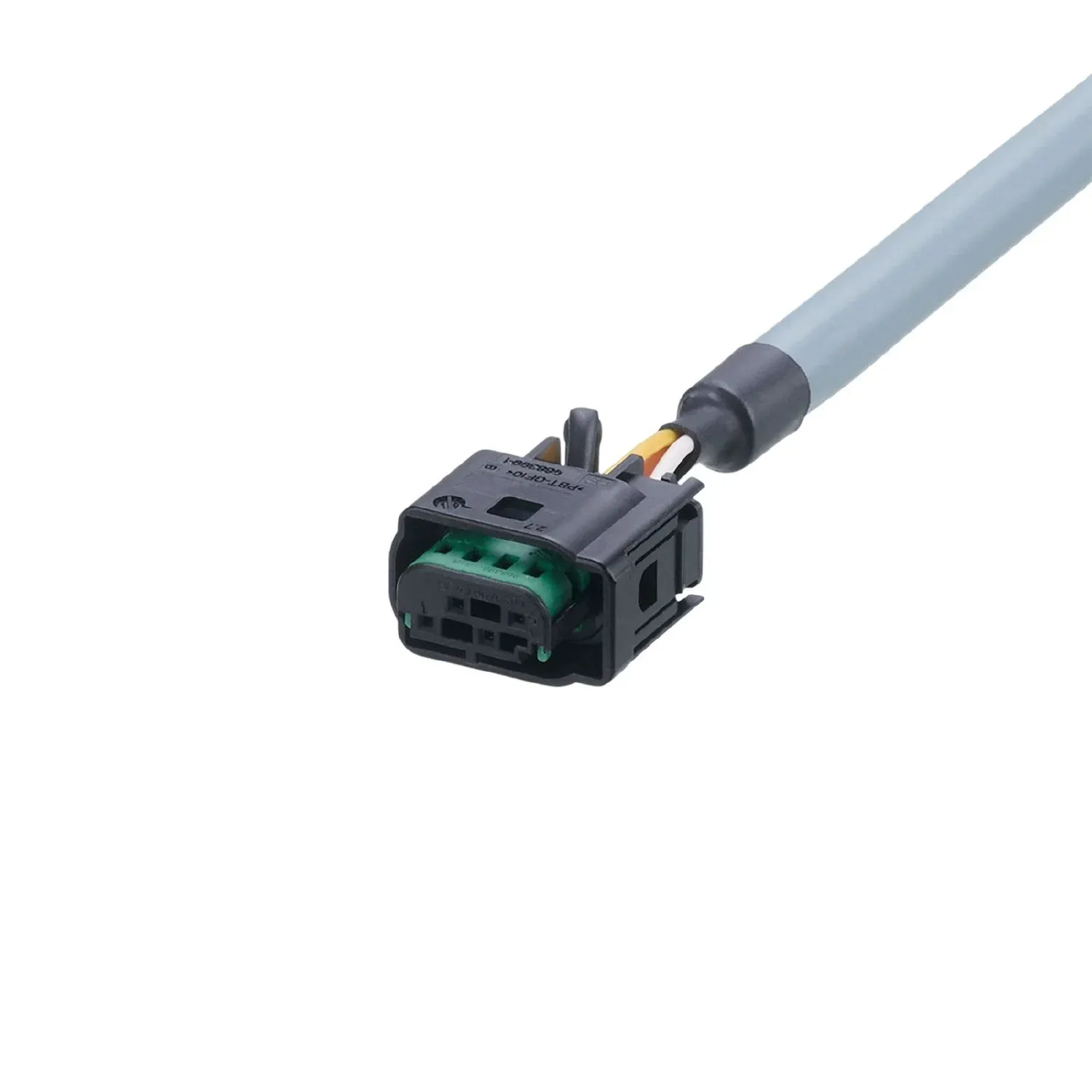

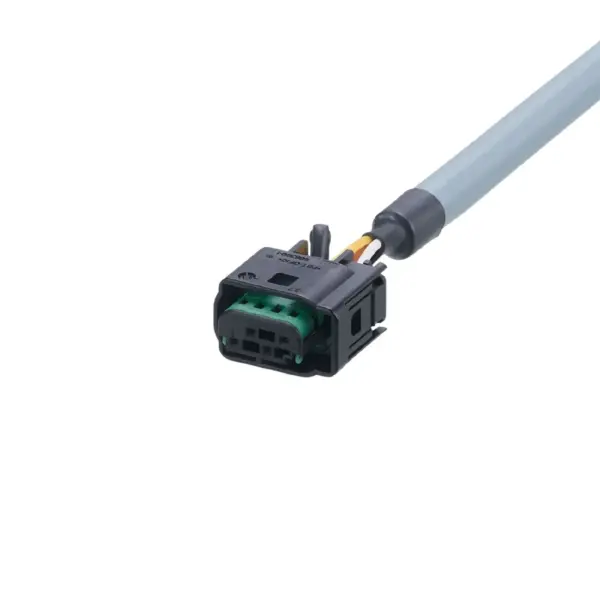

IFM E12736
E12736
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Suited for use in mobile machines
Lockable connector with reverse polarity protection
Specification
Application
| Special feature | Screened cable |
|---|---|
| Application | for mobile applications |
Electrical data
| Operating voltage[V] [V] | 8...32 DC |
|---|---|
| Protection class | III |
| Max. current load total[A] [A] | 4 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...80 |
|---|---|
| Protection | IP 20; (without resistor) |
Mechanical data
| Weight[g] [g] | 456.4 |
|---|---|
| Dimensions[mm] [mm] | 89.5 x 33.4 x 47.3 |
| Materials | housing: PBT-GF20 |
| Moulded-body material | PBT |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 5 m, PUR, grey, Ø 8.3 mm, shielded; 2 x 0.5 mm² (twisted pairs ) |
|---|---|
| Connector | AMP MQS, straight; Moulded body: PBT; Contacts: tin-plated |
