IFM E12674
E12674
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

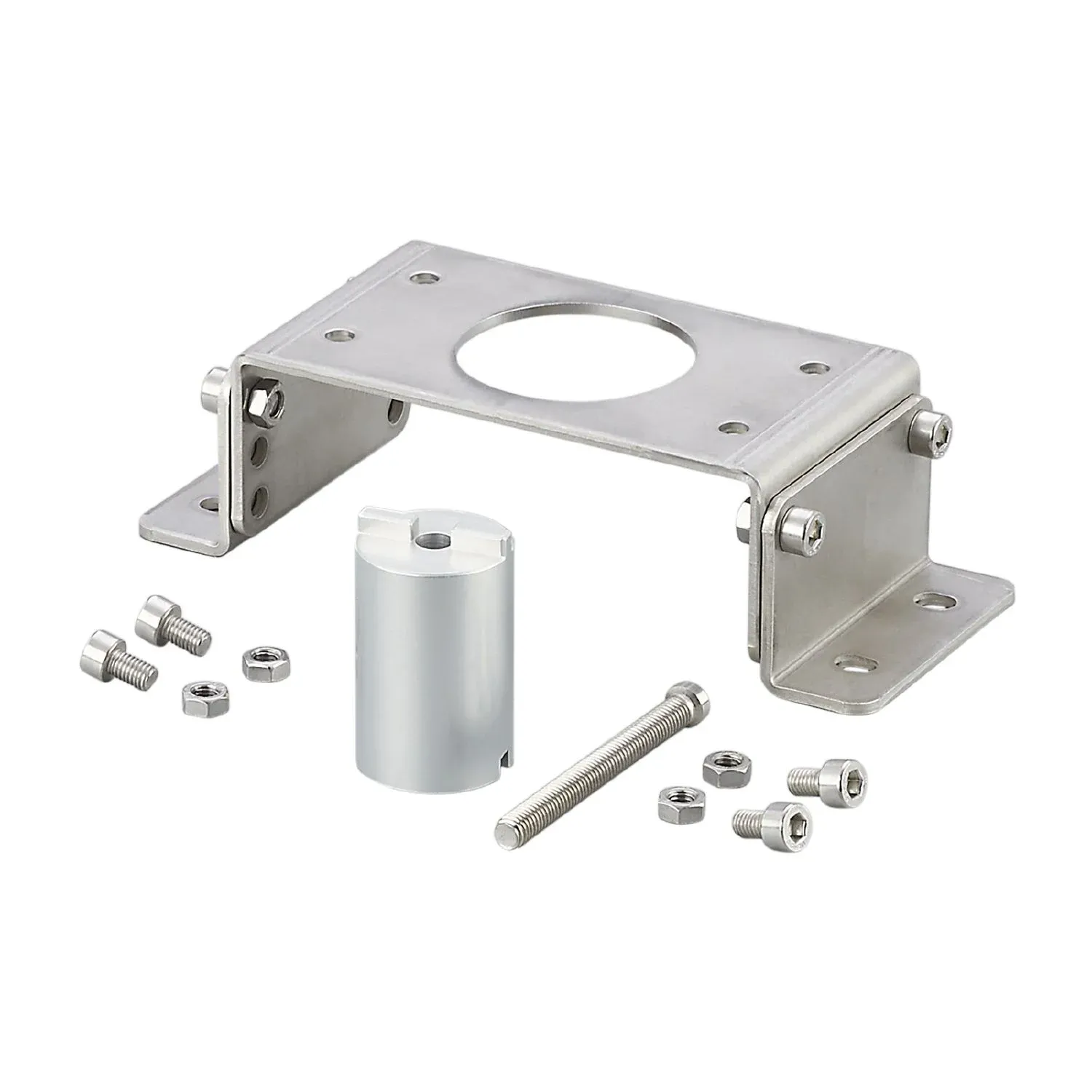

Adjustment of the MVQ’s mounting position to shafts with a height of 30 / 40 / 50 mm
Quick and easy mounting and fixing
Specification
Application
| Design | for mechanical interfaces to pneumatic actuators VDI / VDE 3845 |
|---|
Mechanical data
| Weight[g] [g] | 471.5 |
|---|---|
| Hole spacing for mounting bracket | 80 x 30 / 130 x 30 mm |
| Shaft height for valve drive | 20 / 30 / 40 mm |
| Suitable for shaft diameters[mm] [mm] | > 38 |
| Materials | mounting bracket: stainless steel (316L/1.4404); shaft adapter: aluminium |
Accessories
| Items supplied | socket head screw: 1 x (M6 x 60 mm), stainless steel socket head screws: 8 x (M5 x 8 mm), stainless steel hexagon nuts: 8 x M5, stainless steel |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
