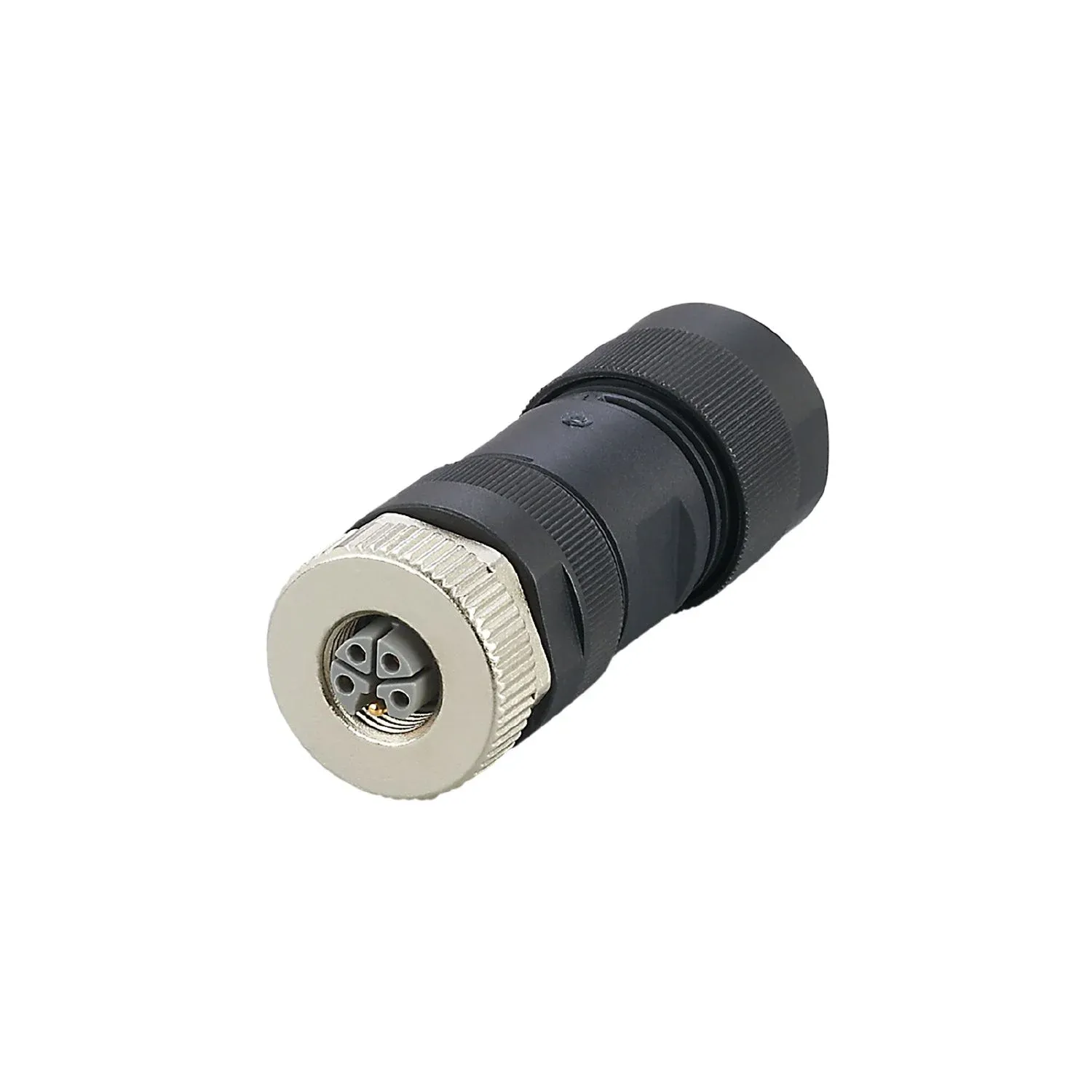

IFM E12672
E12672
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Gold-plated contacts for reliable electrical connections
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Safe cable connection with screw terminals
Specification
Application
| Special feature | Gold-plated contacts |
|---|---|
| Design | L-coded |
Electrical data
| Operating voltage[V] [V] | < 63 DC |
|---|---|
| Max. current load total[A] [A] | 16 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight[g] [g] | 53.2 |
|---|---|
| Dimensions[mm] [mm] | 20 x 20 x 58 |
| Moulded-body material | PA |
| Material nut | diecast zinc, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| screw terminals | 1.5...2.5 mm²; Cable sheath: Ø 8...13 mm; max. 1.5 with wire end ferrules |
|---|
Electrical connection - socket
| Connector | 1 x M12, straight; coding: L; Moulded body: PA; Locking: diecast zinc, nickel-plated; Contacts: gold-plated |
|---|
