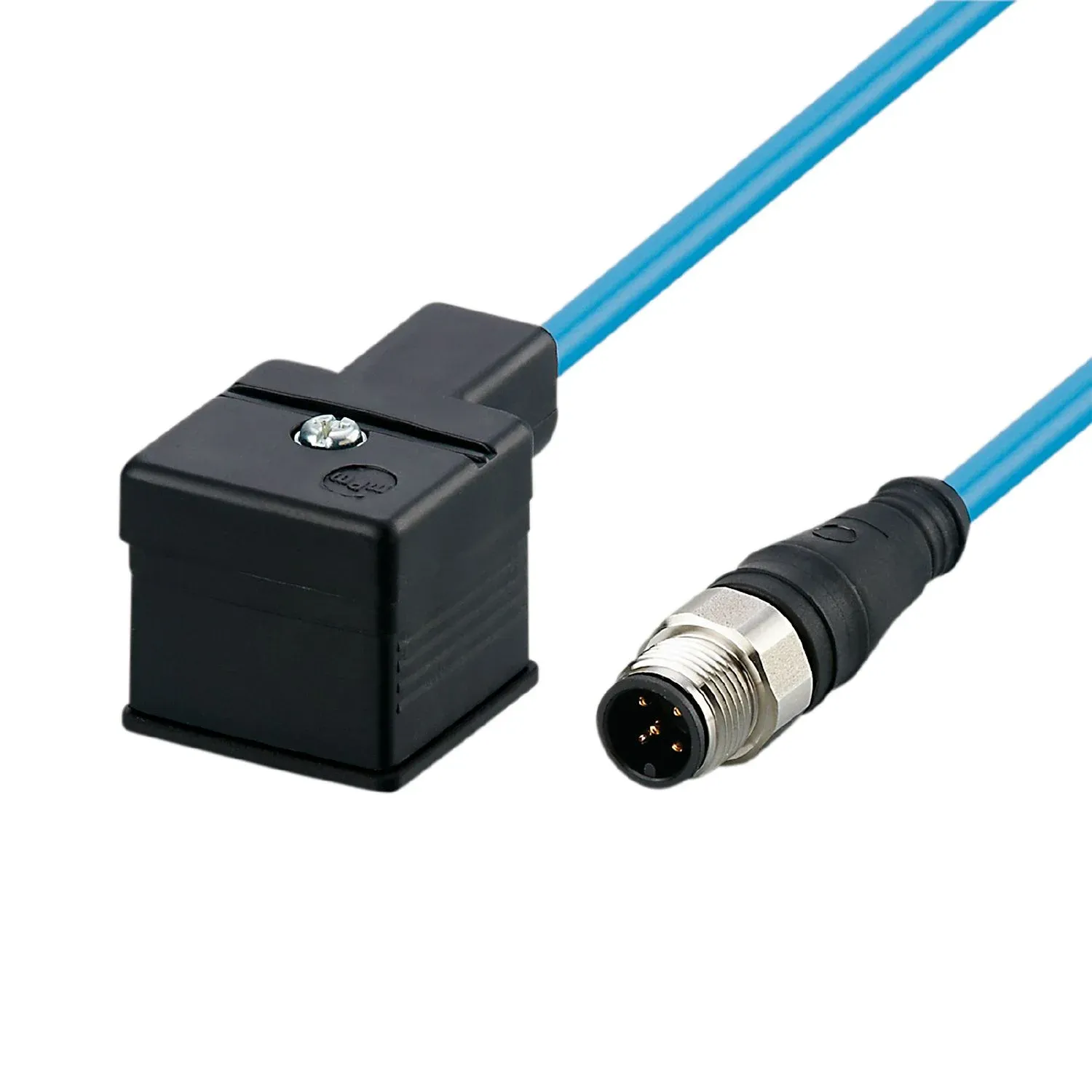

IFM E12509
E12509
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable connection of valves in the field
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
For applications in hazardous areas
Robust rectangular connector
Specification
Application
| Application | NAMUR |
|---|
Electrical data
| Operating voltage[V] [V] | < 30 DC |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...90 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight[g] [g] | 62.9 |
|---|---|
| Materials | TPU; PUR |
| Moulded-body material | TPU / PUR |
| Material nut | stainless steel (316L/1.4404) |
Accessories
| Items supplied | screw: 1 panel for labelling: 1 |
|---|
Remarks
| Remarks | For use in zone 0, group IIB or IIC the user has to avoid intensive electrostatic charge build-up at the sockets. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connector | 1 x M12, straight; coding: A; Moulded body: TPU / PUR; Locking: stainless steel (316L/1.4404) |
|---|
Electrical connection
| Cable | 0.6 m, PVC, blue, Ø 5.1 mm; 2 x 0.5 mm² |
|---|
Electrical connection - socket
| Connector | 1 x valve type A DIN (EN 175301-803), angled; Moulded body: TPU / PUR; Locking: stainless steel (316L/1.4404) |
|---|
