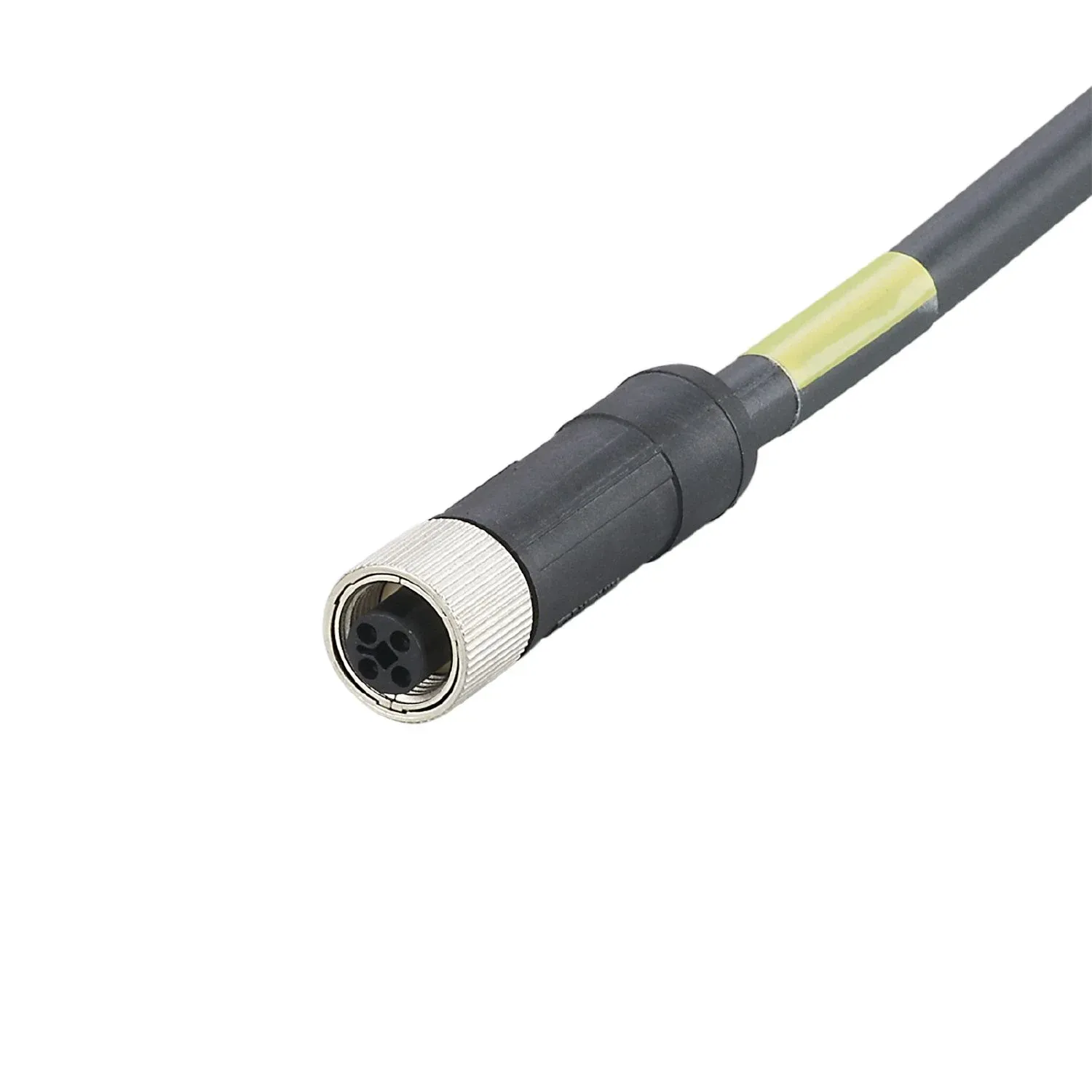

IFM E12496
E12496
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Gold-plated contacts for reliable electrical connections
Permanent, reliable sealing even when mounted without tools
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
High power transmission thanks to high current rating
Specification
Application
| Special feature | Gold-plated contacts |
|---|---|
| Design | power cable, T-coded |
| Application | Industrial applications / factory automation |
Electrical data
| Operating voltage[V] [V] | < 60 DC |
|---|---|
| Max. current load total[A] [A] | 12 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...85 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight[g] [g] | 1093.5 |
|---|---|
| Dimensions[mm] [mm] | 15.4 x 15.4 x 52.8 |
| Materials | PP |
| Moulded-body material | TPU |
| Material nut | diecast zinc, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 10 m, PUR, black, Ø 6.75 mm; 4 x 1.5 mm² |
|---|
Electrical connection - socket
| Connector | 1 x M12, straight; coding: T; Moulded body: TPU; Locking: diecast zinc, nickel-plated; Contacts: gold-plated |
|---|
