IFM E12454
E12454
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

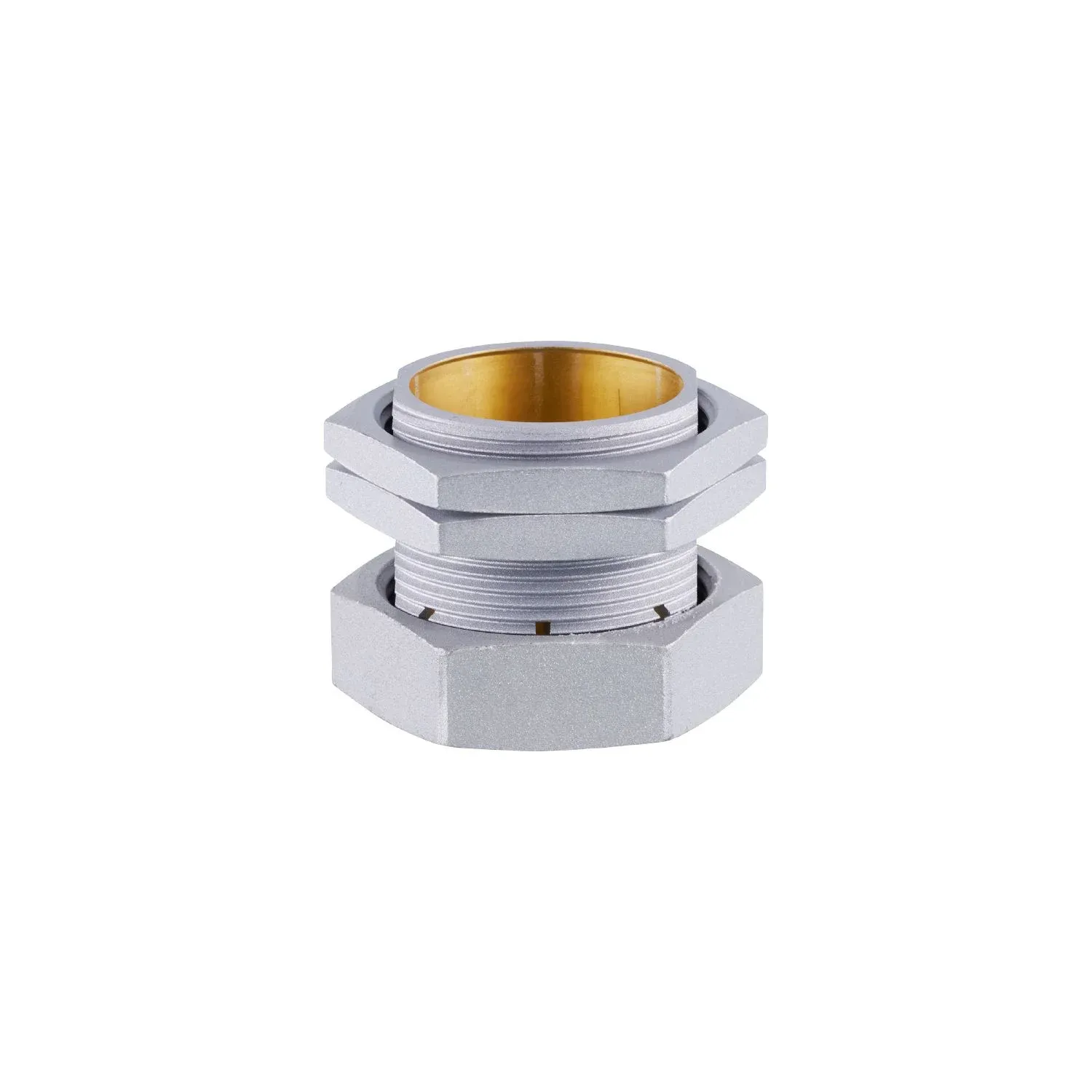

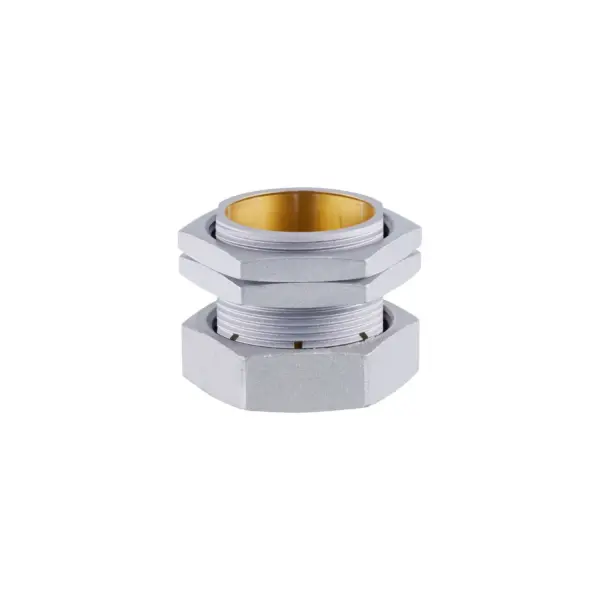

End stop for defined installation position
For mounting cylindrical sensors
Easy and quick replacement without readjustment
Reliable protection against damage
Resistant to weld slag thanks to non-stick coating
Specification
Application
| Design | with end stop |
|---|
Mechanical data
| Weight[g] [g] | 118.5 |
|---|---|
| Installation instruction | align the sensing face of the sensor to the right (see scale drawing); due to the material brass, negative sensing range reductions may occur (reduced sensing range) |
| Dimensions[mm] [mm] | M36 x 1.5 / L = 33.5 |
| Thread designation | M36 x 1.5 |
| Inside diameter[mm] [mm] | 30 |
| Materials | brass anti-spatter; Nuts: brass anti-spatter |
| Tightening torque[Nm] [Nm] | 7; (lock nuts: 20) |
Accessories
| Items supplied | Nuts: 2 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
