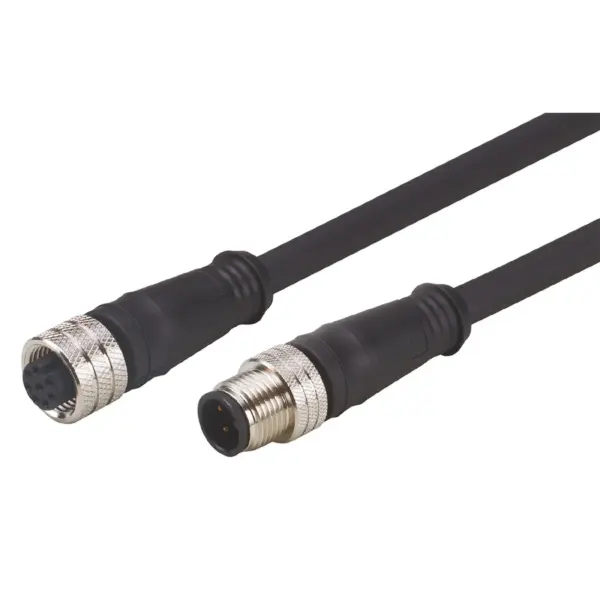

IFM E12432
E12432
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
High protection rating for the requirements of harsh industrial environments
Permanent, reliable sealing even when mounted without tools
Wide operating temperature range
Specification
Application
| Special feature | Halogen-free |
|---|
Electrical data
| Operating voltage[V] [V] | < 30 AC / < 36 DC |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight[g] [g] | 51 |
|---|---|
| Moulded-body material | PUR |
| Material nut | brass, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Tightening torque: 0.7...0.9 Nm |
|---|
Electrical connection
| Cable | 0.3 m, PUR, Halogen-free, black, Ø 6.8 mm; 3 x 0.25 mm² |
|---|
Electrical connection - socket
| Connector | 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Tightening torque: 0.7...0.9 Nm |
|---|
