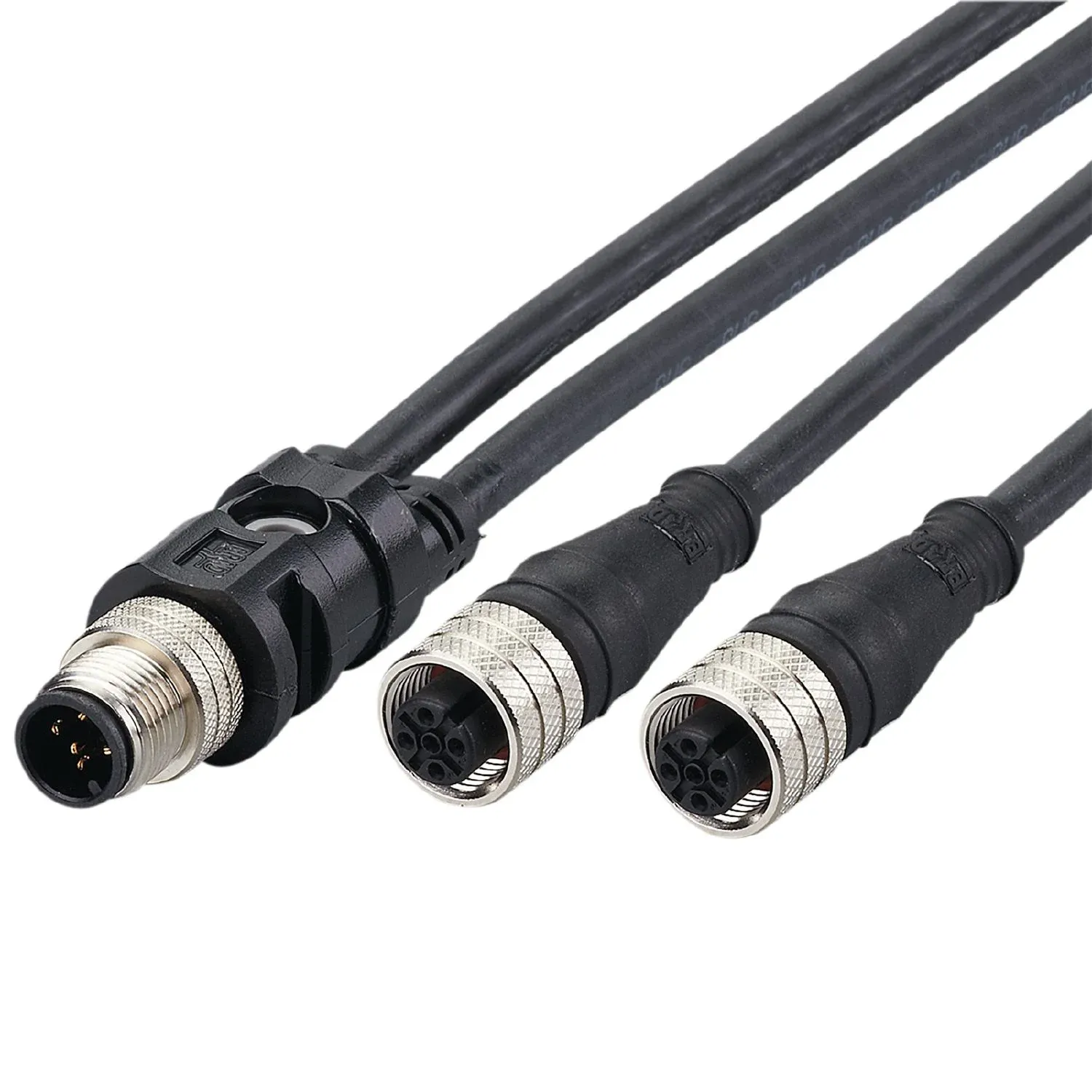

IFM E12405
E12405
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For safe electrical connections
Permanent, reliable sealing even when mounted without tools
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Specification
Application
| Special feature | Halogen-free |
|---|
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Max. current load total[A] [A] | 4 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...90 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight[g] [g] | 65 |
|---|---|
| Moulded-body material | TPU |
| Material nut | brass, nickel-plated |
| Number of ports splitter box | 2 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug C
| Connector | 1 x M12, straight; coding: A; Moulded body: TPU; Locking: brass, nickel-plated |
|---|
Electrical connection - socket A
| Cable | 0.25 m, PUR, Halogen-free, black, Ø 5.0 mm; 5 x 0.25 mm² (32 x Ø 0.1 mm ) |
|---|---|
| Connector | 1 x M12, straight; coding: A; Moulded body: TPU; Locking: brass, nickel-plated |
Electrical connection - socket B
| Cable | 0.25 m, PUR, Halogen-free, black, Ø 5.0 mm; 5 x 0.25 mm² (32 x Ø 0.1 mm ) |
|---|---|
| Connector | 1 x M12, straight; coding: A; Moulded body: TPU; Locking: brass, nickel-plated |
