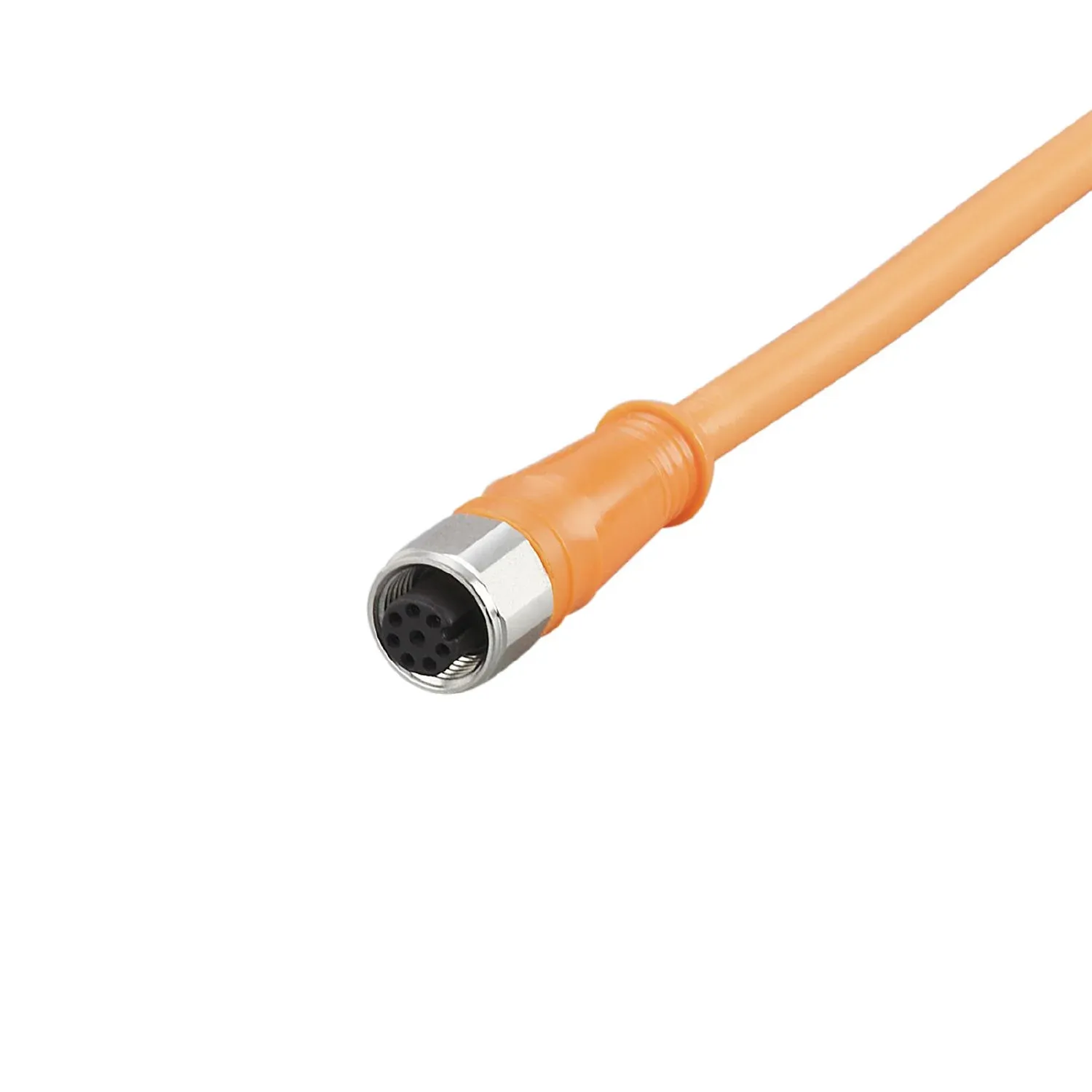

IFM E12344
E12344
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
8-pole connection
High protection rating for the requirements of the food and beverage industry
Gold-plated contacts for reliable electrical connections
Permanent, reliable sealing even when mounted without tools
Wide operating temperature range
Specification
Application
| Special feature | Free from silicone; Gold-plated contacts |
|---|---|
| Application | Industrial applications / factory automation |
| Free from silicone | yes |
Electrical data
| Operating voltage[V] [V] | < 30 AC / < 36 DC |
|---|---|
| Max. current load total[A] [A] | 2 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...100 |
|---|---|
| Protection | IP 68; IP 69K |
Mechanical data
| Weight[g] [g] | 1555.5 |
|---|---|
| Dimensions[mm] [mm] | 15 x 15 x 46 |
| Moulded-body material | PVC |
| Material nut | stainless steel (316L/1.4404) |
| Sealing material | EPDM |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 25 m, PVC, orange, Ø 5.9 mm; 8 x 0.25 mm² (32 x Ø 0.1 mm ) |
|---|
Electrical connection - socket
| Connector | 1 x M12, straight; coding: A; Moulded body: PVC; Locking: stainless steel (316L/1.4404); Sealing: EPDM; Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm |
|---|
