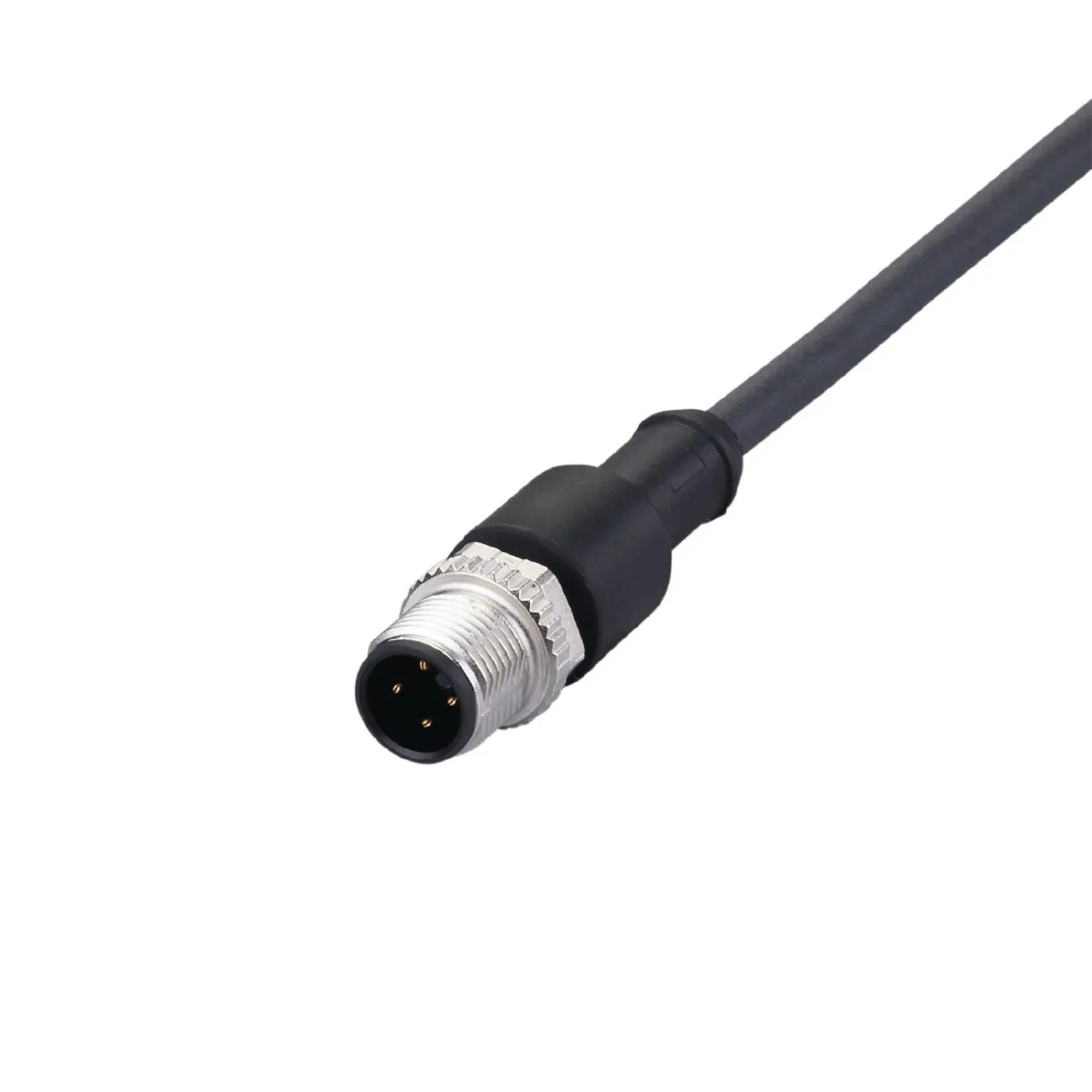

IFM E12333
E12333
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Good electromagnetic compatibility thanks to shielded cable
Permanent, reliable sealing even when mounted without tools
Gold-plated contacts for reliable electrical connections
Specification
Application
| Special feature | Free from silicone; Halogen-free; Gold-plated contacts; Screened cable |
|---|---|
| Application | Industrial applications / factory automation |
| Free from silicone | yes |
Electrical data
| Operating voltage[V] [V] | < 50 AC / < 60 DC |
|---|---|
| Protection class | III |
| Max. current load total[A] [A] | 4 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...90 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight[g] [g] | 386.2 |
|---|---|
| Dimensions[mm] [mm] | 14.5 x 14.5 x 48.4 |
| Moulded-body material | PUR |
| Material nut | diecast zinc, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 10 m, PUR, Halogen-free, black, Ø 5 mm, shielded; 4 x 0.34 mm² (42 x Ø 0.1 mm ) |
|---|
Electrical connection - plug
| Connector | 1 x M12, straight; coding: A; Moulded body: PUR; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm; Shielded connection cable: screen not connected |
|---|
