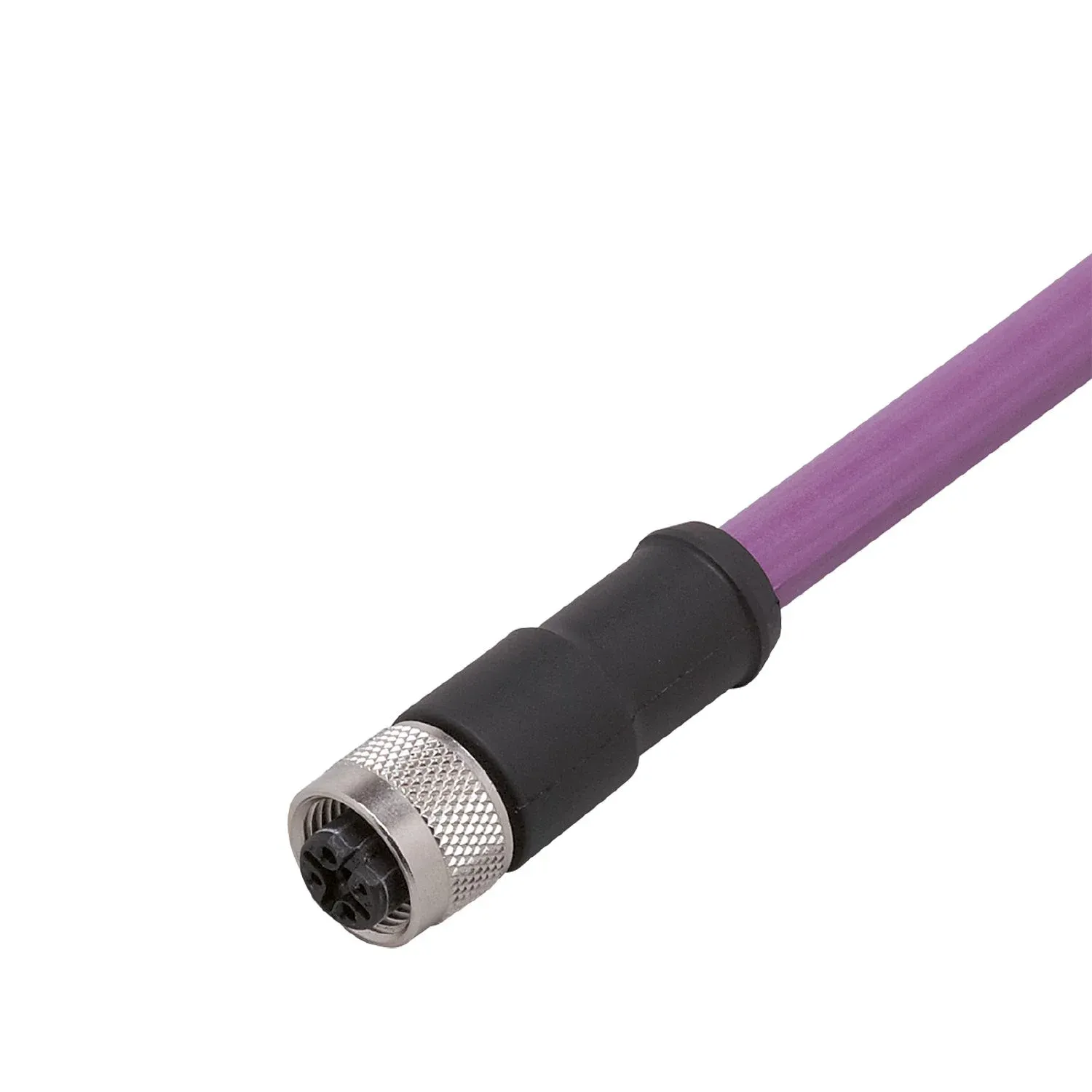

IFM E12320
E12320
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
High protection rating for the requirements of harsh industrial environments
Permanent, reliable sealing even when mounted without tools
Wide operating temperature range
Good electromagnetic compatibility thanks to shielded cable
Specification
Application
| Special feature | Halogen-free; Gold-plated contacts; Screened cable; Drag chain suitability |
|---|---|
| Application | applications in particularly harsh environments |
Electrical data
| Operating voltage[V] [V] | < 30 AC / < 36 DC |
|---|---|
| Max. current load total[A] [A] | 4; (...40 °C) |
Operating conditions
| Ambient temperature[°C] [°C] | -40...70 |
|---|---|
| Ambient temperature (moving)[°C] [°C] | -20...50 |
| Protection | IP 67 |
Mechanical data
| Weight[g] [g] | 145.4 |
|---|---|
| Dimensions[mm] [mm] | 14.5 x 14.5 x 43.9 |
| Moulded-body material | PUR |
| Material nut | brass, nickel-plated |
| Drag chain suitability | bending radius for flexible use min. 7.5 x cable diameter bending radius for fixed installation min. 10 x cable diameter travel speed max. 5.5 m/s for a horizontal travel length of 5m and max. acceleration of 10 m/s² bending cycles > 5 Mio. max. permissible tensile strength 50 N/mm² static 20 N/mm² dynamic |
| bending radius for flexible use | min. 7.5 x cable diameter |
| bending radius for fixed installation | min. 10 x cable diameter |
| travel speed | max. 5.5 m/s for a horizontal travel length of 5m and max. acceleration of 10 m/s² |
| bending cycles | > 5 Mio. |
| max. permissible tensile strength | 50 N/mm² static |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 2 m, PUR, Halogen-free, lilac, Ø 8 mm, shielded; 2 x 0.25 mm² |
|---|
Electrical connection - socket
| Connector | 1 x M12, straight; coding: B; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6 Nm; Shielded connection cable: screen connected |
|---|
