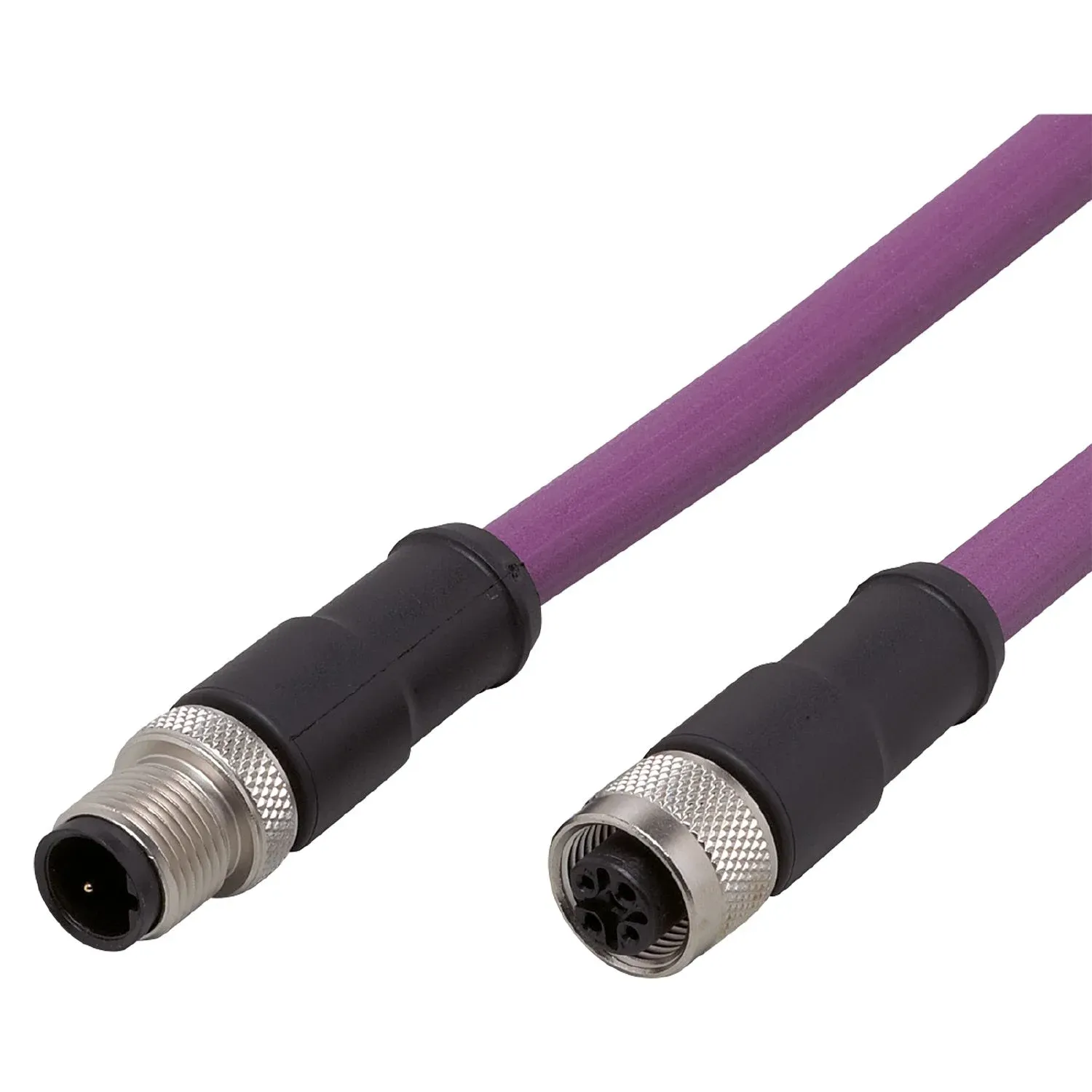

IFM E12317
E12317
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Good electromagnetic compatibility thanks to shielded cable
Gold-plated contacts for reliable electrical connections
Specification
Application
| Special feature | Halogen-free; Gold-plated contacts; Screened cable; Drag chain suitability |
|---|
Electrical data
| Operating voltage[V] [V] | < 30 AC / < 36 DC |
|---|---|
| Max. current load total[A] [A] | 4; (...40 °C) |
Operating conditions
| Ambient temperature[°C] [°C] | -40...70 |
|---|---|
| Ambient temperature (moving)[°C] [°C] | -20...50 |
| Protection | IP 67 |
Mechanical data
| Weight[g] [g] | 652.5 |
|---|---|
| Dimensions[mm] [mm] | 14.5 x 14.5 x 48.5 |
| Moulded-body material | PUR |
| Material nut | brass, nickel-plated |
| Drag chain suitability | bending radius for flexible use min. 7.5 x cable diameter bending radius for fixed installation min. 10 x cable diameter travel speed max. 5.5 m/s for a horizontal travel length of 5m and max. acceleration of 10 m/s² bending cycles > 5 Mio. max. permissible tensile strength 50 N/mm² static 20 N/mm² dynamic |
| bending radius for flexible use | min. 7.5 x cable diameter |
| bending radius for fixed installation | min. 10 x cable diameter |
| travel speed | max. 5.5 m/s for a horizontal travel length of 5m and max. acceleration of 10 m/s² |
| bending cycles | > 5 Mio. |
| max. permissible tensile strength | 50 N/mm² static |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12, straight; coding: B; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6 Nm; Shielded connection cable: screen connected |
|---|
Electrical connection
| Cable | 10 m, PUR, Halogen-free, lilac, shielded; 2 x 0.25 mm² |
|---|
Electrical connection - socket
| Connector | 1 x M12, straight; coding: B; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6 Nm; Shielded connection cable: screen connected |
|---|
