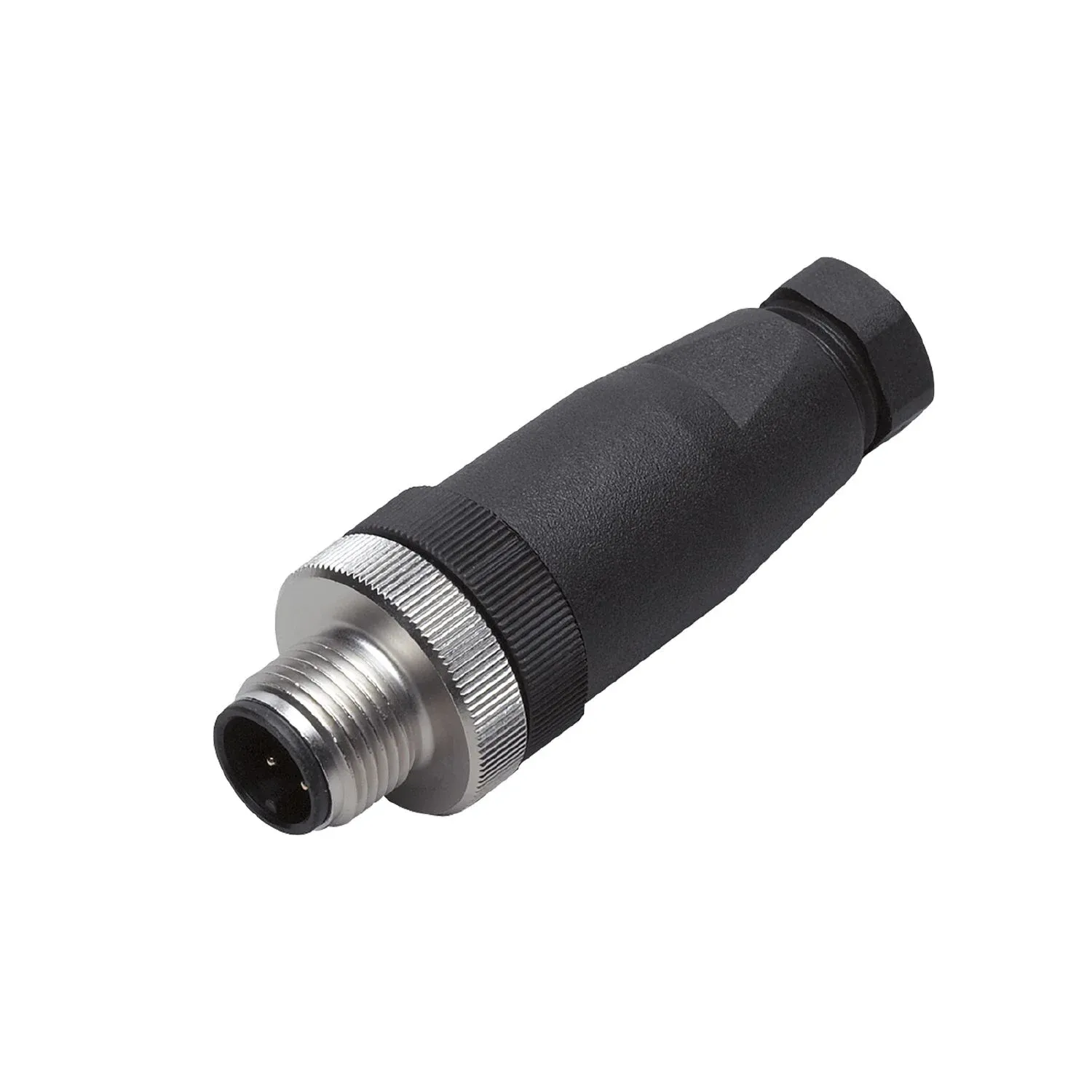

IFM E12266
E12266
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Gold-plated contacts for reliable electrical connections
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Safe cable connection with screw terminals
Specification
Application
| Special feature | Free from silicone; Gold-plated contacts |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage[V] [V] | < 45 AC / < 70 DC |
|---|---|
| Max. current load total[A] [A] | 4; (...40 °C) |
Operating conditions
| Ambient temperature[°C] [°C] | -25...85 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight[g] [g] | 24.9 |
|---|---|
| Dimensions[mm] [mm] | 20 x 20 x 52 |
| Moulded-body material | PA |
| Material nut | brass, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| screw terminals | ...0.75 mm²; Cable sheath: Ø 2.5...3.5 mm |
|---|
Electrical connection - plug
| Connector | 1 x M12, straight; coding: A; Moulded body: PA; Locking: brass, nickel-plated; Contacts: gold-plated |
|---|
