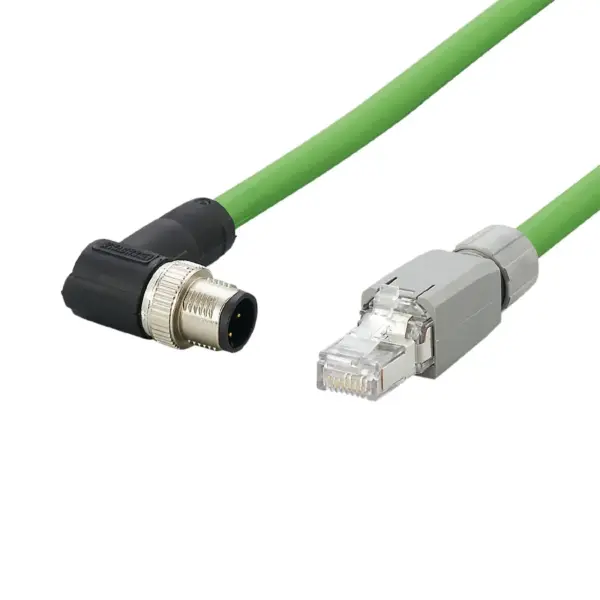

IFM E12226
E12226
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
High protection rating for the requirements of harsh industrial environments
With robust M12 connector Industrial Ethernet
Large operating temperature range and high protection rating
Good electromagnetic compatibility thanks to shielded cable
Specification
Application
| Special feature | Gold-plated contacts; Screened cable |
|---|---|
| Design | Ethernet cable, D-coded |
| Application | cross-over patch cable |
Electrical data
| Operating voltage[V] [V] | 48 AC / 60 DC |
|---|---|
| Protection class | III |
| Max. current load total[A] [A] | 1 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Protection | IP 65; IP 67; (M12 plug / RJ45 plug: IP 20) |
Mechanical data
| Weight[g] [g] | 161.6 |
|---|---|
| Moulded-body material | TPU / PA |
| Material nut | diecast zinc, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug M12
| Connector | 1 x M12, angled; coding: D; Moulded body: TPU, black; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Tightening torque: 0.4 Nm |
|---|
Electrical connection
| Cable | 2 m, PVC, green, Ø 6.5 mm, shielded; PROFINET; 4 x 0.34 mm² (7 x Ø 0.25 mm ) |
|---|
Electrical connection - plug RJ45
| Connector | 1 x RJ45, straight; Moulded body: PA; Contacts: gold-plated |
|---|
