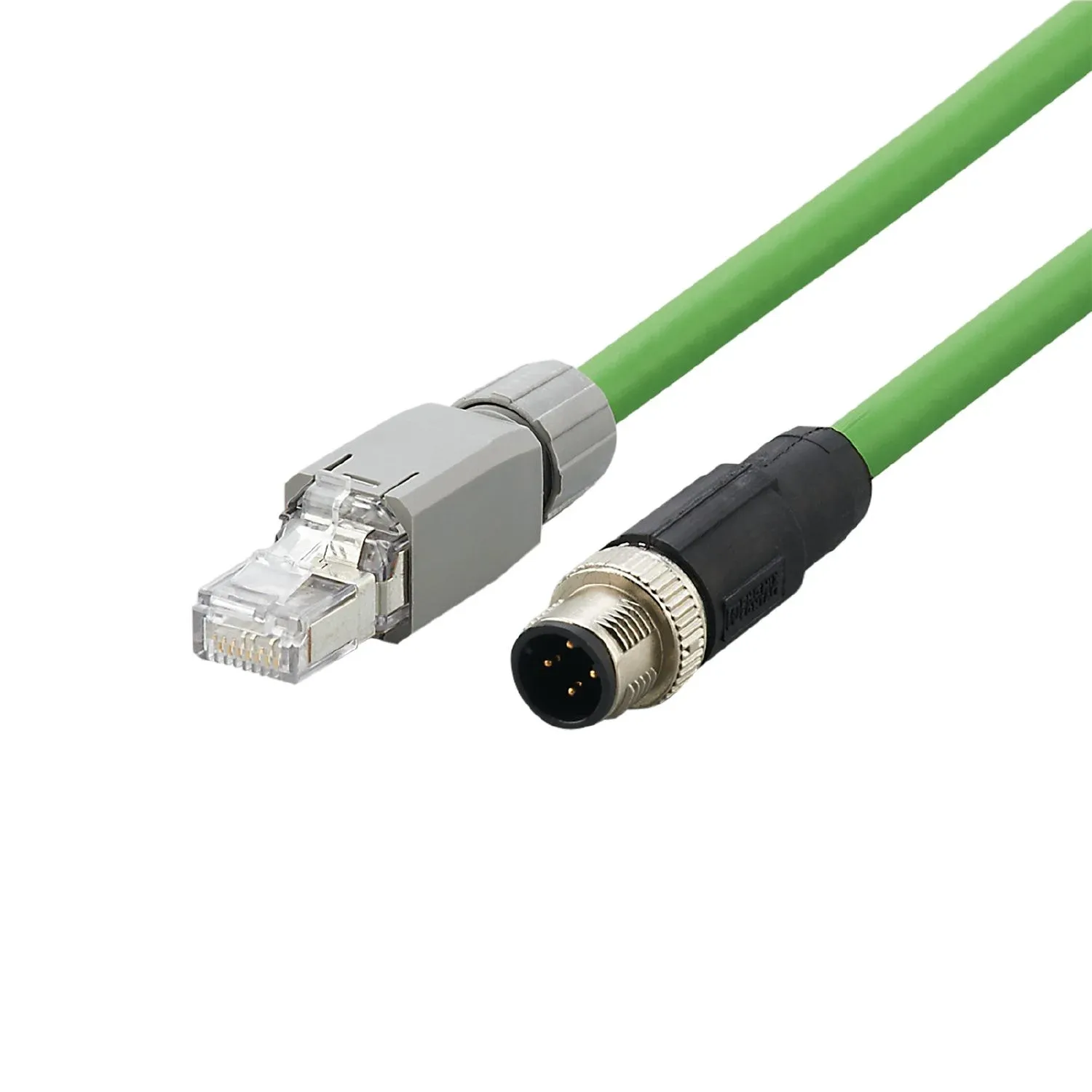

IFM E12204
E12204
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For connection to the parameter setting interface of the sensor
For reliable signal transmission
Specification
Application
| Special feature | Gold-plated contacts; Screened cable |
|---|---|
| Design | Ethernet cable, D-coded |
| Application | cross-over patch cable |
Electrical data
| Operating voltage[V] [V] | 48 AC / 60 DC |
|---|---|
| Protection class | III |
| Max. current load total[A] [A] | 1 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Protection | IP 65; IP 67; (M12 plug / RJ45 plug: IP 20) |
Mechanical data
| Weight[g] [g] | 698.5 |
|---|---|
| Moulded-body material | TPU / PA |
| Material nut | diecast zinc, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug M12
| Connector | 1 x M12, straight; coding: D; Moulded body: TPU, black; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Tightening torque: 0.4 Nm |
|---|
Electrical connection
| Cable | 10 m, PVC, green, Ø 6.5 mm, shielded; PROFINET; 4 x 0.34 mm² (7 x Ø 0.25 mm ) |
|---|
Electrical connection - plug RJ45
| Connector | 1 x RJ45, straight; Moulded body: PA; Contacts: gold-plated |
|---|
