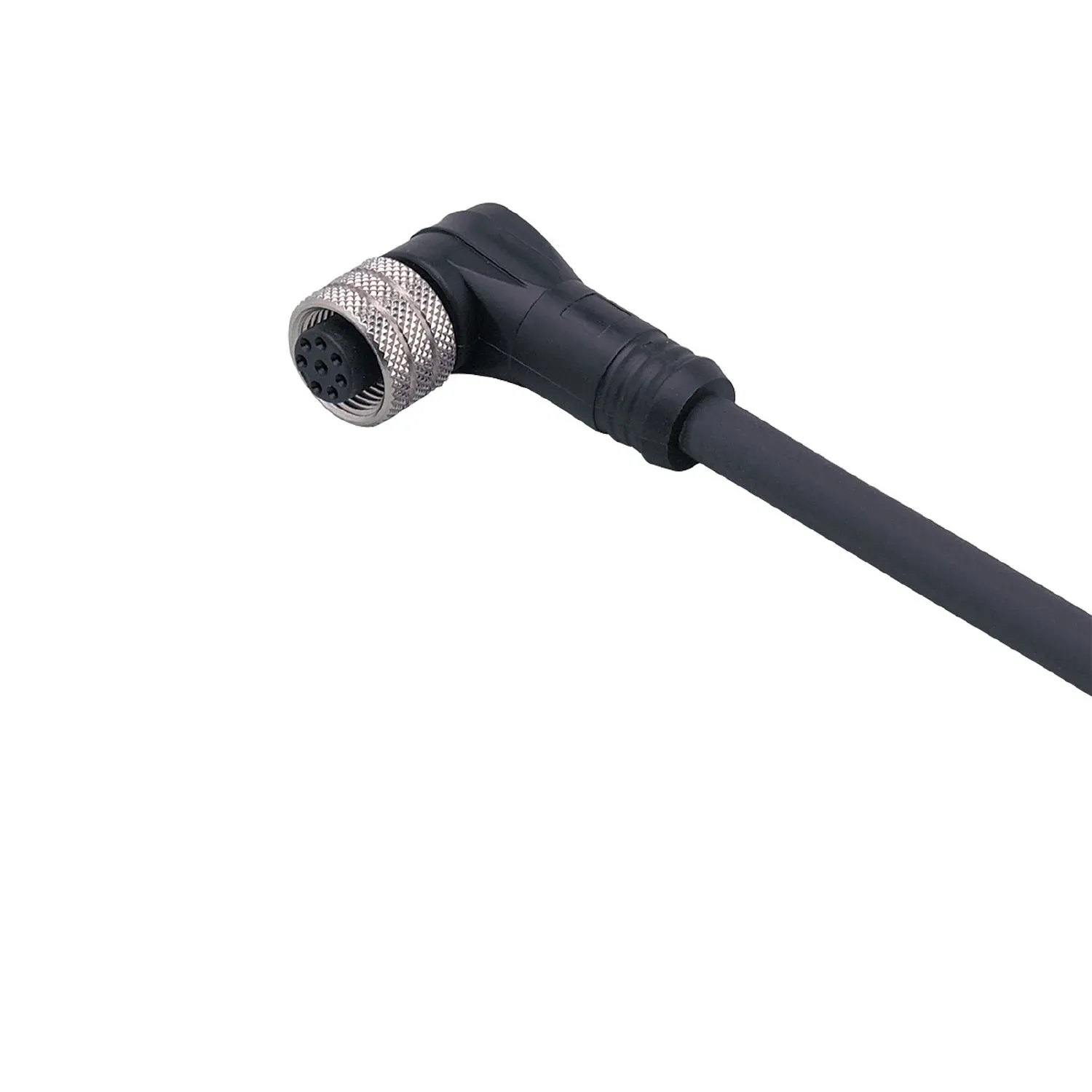

IFM E12169
E12169
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
8-pole connection
High protection rating for the requirements of harsh industrial environments
Reliable transmission of the sensor signals
Wide operating temperature range
Angled type for use where space is restricted
Specification
Application
| Application | Industrial applications / factory automation |
|---|
Electrical data
| Operating voltage[V] [V] | < 30 AC / < 36 DC |
|---|---|
| Max. current load total[A] [A] | 2 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...80 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight[g] [g] | 551.5 |
|---|---|
| Dimensions[mm] [mm] | 27.5 x 14.5 x 38 |
| Moulded-body material | TPU |
| Material nut | brass, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 10 m, PUR, black; 8 x 0.25 mm² (32 x Ø 0.1 mm ) |
|---|
Electrical connection - socket
| Connector | 1 x M12, angled; coding: A; Moulded body: TPU; Locking: brass, nickel-plated; Tightening torque: 1...1.5 Nm |
|---|
