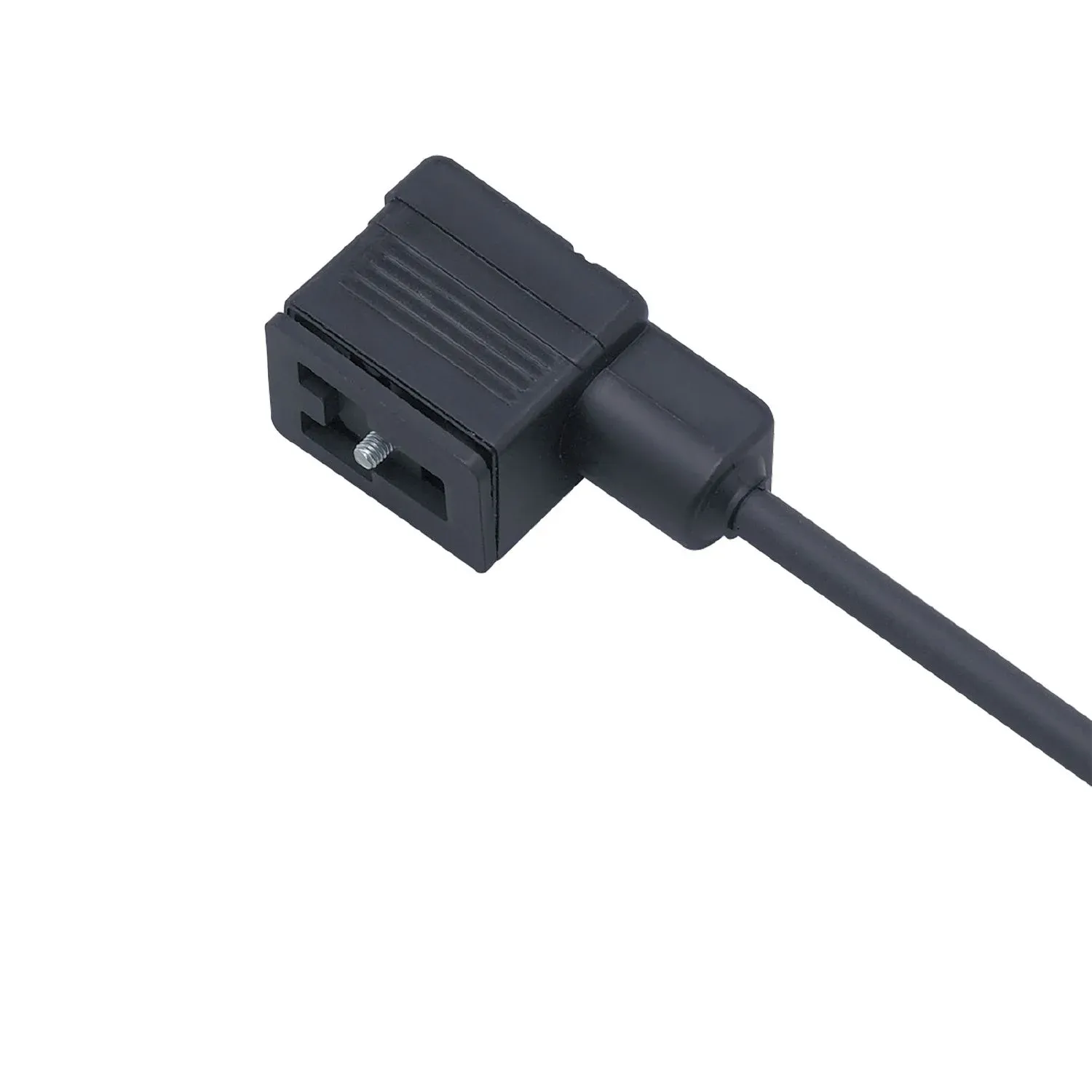

IFM E11992
E11992
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable connection of valves in the field
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Clearly visible LED
Robust rectangular connector
Specification
Application
| Special feature | Free from silicone; Halogen-free |
|---|---|
| Application | Industrial applications / factory automation |
| Free from silicone | yes |
Electrical data
| Operating voltage[V] [V] | < 24 AC/DC |
|---|---|
| Overvoltage protection | yes; (VDR) |
Operating conditions
| Ambient temperature[°C] [°C] | -20...80 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight[g] [g] | 490 |
|---|---|
| Dimensions[mm] [mm] | 28.5 x 24 x 49 |
| Materials | PP; FKM |
| Moulded-body material | PP / FPM |
| Material nut | brass, nickel-plated |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 10 m, PUR, Halogen-free, Ø 6.6 mm; 3 x 0.5 mm² / AWG 20 |
|---|
Electrical connection - socket
| Connector | 1 x valve type B DIN, angled; Moulded body: PP / FPM; Locking: brass, nickel-plated |
|---|
