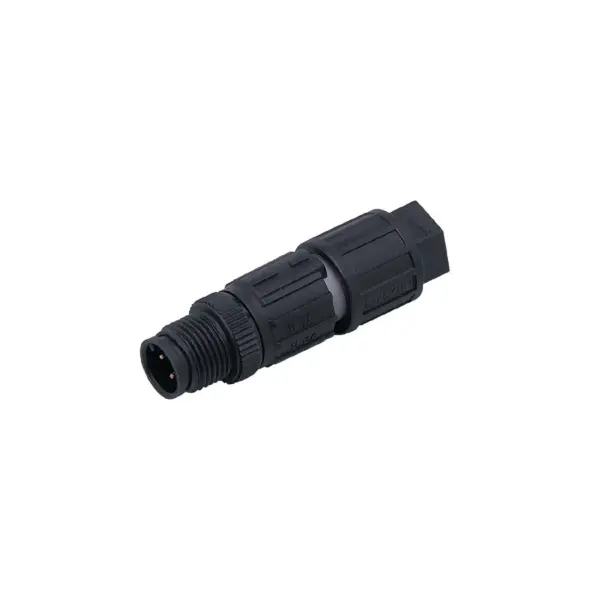

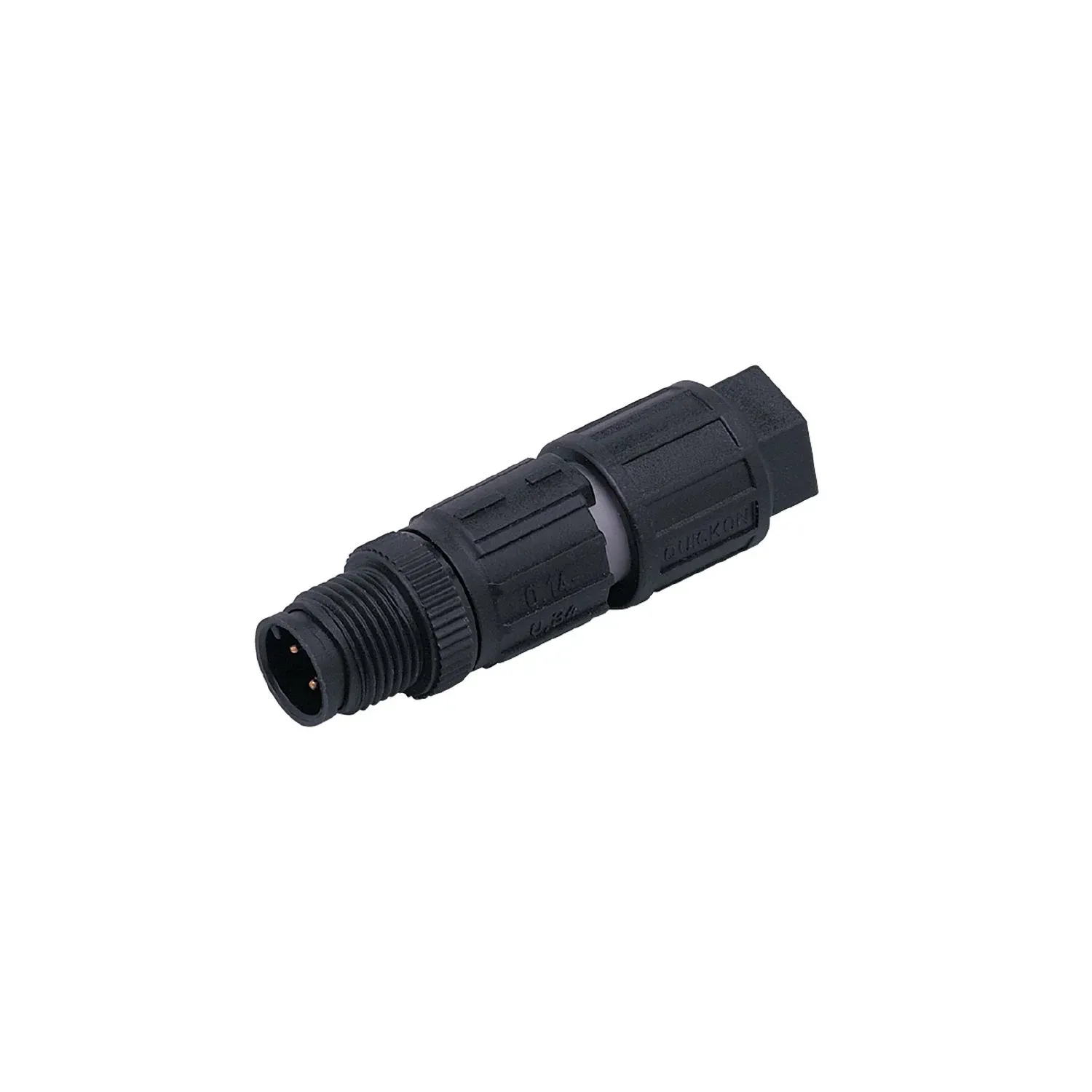

IFM E11840
E11840
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For safe electrical connections
High protection rating for the requirements of harsh industrial environments
Easy cable connection via insulation displacement technology
Specification
Electrical data
| Operating voltage[V] [V] | < 250 AC/DC |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight[g] [g] | 11.8 |
|---|---|
| Dimensions[mm] [mm] | 16 x 16 x 54 |
| Moulded-body material | PA 6.6 |
| Material nut | PA 6.6 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| insulation displacement technology | 0.14...0.34 mm²; Cable sheath: Ø 3.5...6 mm |
|---|
Electrical connection - plug
| Connector | 1 x M12, straight; coding: A; Moulded body: PA 6.6; Locking: PA 6.6 |
|---|
