IFM E11795
E11795
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

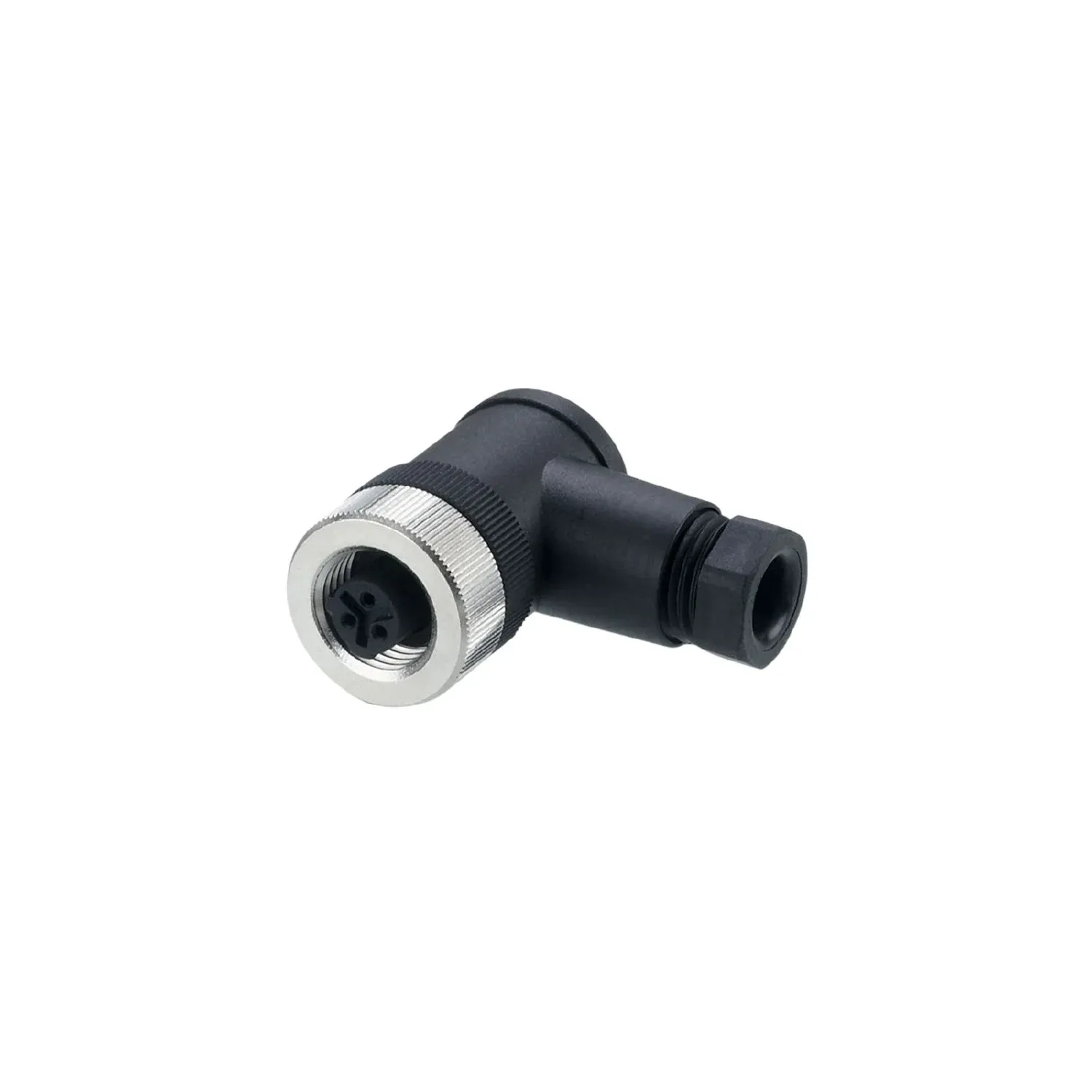

Angled type for use where space is restricted
Wide operating temperature range
Gold-plated contacts for reliable electrical connections
High protection rating for the requirements of harsh industrial environments
Safe cable connection with screw terminals
Specification
Application
| Special feature | Free from silicone; Gold-plated contacts |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage[V] [V] | < 250 AC |
|---|---|
| Max. current load total[A] [A] | 4; (...40 °C) |
Operating conditions
| Ambient temperature[°C] [°C] | -25...85 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight[g] [g] | 24.8 |
|---|---|
| Dimensions[mm] [mm] | 35 x 20 x 30 |
| Moulded-body material | PA |
| Material nut | brass, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| terminals | ...0.75 mm²; Cable sheath: Ø 4...6 mm |
|---|
Electrical connection - socket
| Connector | 1 x 1/2", angled; coding: C; Moulded body: PA; Locking: brass, nickel-plated; Contacts: gold-plated |
|---|
