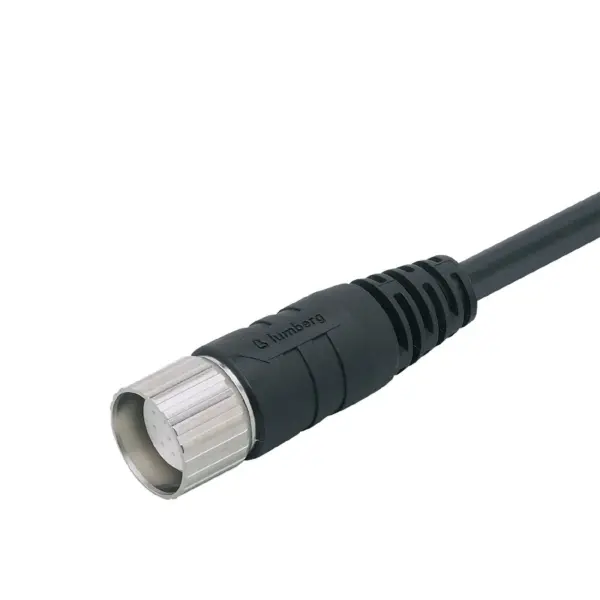

IFM E11742
E11742
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable connection of controllers and dialogue units
Wide operating temperature range
Suited for use in mobile machines
High protection rating for the requirements of harsh industrial environments
Specification
Application
| Special feature | Halogen-free |
|---|---|
| Application | Industrial applications / factory automation |
Electrical data
| Operating voltage[V] [V] | < 63 AC/DC |
|---|---|
| Max. current load total[A] [A] | 8 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight[g] [g] | 1141 |
|---|---|
| Dimensions[mm] [mm] | 26 x 26 x 85 |
| Moulded-body material | PUR |
| Material nut | brass, nickel-plated |
| Tightening torque[Nm] [Nm] | 2 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 5 m, PUR, Halogen-free, black, Ø 11.6 mm; 16 x 0.5 mm² (63 x Ø 0.1 mm ) + 3 x 1.0 mm² (127 x Ø 0.1 mm ) |
|---|
Electrical connection - socket
| Connector | 1 x M23, straight; Moulded body: PUR, black; Locking: brass, nickel-plated |
|---|
