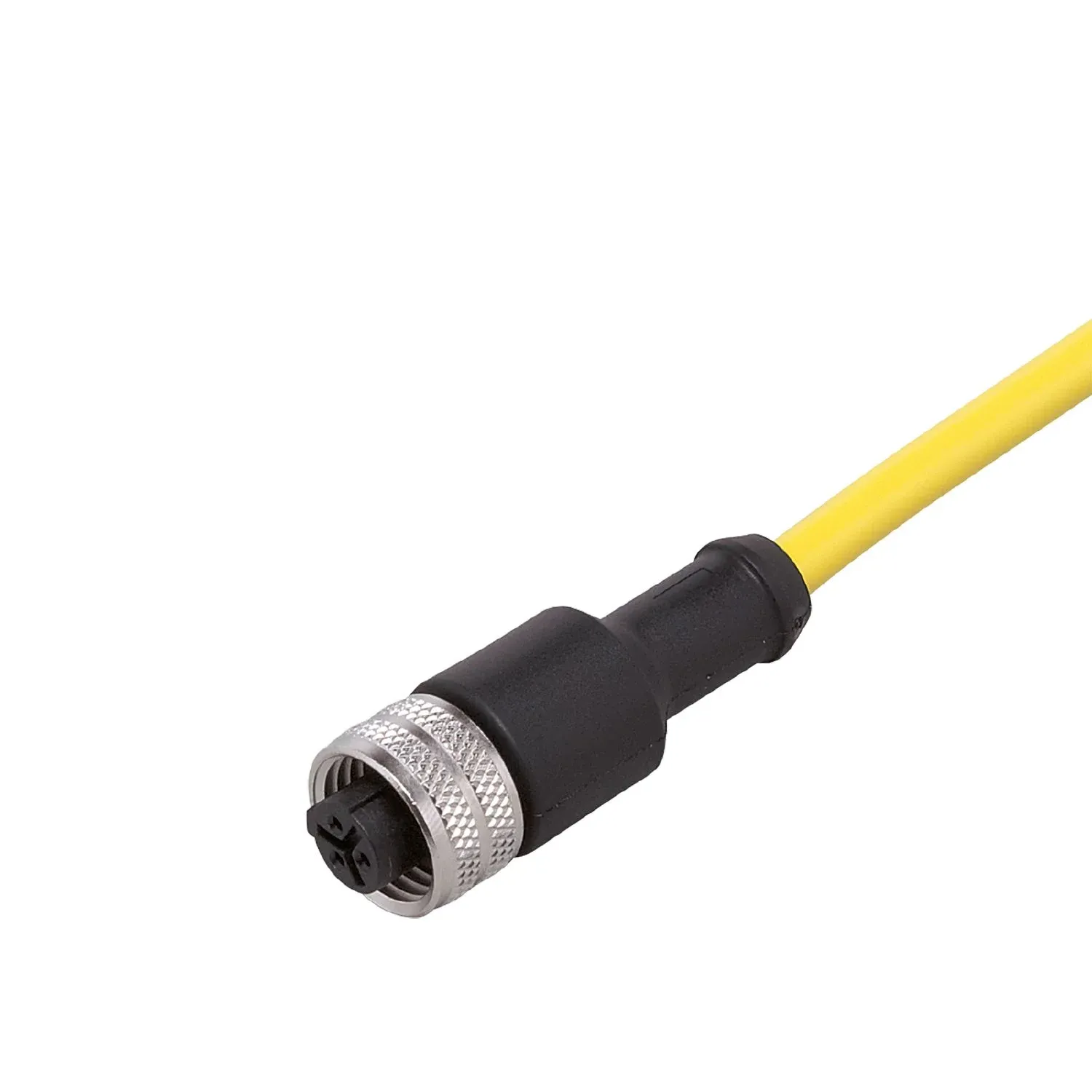

IFM E11661
E11661
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Gold-plated contacts for reliable electrical connections
Permanent, reliable sealing even when mounted without tools
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Specification
Application
| Special feature | Drag chain suitability |
|---|---|
| Application | Industrial applications / factory automation |
Electrical data
| Operating voltage[V] [V] | < 250 AC/DC |
|---|---|
| Max. current load total[A] [A] | 4; (40° C) |
Operating conditions
| Ambient temperature[°C] [°C] | -25...90 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight[g] [g] | 404.431 |
|---|---|
| Dimensions[mm] [mm] | 14.5 x 14.5 x 42.5 |
| Moulded-body material | TPU |
| Material nut | brass, nickel-plated |
| Drag chain suitability | bending radius for flexible use min. 10 x cable diameter travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² bending cycles > 2 Mio. torsional strain ± 180 °/m |
| bending radius for flexible use | min. 10 x cable diameter |
| travel speed | max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² |
| bending cycles | > 2 Mio. |
| torsional strain | ± 180 °/m |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 10 m, PVC, yellow, Ø 5.2 mm; 3 x (42 x Ø 0.1 mm ) / AWG 22 |
|---|
Electrical connection - socket
| Connector | 1 x 1/2", straight; coding: C; Moulded body: TPU; Locking: brass, nickel-plated |
|---|
