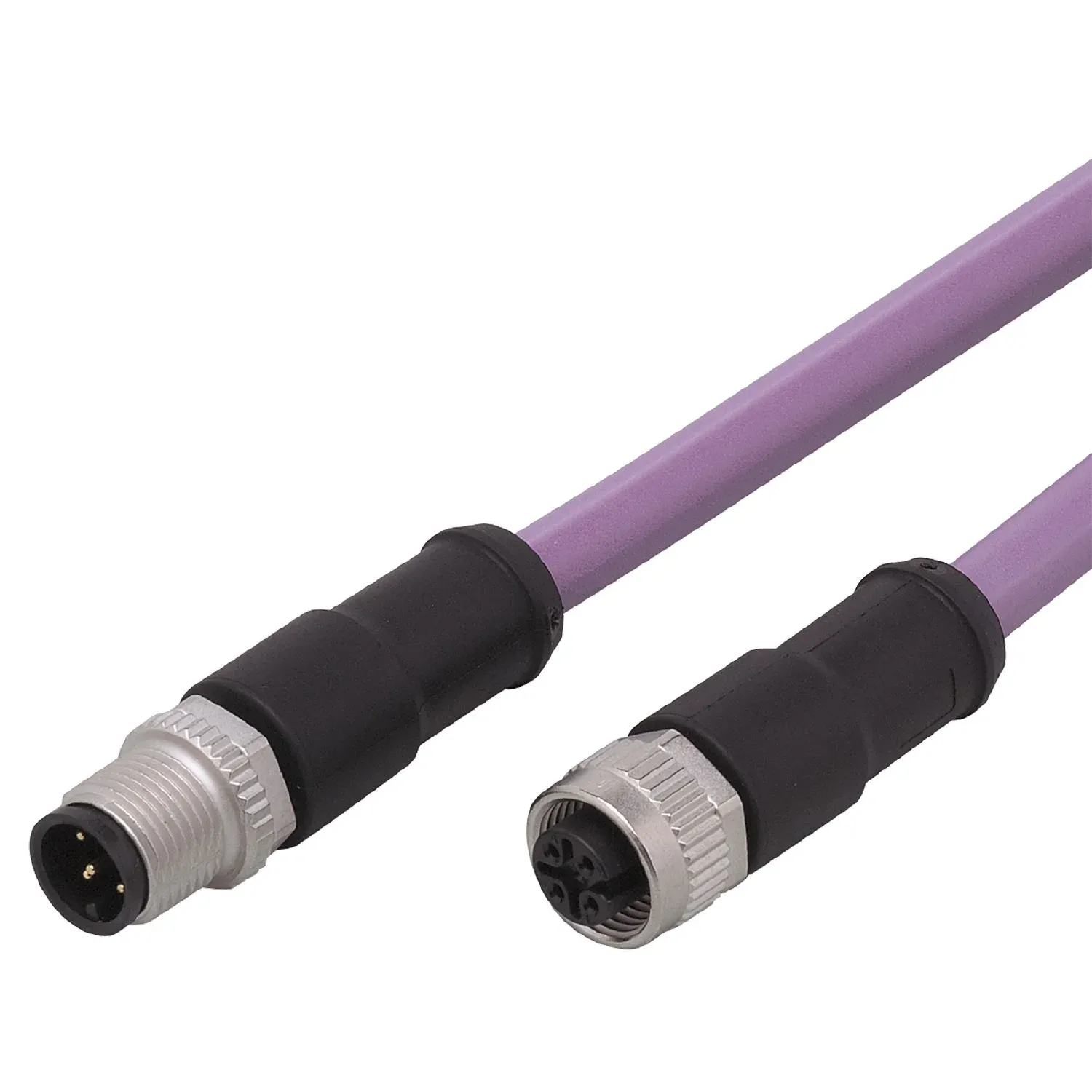

IFM E11591
E11591
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable connection technology for CAN bus participants
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Good electromagnetic compatibility thanks to shielded cable
Gold-plated contacts for reliable electrical connections
Specification
Application
| Special feature | Halogen-free; Gold-plated contacts; Screened cable; Drag chain suitability |
|---|---|
| Application | CAN bus |
Electrical data
| Operating voltage[V] [V] | < 30 AC / < 36 DC |
|---|---|
| Max. current load total[A] [A] | 4 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Storage temperature[°C] [°C] | -40...80 |
| Protection | IP 68 |
Mechanical data
| Weight[g] [g] | 50.2 |
|---|---|
| Dimensions[mm] [mm] | 14.5 x 14.5 x 48.5 |
| Moulded-body material | PUR |
| Material nut | diecast zinc, nickel-plated |
| Drag chain suitability | bending radius for flexible use min. 10 x cable diameter bending radius for fixed installation min. 5 x cable diameter travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² bending cycles > 1 Mio. |
| bending radius for flexible use | min. 10 x cable diameter |
| bending radius for fixed installation | min. 5 x cable diameter |
| travel speed | max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² |
| bending cycles | > 1 Mio. |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12, straight; coding: A; Moulded body: PUR; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Tightening torque: 0.5 Nm |
|---|
Electrical connection
| Cable | 0.3 m, PUR, Halogen-free, lilac, Ø 7.2 mm, shielded; RD / BK: 2 x 0.34 mm² (19 x Ø 0.16 mm ) + WH / BU: 2 x 0.25 mm² (19 x Ø 0.13 mm ) + screen: 1 x 0.34 mm² (19 x Ø 0.16 mm ) / twisted |
|---|
Electrical connection - socket
| Connector | 1 x M12, straight; coding: A; Moulded body: PUR; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Tightening torque: 0.5 Nm |
|---|
