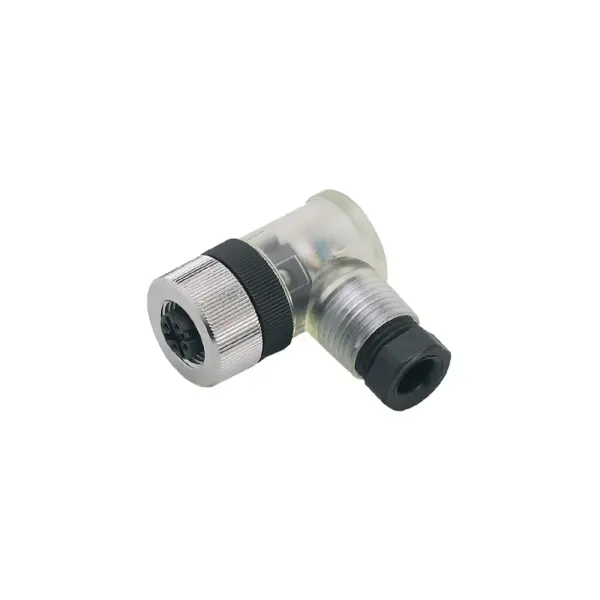

IFM E11510
E11510
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Angled type for use where space is restricted
Wide operating temperature range
Gold-plated contacts for reliable electrical connections
High protection rating for the requirements of harsh industrial environments
Clearly visible LEDs for indicating operation and switching status
Specification
Application
| Special feature | Free from silicone; Gold-plated contacts |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Max. current load total[A] [A] | 4; (...40 °C) |
Outputs
| Electrical design | PNP |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...85 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight[g] [g] | 28.6 |
|---|---|
| Dimensions[mm] [mm] | 30 x 18 x 35 |
| Moulded-body material | PA |
| Material nut | brass, nickel-plated |
Displays / operating elements
| Display | switching status 1 x LED, yellow operation 1 x LED, green |
|---|---|
| switching status | 1 x LED, yellow |
| operation | 1 x LED, green |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| screw terminals | ...0.75 mm²; Cable sheath: Ø 4...6 mm |
|---|
Electrical connection - socket
| Connector | 1 x M12, angled; coding: A; Moulded body: PA; Locking: brass, nickel-plated; Contacts: gold-plated |
|---|
