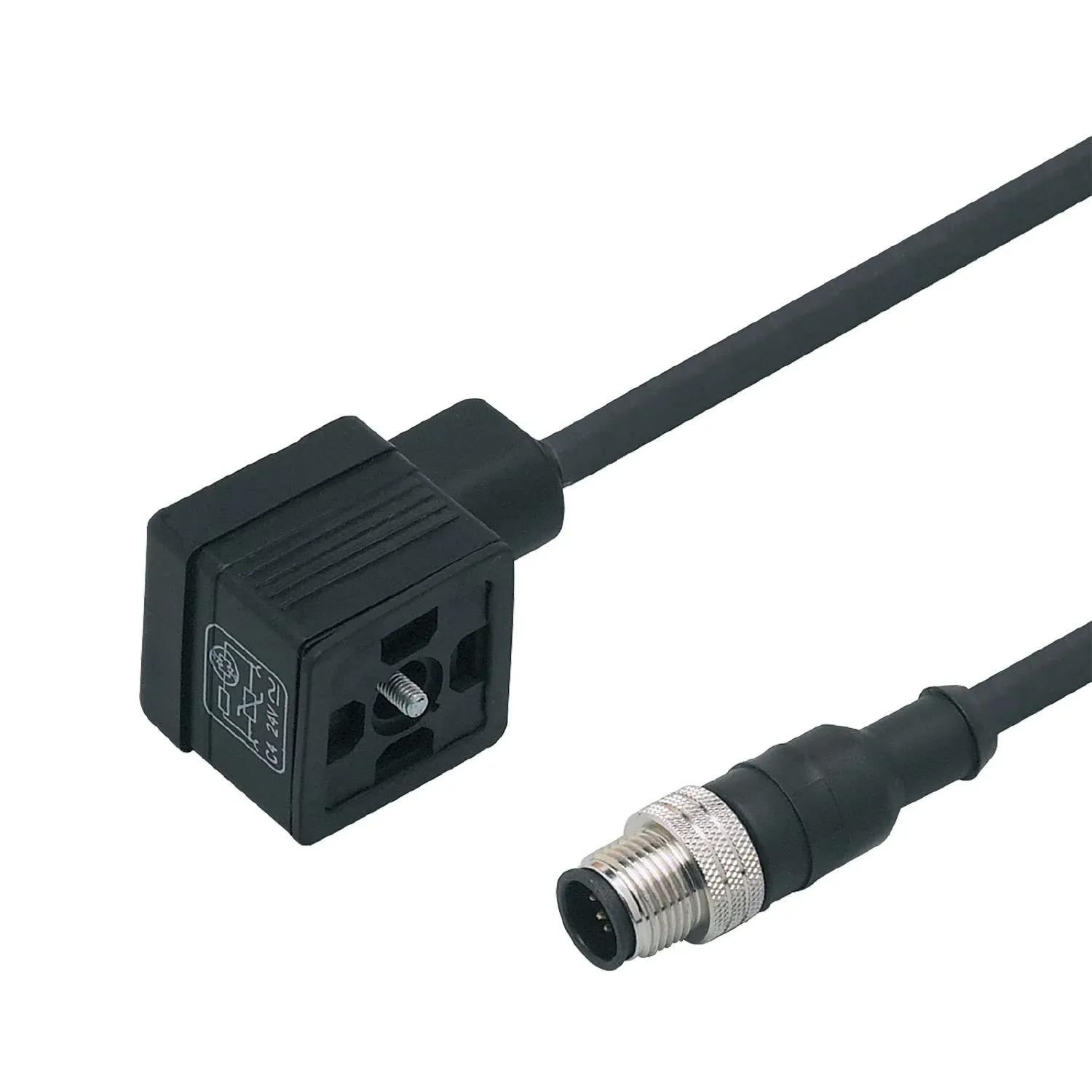

IFM E11418
E11418
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable connection of valves in the field
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Clearly visible LED for switching status indication
With integrated protective circuitry
Specification
Application
| Special feature | Free from silicone; Halogen-free; Gold-plated contacts |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage[V] [V] | < 24 AC/DC |
|---|---|
| Overvoltage protection | yes; (VDR) |
| Max. current load total[A] [A] | 3 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight[g] [g] | 94.2 |
|---|---|
| Materials | housing: PUR |
| Moulded-body material | PUR |
| Material nut | brass, nickel-plated |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Accessories
| Items supplied | screw: 1 panel for labelling: 1 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm |
|---|
Electrical connection
| Cable | 1 m, PUR, Halogen-free, black, Ø 5 mm; 3 x 0.5 mm² (42 x Ø 0.1 mm ) |
|---|
Electrical connection - socket
| Connector | 1 x valve type A DIN (EN 175301-803), angled; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: nickel-plated brass; Tightening torque: 0.7...0.9 Nm |
|---|
