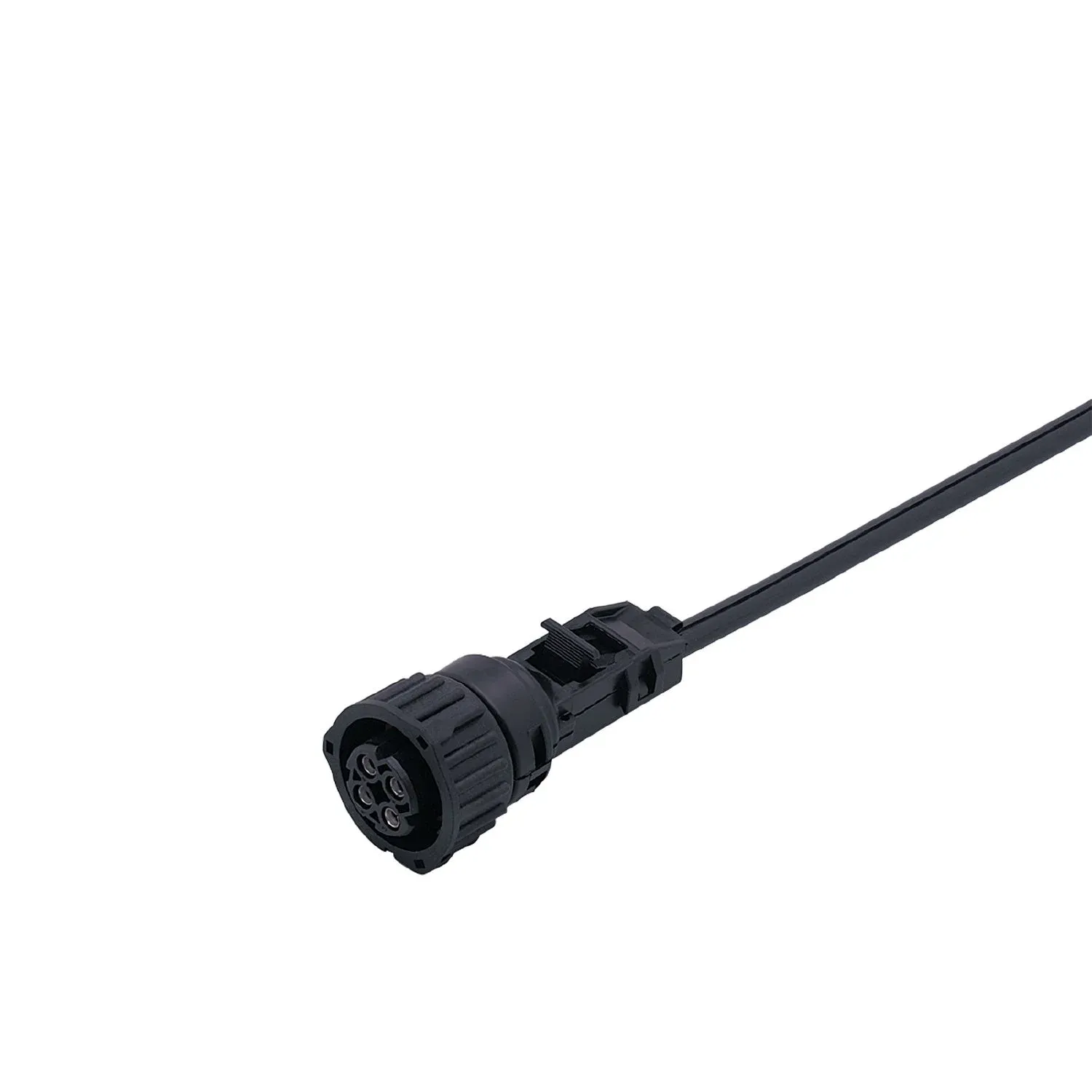

IFM E11273
E11273
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Gold-plated contacts for reliable electrical connections
Permanent, reliable sealing even when mounted without tools
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Specification
Application
| Special feature | Halogen-free |
|---|---|
| Application | Industrial applications / factory automation |
Electrical data
| Operating voltage[V] [V] | 9.6...30 DC |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Protection | IP 67; IP 69K |
Mechanical data
| Weight[g] [g] | 106.5 |
|---|---|
| Dimensions[mm] [mm] | 30 x 30 x 68 |
| Moulded-body material | Hytrel G-4774 |
| Material nut | Hytrel G-4774 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 2 m, PUR, Halogen-free, black; 4 x 0.5 mm² |
|---|
Electrical connection - socket
| Connector | 1 x bayonet, straight; Moulded body: Hytrel G-4774; Locking: Hytrel G-4774 |
|---|
