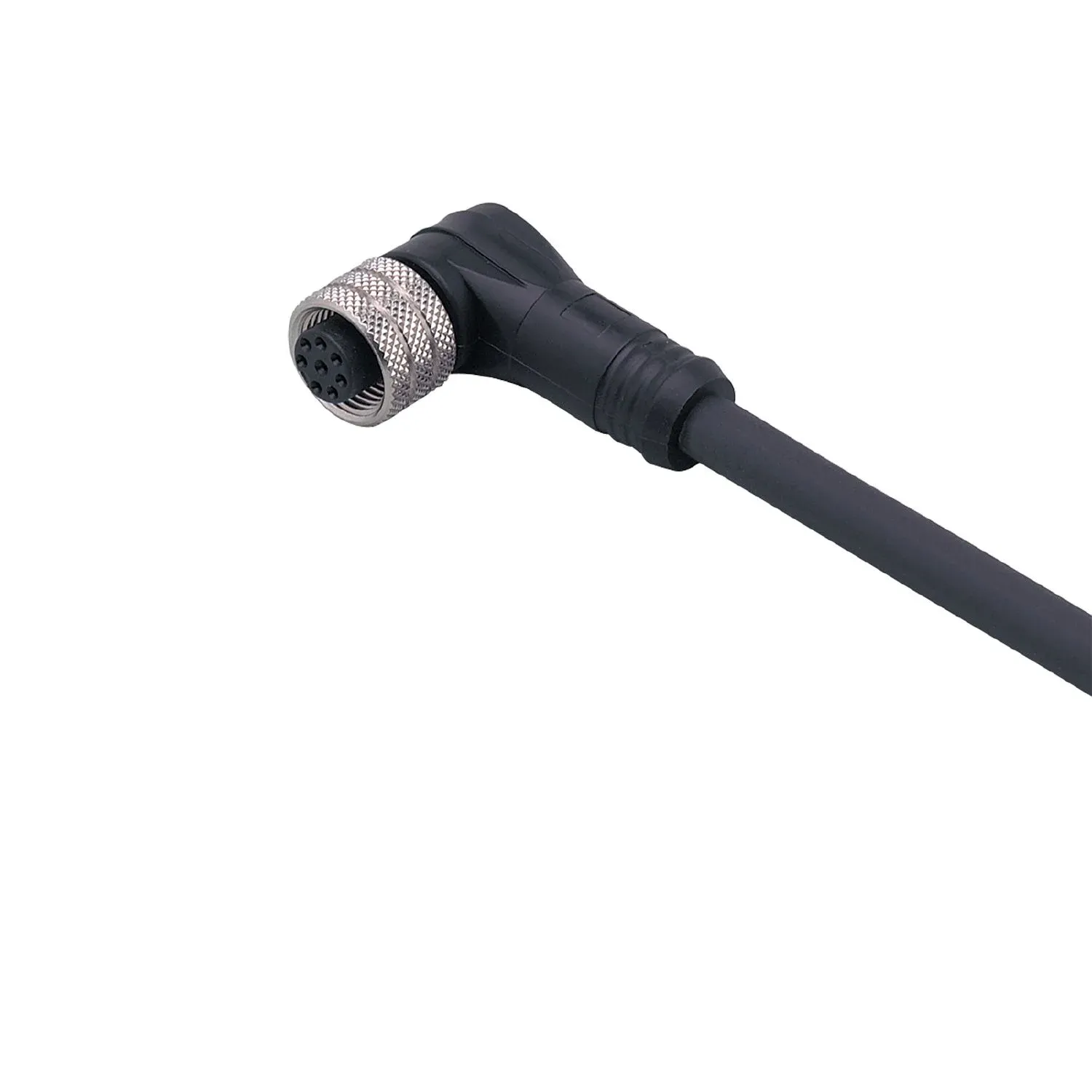

IFM E11231
E11231
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
8-pole connection
High protection rating for the requirements of harsh industrial environments
Gold-plated contacts for reliable electrical connections
Wide operating temperature range
Angled type for use where space is restricted
Specification
Application
| Special feature | Free from silicone; Gold-plated contacts |
|---|---|
| Application | Industrial applications / factory automation |
| Free from silicone | yes |
Electrical data
| Operating voltage[V] [V] | < 30 AC / < 36 DC |
|---|---|
| Protection class | III |
| Max. current load total[A] [A] | 2; (...40 °C) |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight[g] [g] | 170.46 |
|---|---|
| Dimensions[mm] [mm] | 27.5 x 14.5 x 38 |
| Moulded-body material | PUR |
| Material nut | brass, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 2 m, PUR, black, Ø 6.8 mm; 8 x 0.25 mm² |
|---|
Electrical connection - socket
| Connector | 1 x M12, angled; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm |
|---|
