IFM E11034
E11034
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns

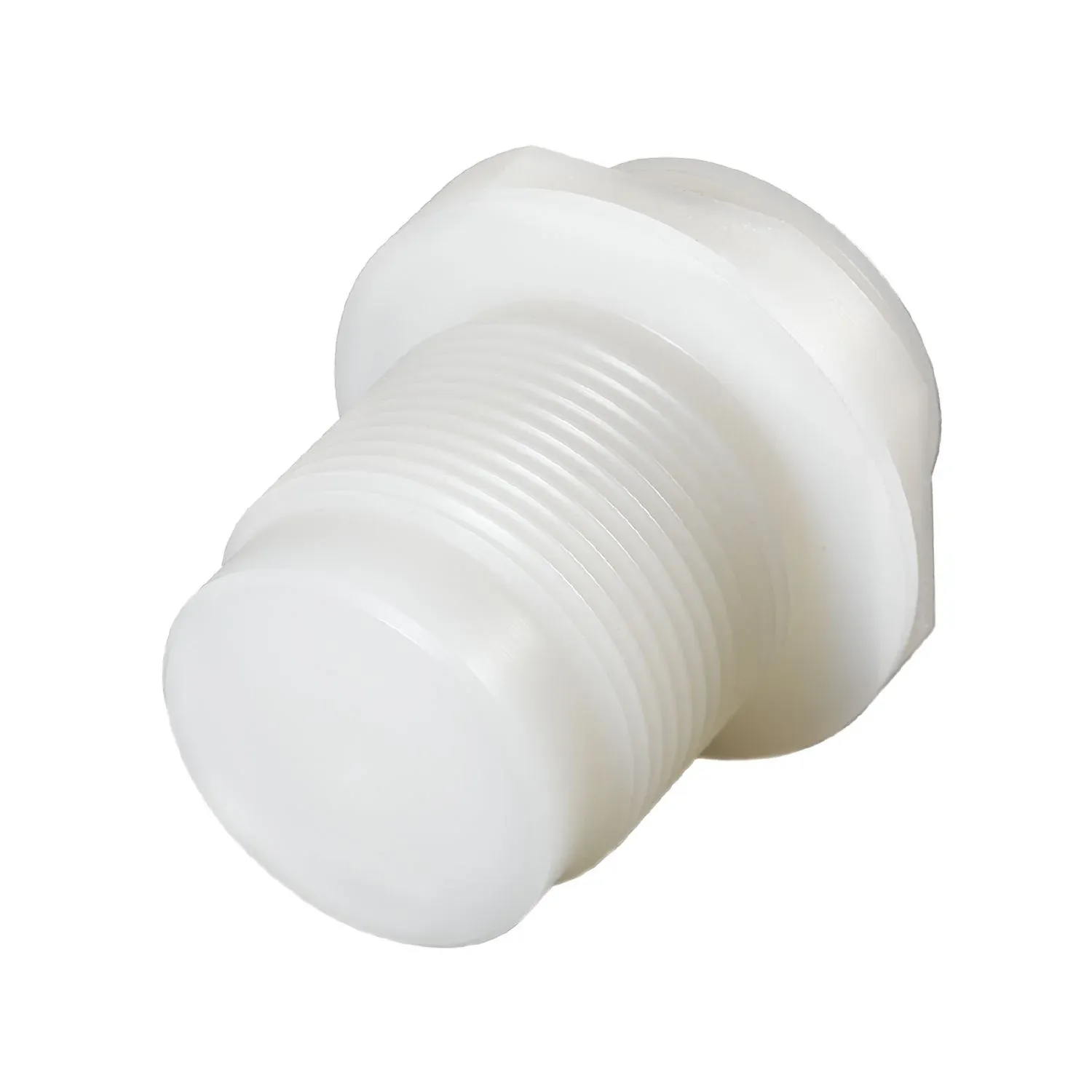

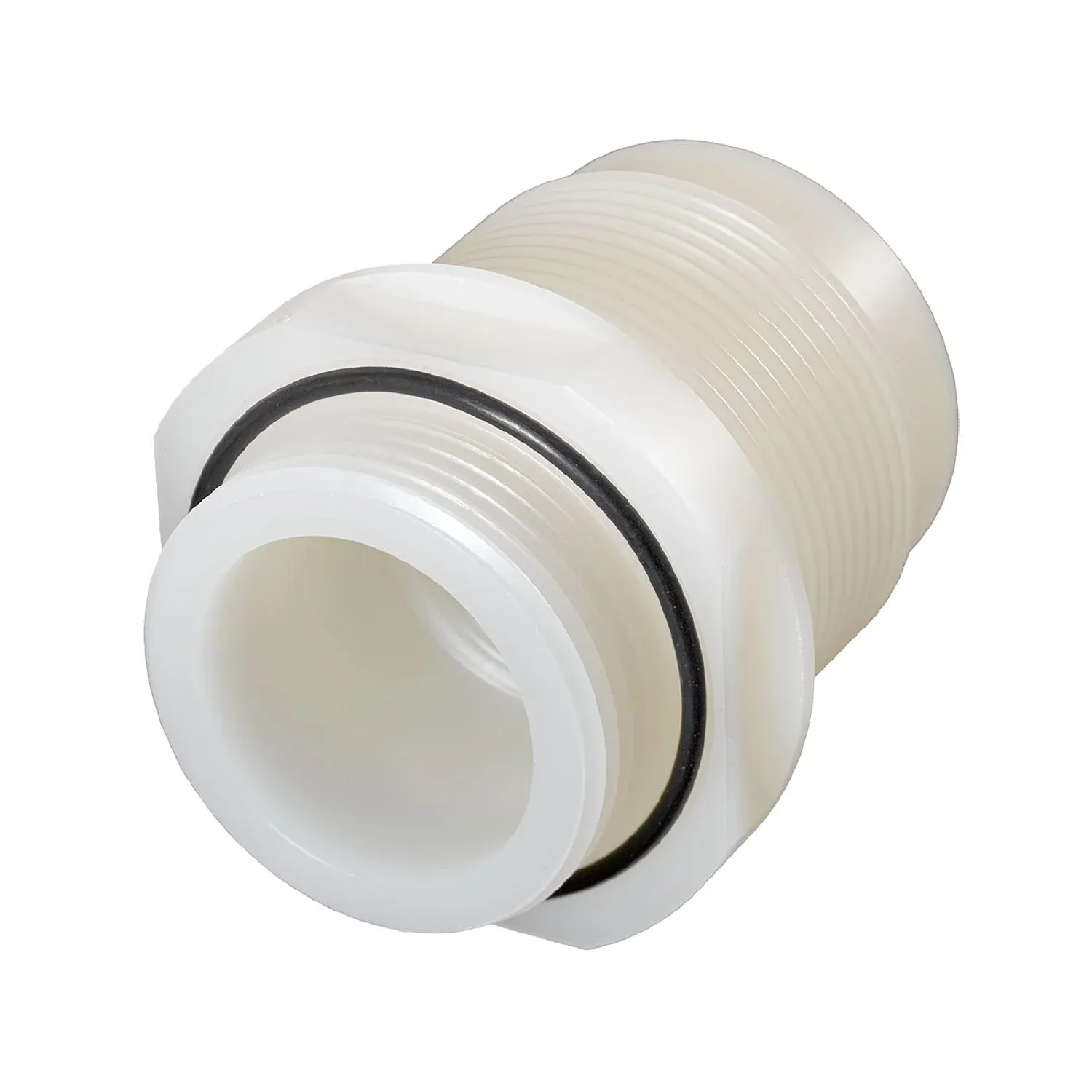

Description
Reliable installation in a vessel wall
Efficient protection against soiling, impact and shock
For level detection with capacitive sensors in containers and tanks
High pressure rating
Use in high medium temperatures
Specification
Application
| Pressure rating | 8 bar 0.8 MPa |
|---|---|
| 8 bar | 0.8 MPa |
Operating conditions
| Ambient temperature[°C] [°C] | -25...110 |
|---|
Mechanical data
| Weight[g] [g] | 113 |
|---|---|
| Dimensions[mm] [mm] | G 1 1/2 / L = 65 |
| Thread designation | G 1 1/2 |
| Materials | Adapter: PVDF; Gasket: EPDM |
| Sensor connection | threaded connection M30 x 1,5 internal thread |
| Process connection | threaded connection G 1 1/2 external thread |
Remarks
| Pack quantity | 1 pcs. |
|---|
