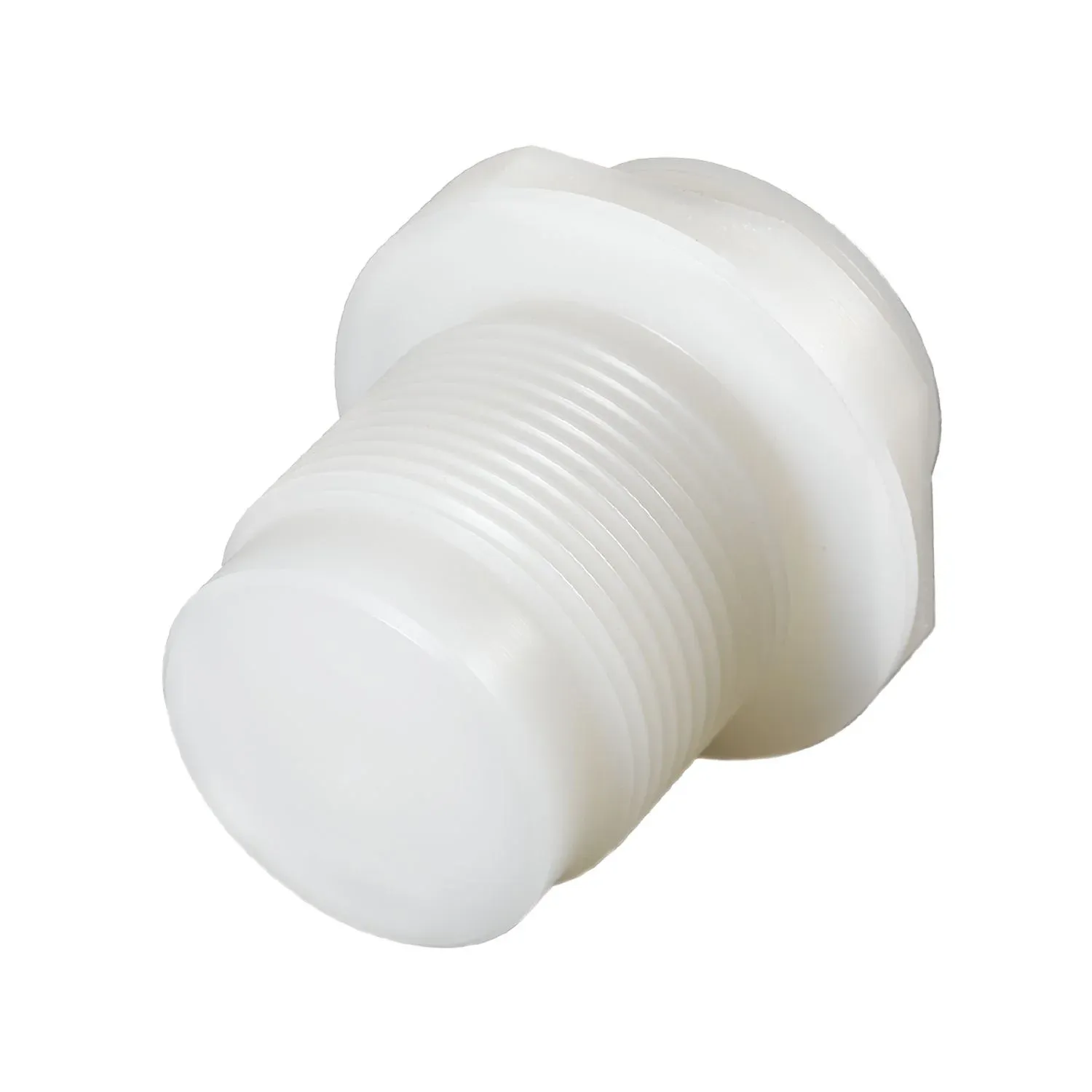

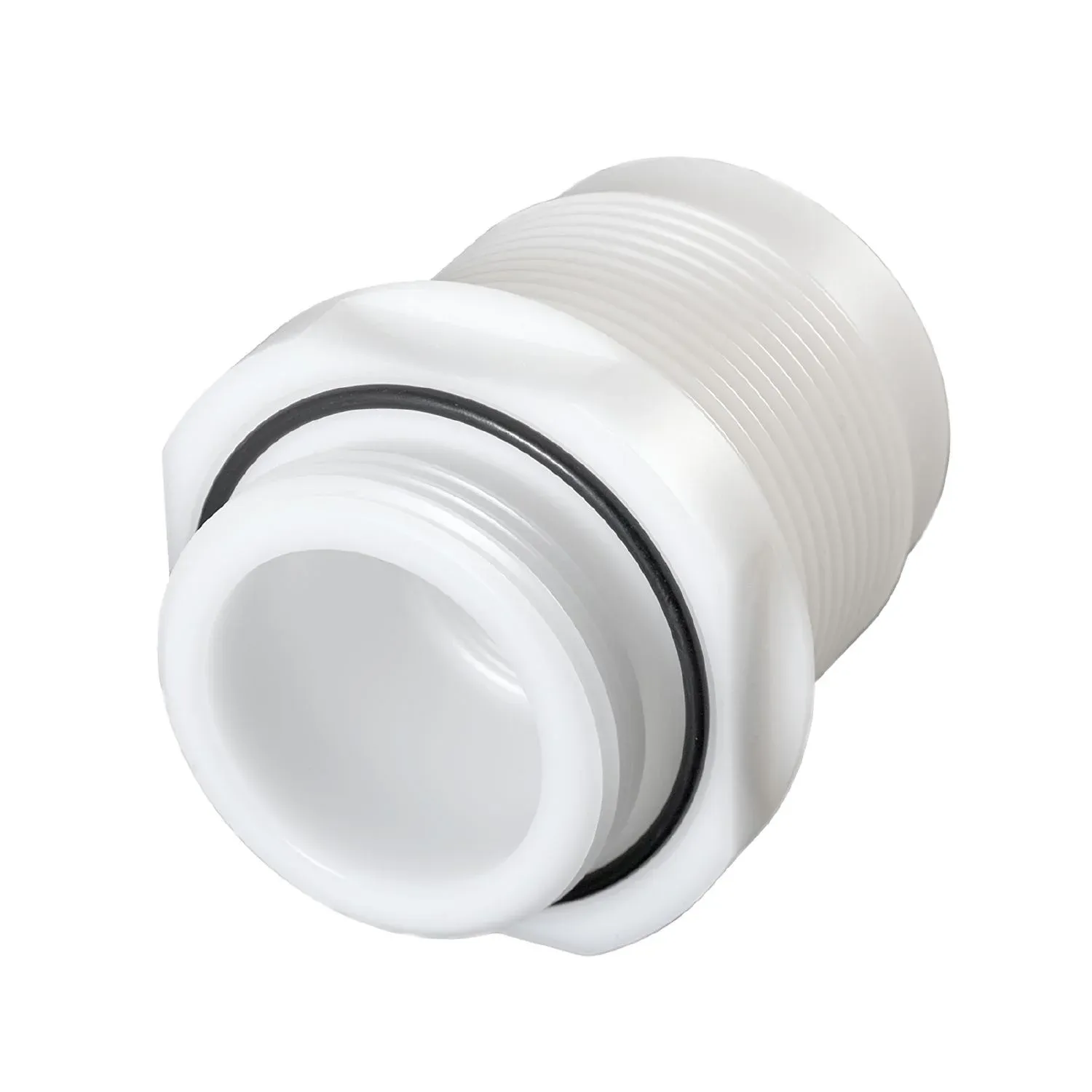

IFM E11033
E11033
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable installation in a vessel wall
Efficient protection against soiling, impact and shock
For level detection with capacitive sensors in containers and tanks
High pressure rating
Specification
Application
| Medium temperature[°C] [°C] | -25...100 |
|---|---|
| Medium temperature short time[°C] [°C] | -25...110 |
| Pressure rating | 8 bar 0.8 MPa |
| 8 bar | 0.8 MPa |
Mechanical data
| Weight[g] [g] | 90.5 |
|---|---|
| Dimensions[mm] [mm] | G 1 1/2 / L = 65 |
| Thread designation | G 1 1/2 |
| Materials | Adapter: POM; Gasket: EPDM |
| Sensor connection | threaded connection M30 x 1,5 internal thread |
| Process connection | threaded connection G 1 1/2 external thread |
Remarks
| Pack quantity | 1 pcs. |
|---|
