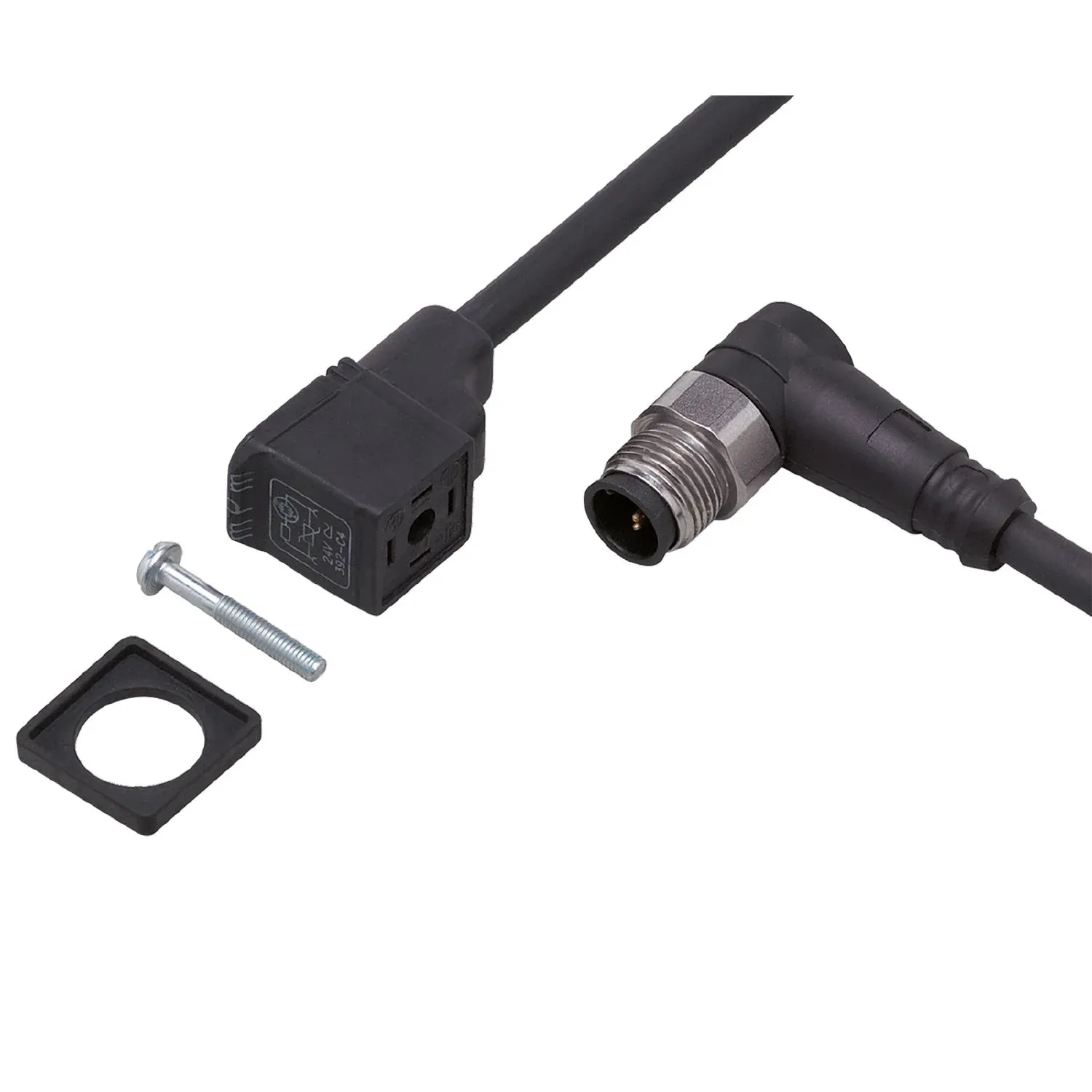

IFM E10845
E10845
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable connection of valves in the field
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Clearly visible LED
With integrated protective circuitry
Specification
Application
| Special feature | Halogen-free |
|---|
Electrical data
| Operating voltage[V] [V] | < 24 AC/DC |
|---|---|
| Overvoltage protection | yes; (VDR) |
Operating conditions
| Ambient temperature[°C] [°C] | -25...90 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight[g] [g] | 58.6 |
|---|---|
| Moulded-body material | TPU |
| Material nut | stainless steel (316L/1.4404) |
Displays / operating elements
| Display | operation 1 x LED, yellow |
|---|---|
| operation | 1 x LED, yellow |
Accessories
| Items supplied | screw: 1 panel for labelling: 1 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12, angled; coding: A; Moulded body: TPU; Locking: stainless steel (316L/1.4404); Tightening torque: 0.5 Nm |
|---|
Electrical connection
| Cable | 0.6 m, PUR, Halogen-free, black, Ø 4.8 mm; 3 x 0.5 mm² (16 x Ø 0.2 mm ) |
|---|
Electrical connection - socket
| Connector | 1 x valve type C DIN, angled; Moulded body: TPU; Locking: stainless steel (316L/1.4404); Tightening torque: 0.5 Nm |
|---|
