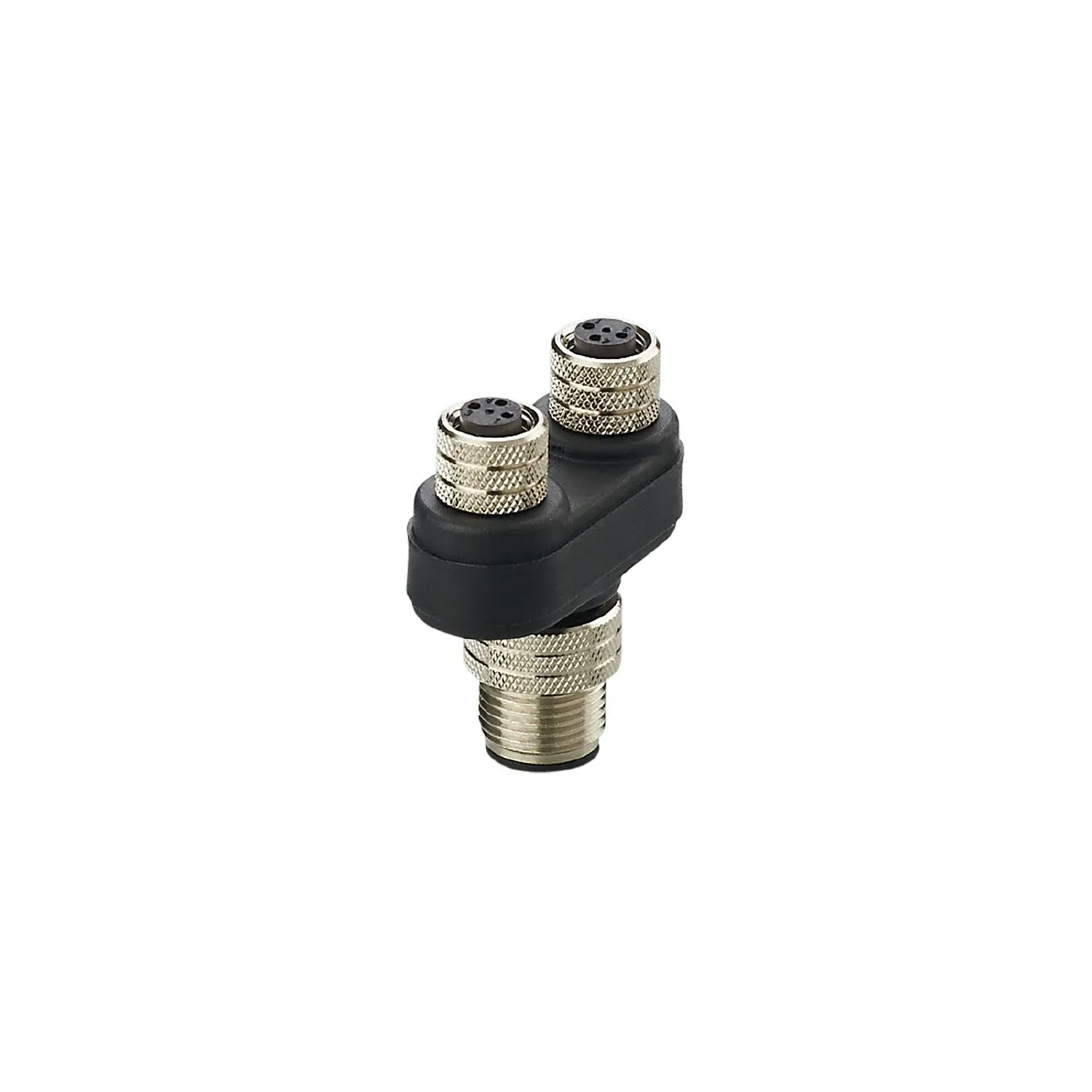

IFM E10802
E10802
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For use in applications with many inputs and outputs where space is restricted
High protection rating for the requirements of harsh industrial environments
Gold-plated contacts for reliable electrical connections
Wide operating temperature range
Specification
Application
| Special feature | Free from silicone; Gold-plated contacts |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage[V] [V] | < 60 DC |
|---|---|
| Protection class | III |
| Max. current load per module/slot[A] [A] | 3 |
| Max. current load total[A] [A] | 3 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...90 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight[g] [g] | 21.8 |
|---|---|
| Dimensions[mm] [mm] | 15.4 x 35.4 x 39.1 |
| Materials | PUR |
| Moulded-body material | PUR |
| Material nut | brass, nickel-plated |
| Connector type | M8 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated |
|---|
