IFM E10437
E10437
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns

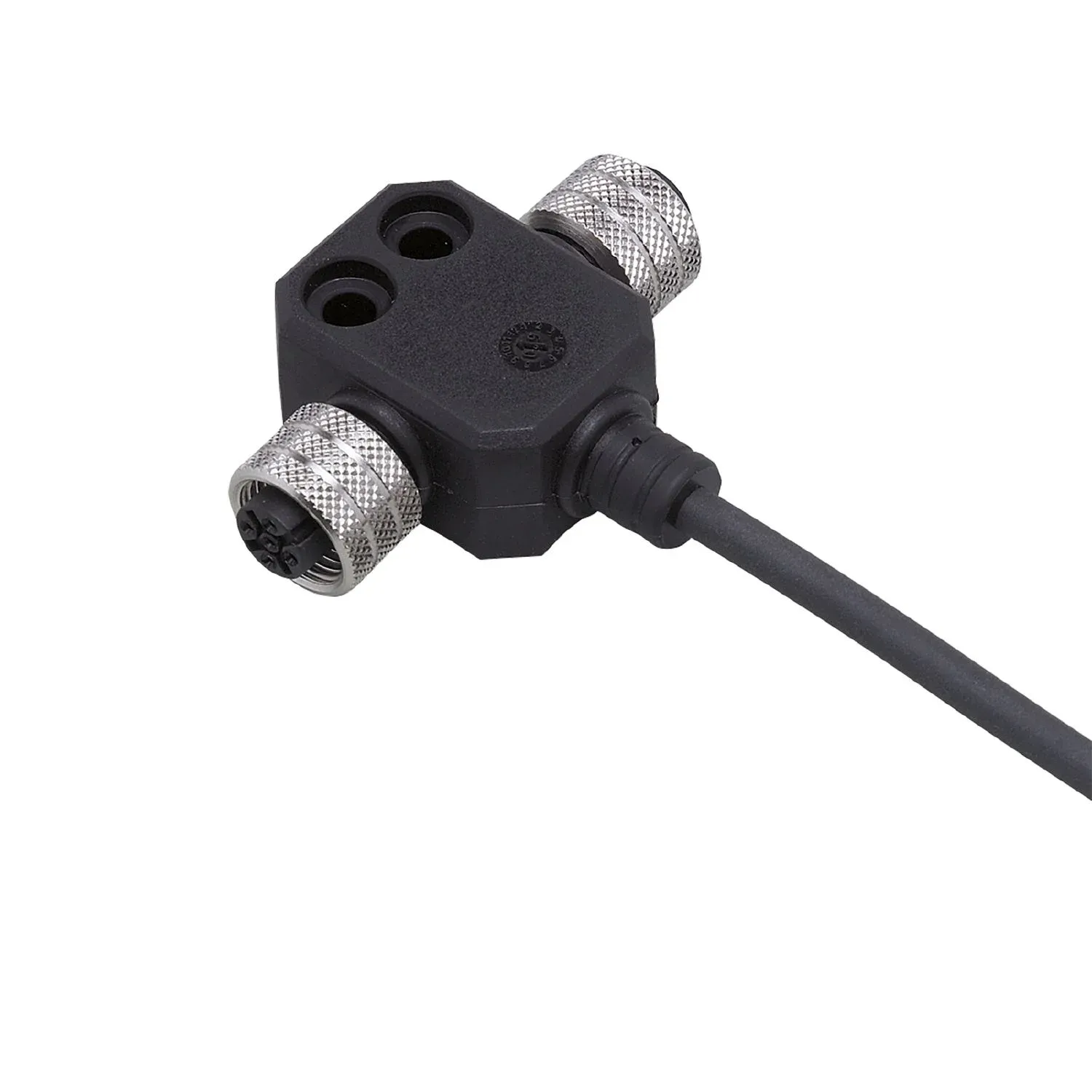

Description
Connection technology meets the M12 standard (EN 61076)
Permanent, reliable sealing even when mounted without tools
Gold-plated contacts for reliable electrical connections
High protection rating for the requirements of harsh industrial environments
Specification
Application
| Special feature | Free from silicone; Halogen-free; Gold-plated contacts |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage[V] [V] | 10...55 DC |
|---|---|
| Max. current load per module/slot[A] [A] | 4 |
| Max. current load total[A] [A] | 4 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight[g] [g] | 160.7 |
|---|---|
| Moulded-body material | TPU |
| Material nut | brass, nickel-plated |
| Number of ports splitter box | 2 |
| Connector type | M12 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 5 m, PUR, Halogen-free, black, Ø 5 mm; 4 x 0.25 mm² (32 x Ø 0.1 mm ) |
|---|
Electrical connection - socket
| Connector | 2 x M12; coding: A; Moulded body: TPU; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.5 Nm |
|---|
