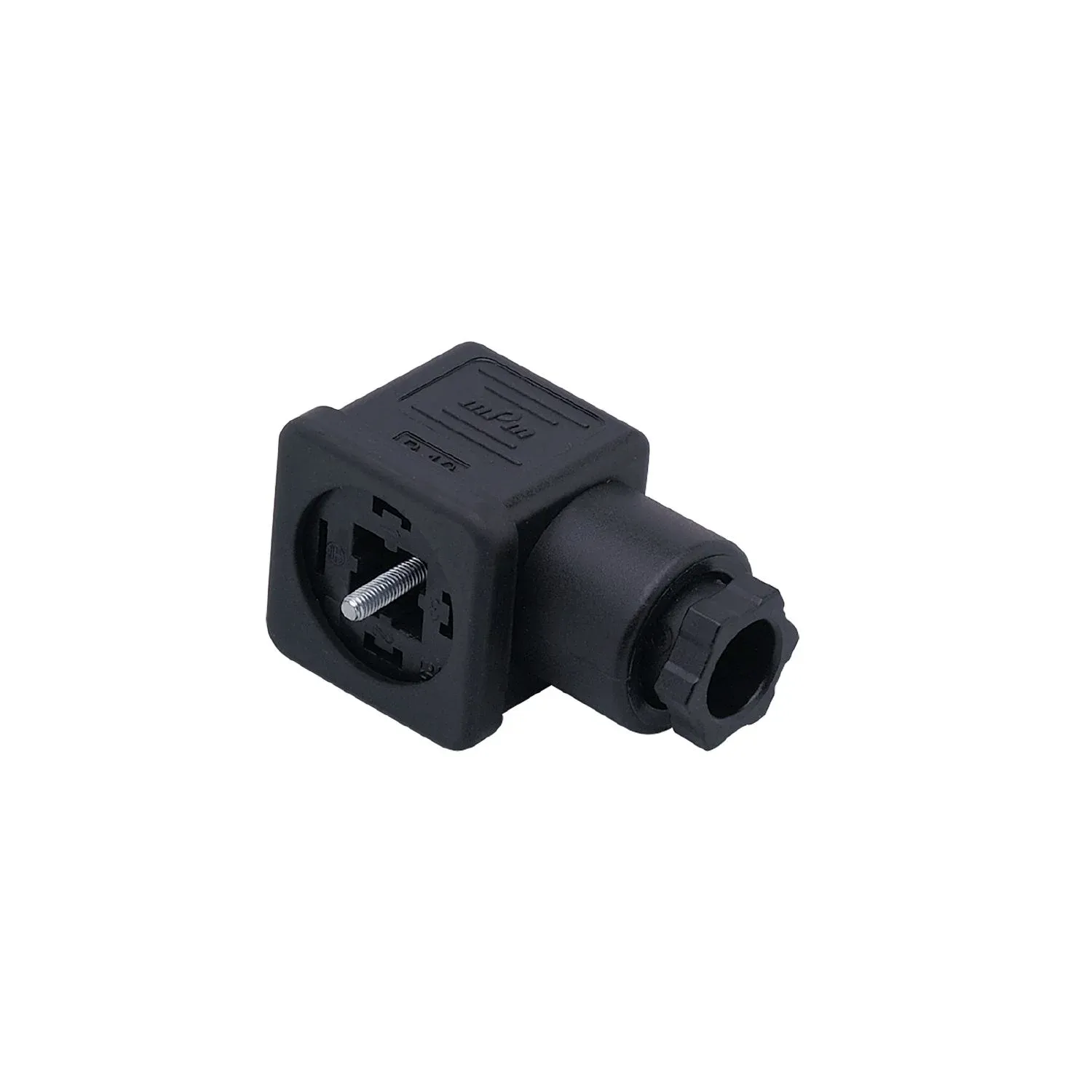

IFM E10058
E10058
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable connection of valves in the field
Angled type for use where space is restricted
Wide operating temperature range
Specification
Application
| Special feature | Free from silicone |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage[V] [V] | < 45 AC / < 70 DC |
|---|---|
| Max. current load total[A] [A] | 16 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...125 |
|---|---|
| Protection | IP 65 |
Mechanical data
| Weight[g] [g] | 28 |
|---|---|
| Dimensions[mm] [mm] | 42 x 29 x 28 |
| Materials | housing: PA; end cap: PA |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| terminals | ...1.5 mm²; Cable sheath: Ø 6...8 mm |
|---|
Electrical connection - socket
| Connector | 1 x valve plug type A DIN, angled |
|---|
