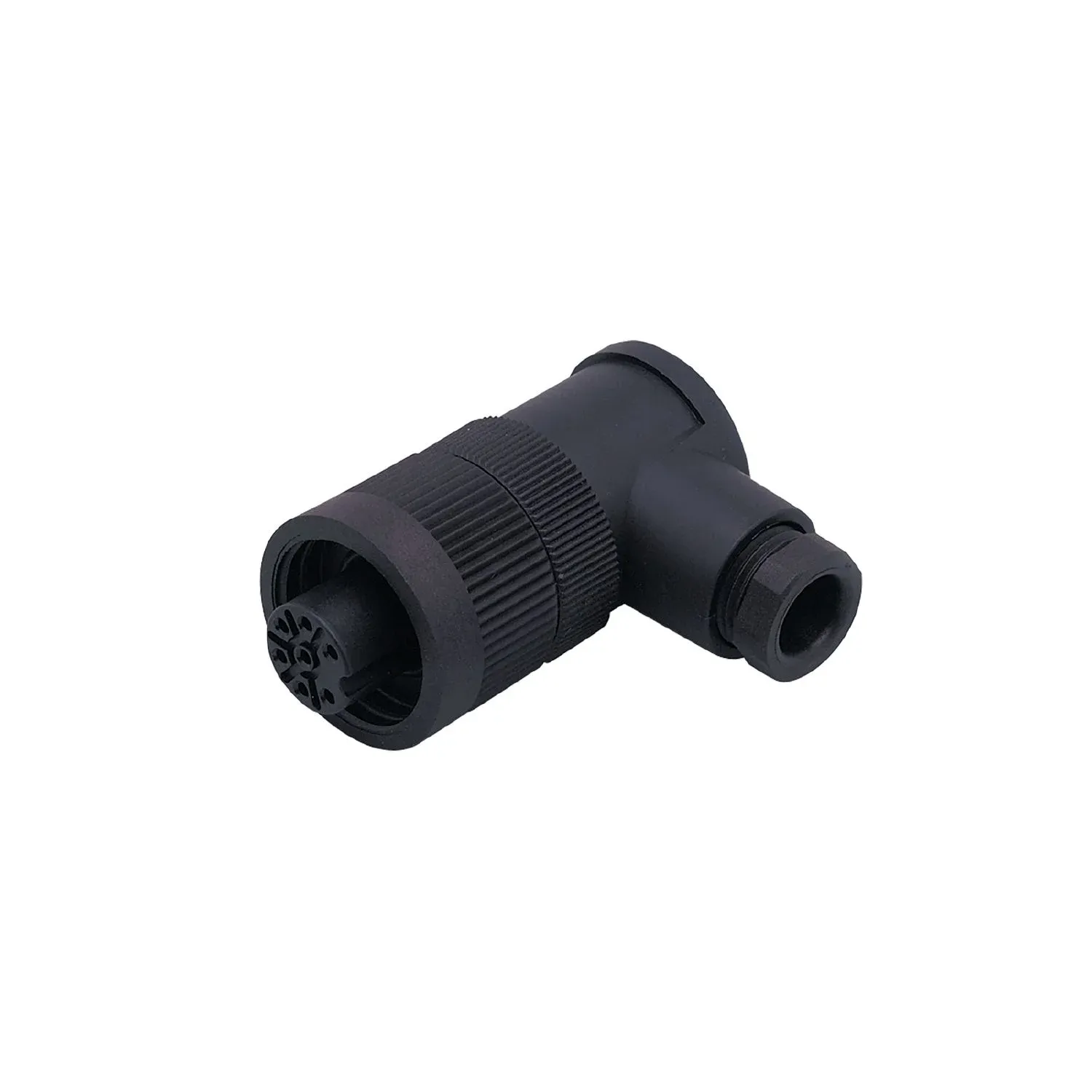

IFM E1004A
E1004A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For applications in hazardous areas
Wide operating temperature range
Gold-plated contacts for reliable electrical connections
High protection rating for the requirements of harsh industrial environments
Angled type for use where space is restricted
Specification
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | connection to certified intrinsically safe circuits |
Operating conditions
| Ambient temperature[°C] [°C] | -20...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| Approval | BVS 05 ATEX E106 |
|---|---|
| ATEX marking | II 1G Ex ia IIC T6 Ga |
Mechanical data
| Weight[g] [g] | 53.5 |
|---|---|
| Dimensions[mm] [mm] | 59 x 29 x 38.5 |
| Materials | PBT |
| Moulded-body material | PBT |
| Material nut | PA |
Remarks
| Remarks | Ta according to table "Total power of the current circuits" in the corresponding operating instructions (safety-related part ATEX) Several intrinsically safe circuits may be connected to the sockets. The sum of the voltages of one or more intrinsically safe circuits must not exceed the following value: Utotal max = 60 V (peak value) |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| terminals | ...2.5 mm²; Cable sheath: Ø 6...8 mm |
|---|
Electrical connection - socket
| Connector | 1 x Rd24, angled; coding: A; Moulded body: PBT; Locking: PA; Contacts: gold-plated |
|---|
