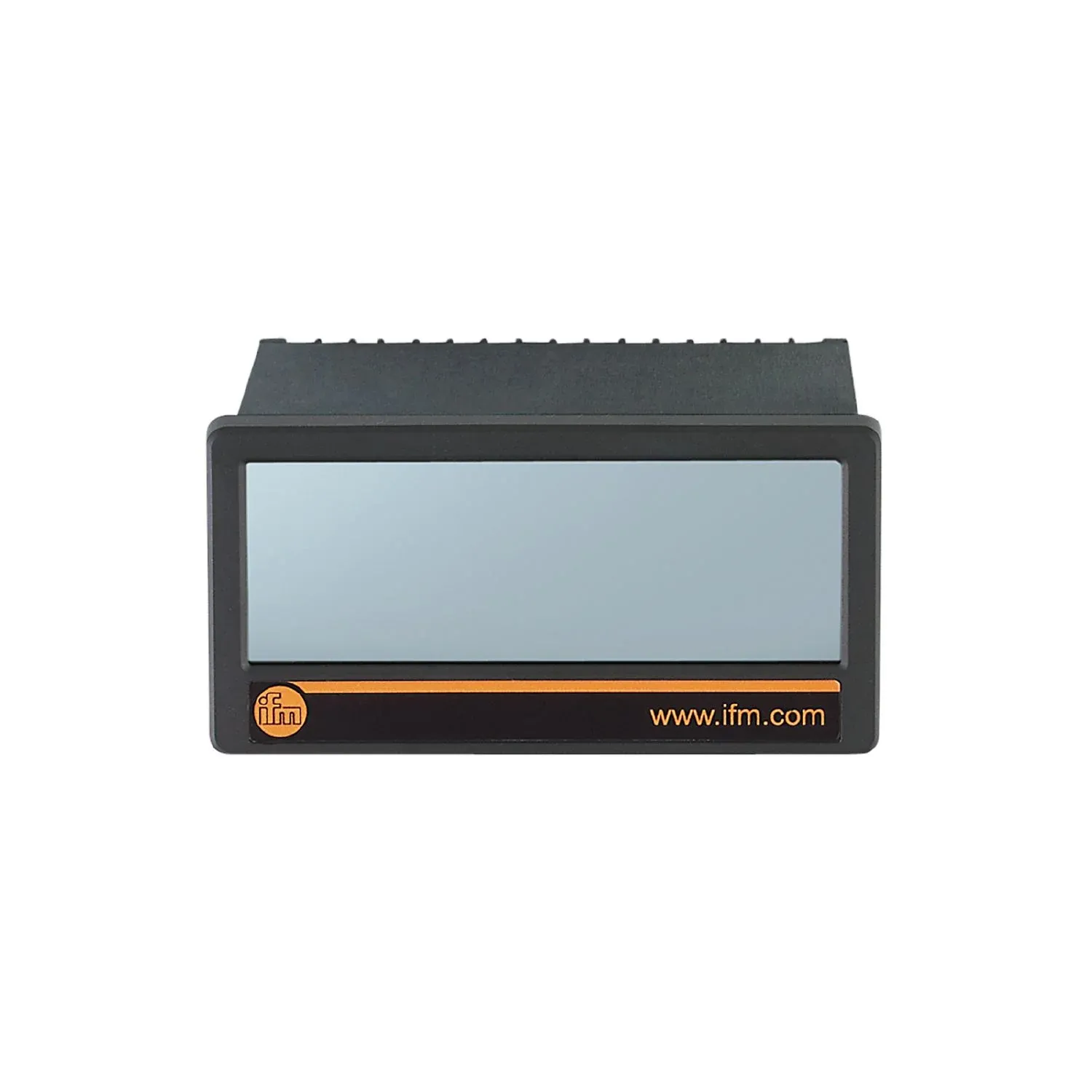

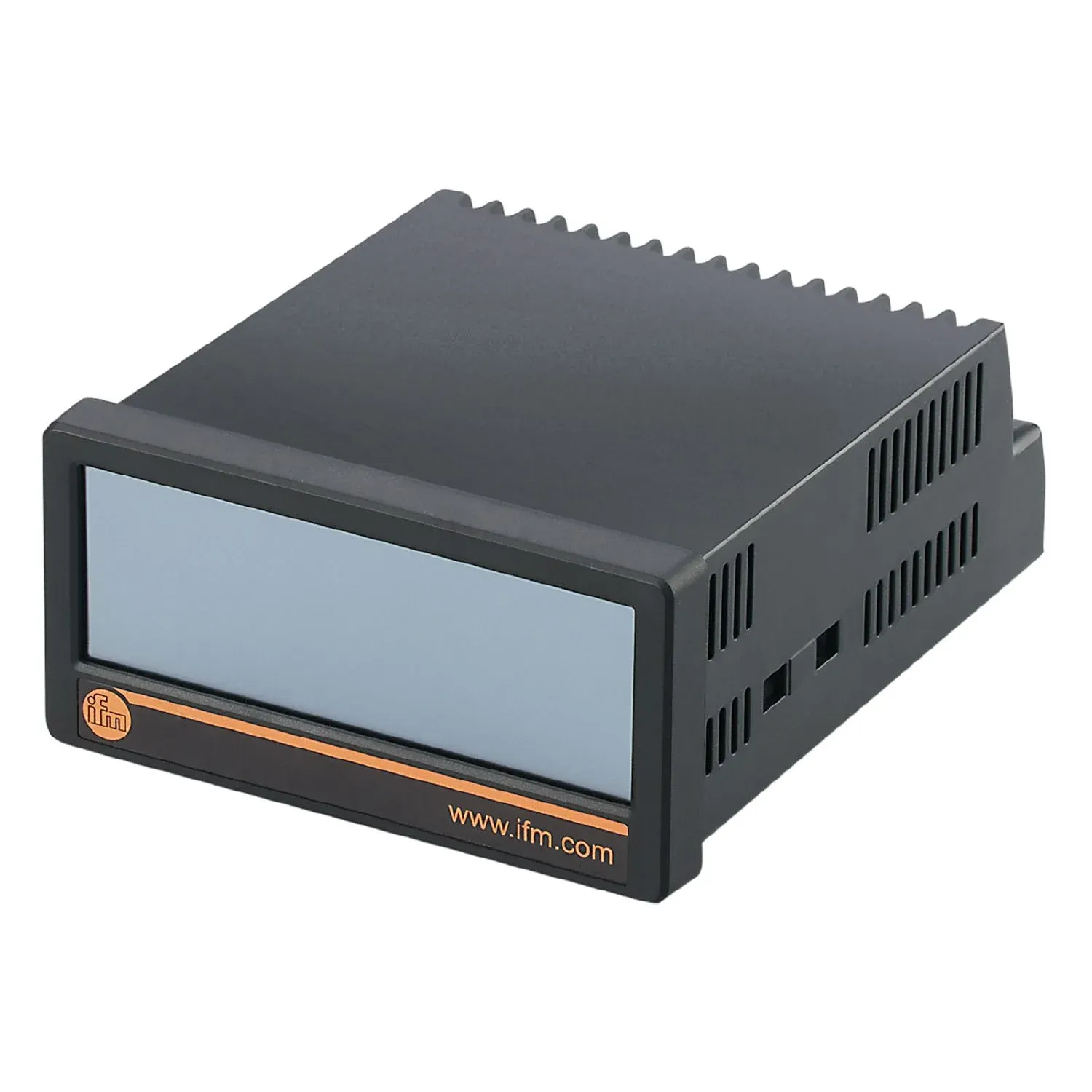

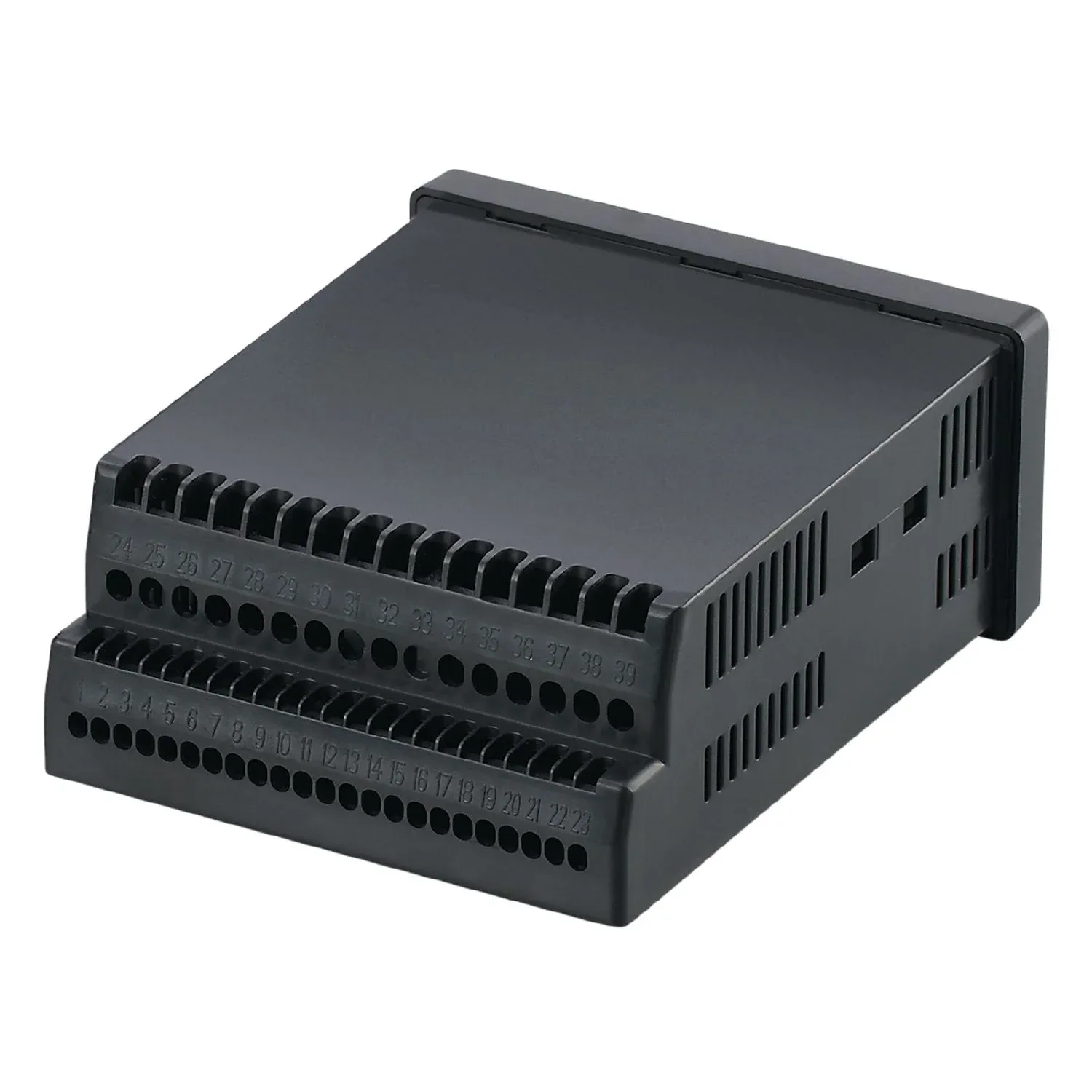

IFM DX2041
DX2041
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Clearly readable colour display with touch screen
Large AC/DC operating voltage range
Reliable monitoring of sensors with analogue standard signals
Freely scalable display values and signal combinations
Specification
Product characteristics
| Housing | rectangular |
|---|---|
| Dimensions[mm] [mm] | 48 x 112 x 116 |
Application
| Application | displaying and monitoring analogue signals; e.g. pressure sensors, temperature sensors or flow sensors |
|---|
Electrical data
| Frequency AC[Hz] [Hz] | 50...60 |
|---|---|
| Operating voltage[V] [V] | 115...230 AC / 18...30 DC |
| Current consumption[mA] [mA] | 100 |
Inputs / outputs
| Number of inputs and outputs | Number of analogue inputs: 2 |
|---|
Inputs
| Number of analogue inputs | 2; (Spannungs- oder Stromeingang) |
|---|---|
| Analogue input (current)[mA] [mA] | 0...20 |
| Analogue input (voltage)[V] [V] | -10...10 |
| Resolution of analogue input | 16 bit |
| Precision analogue input[%] [%] | 0,1 |
Operating conditions
| Ambient temperature[°C] [°C] | -20...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...70 |
| Protection | IP 65 |
| Protection rating terminals | IP 20 |
Tests / approvals
| EMC | EN 61000-6-2 EN 61000-6-3 EN 61000-6-4 |
|---|
Mechanical data
| Weight[g] [g] | 351 |
|---|---|
| Housing | rectangular |
| Type of mounting | installation in panels or panel cutouts; (panel cutout: 91 x 43 mm) |
| Dimensions[mm] [mm] | 48 x 112 x 116 |
| Materials | housing: Noryl UL94-V-0 |
Displays / operating elements
| Display | colour display full graphic LCD display, touch screen |
|---|---|
| colour display | full graphic LCD display, touch screen |
Remarks
| Pack quantity | 1 pcs. |
|---|
