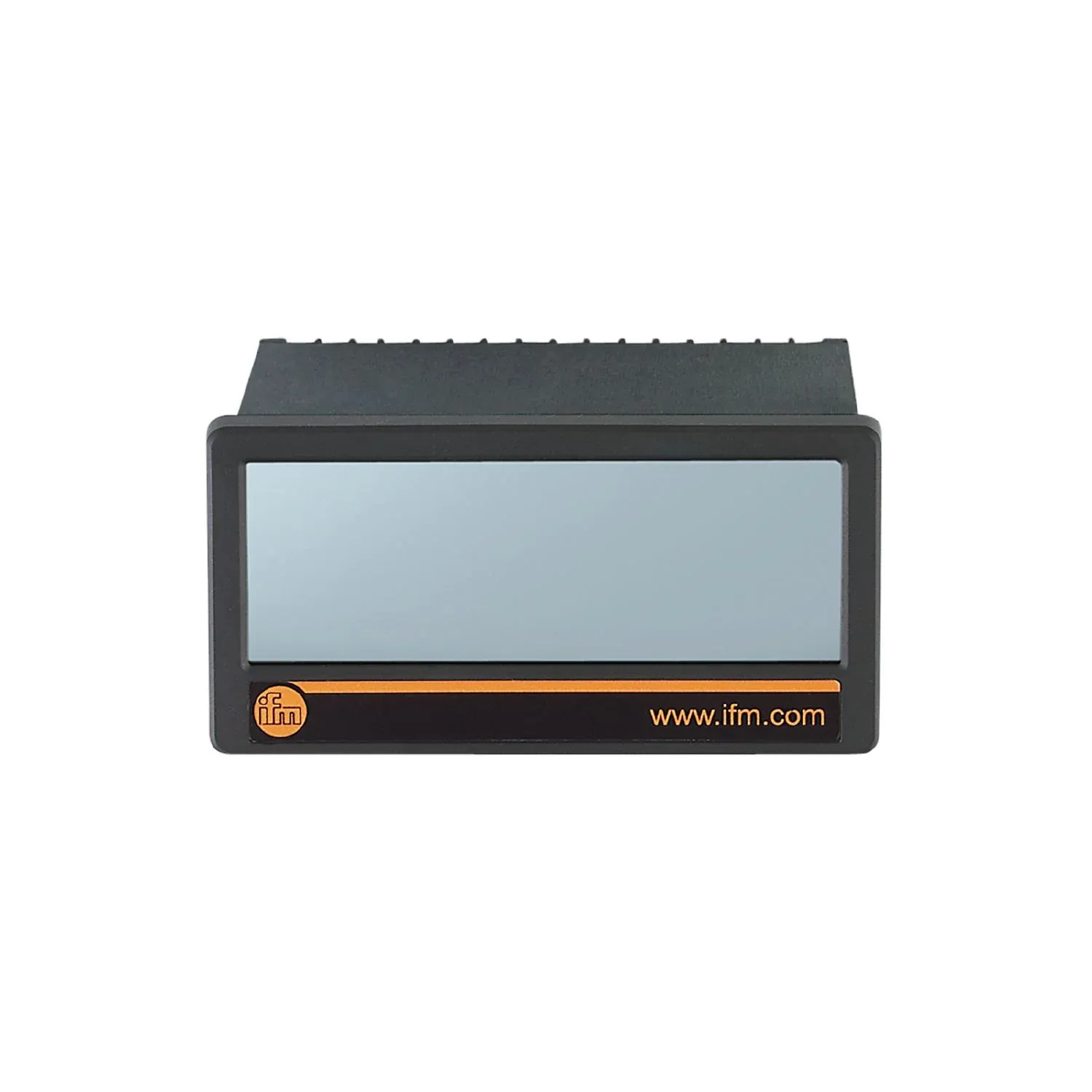

IFM DX2032
DX2032
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For monitoring rotational speed, speed, quantity or handling time
For displaying and evaluating pulse sequences with high input frequency
Clearly visible LCD display
Intuitive handling due to touch display and plain text
With four adjustable switching outputs and analogue output
Specification
Product characteristics
| Housing | rectangular |
|---|---|
| Dimensions[mm] [mm] | 48 x 112 x 116 |
Application
| Application | universal evaluation and display for all physical units which can be derived from pulse sequences |
|---|
Electrical data
| Operating voltage[V] [V] | 18...30 DC |
|---|---|
| Current consumption[mA] [mA] | 100 |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 2; Number of digital outputs: 4; Number of analogue outputs: 1 |
|---|
Inputs
| Number of digital inputs | 2 |
|---|
Outputs
| Number of digital outputs | 4 |
|---|---|
| Number of analogue outputs | 1 |
| Analogue current output[mA] [mA] | 0...20 |
| Max. load[Ω] [Ω] | 270 |
| Analogue voltage output[V] [V] | -10...10 |
| Precision analogue output[%] [%] | 0,1 |
| Overload protection | yes |
| Resolution of analogue output | 16 bit |
Operating conditions
| Ambient temperature[°C] [°C] | -20...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...70 |
| Protection | IP 65 |
| Protection rating terminals | IP 20 |
Tests / approvals
| EMC | EN 61000-6-2 EN 61000-6-3 EN 61000-6-4 |
|---|
Mechanical data
| Weight[g] [g] | 302.5 |
|---|---|
| Housing | rectangular |
| Type of mounting | installation in panels or panel cutouts; (panel cutout: 91 x 43 mm) |
| Dimensions[mm] [mm] | 48 x 112 x 116 |
| Materials | housing: Noryl UL94-V-0 |
Displays / operating elements
| Display | colour display full graphic LCD display, touch screen |
|---|---|
| colour display | full graphic LCD display, touch screen |
Remarks
| Pack quantity | 1 pcs. |
|---|
