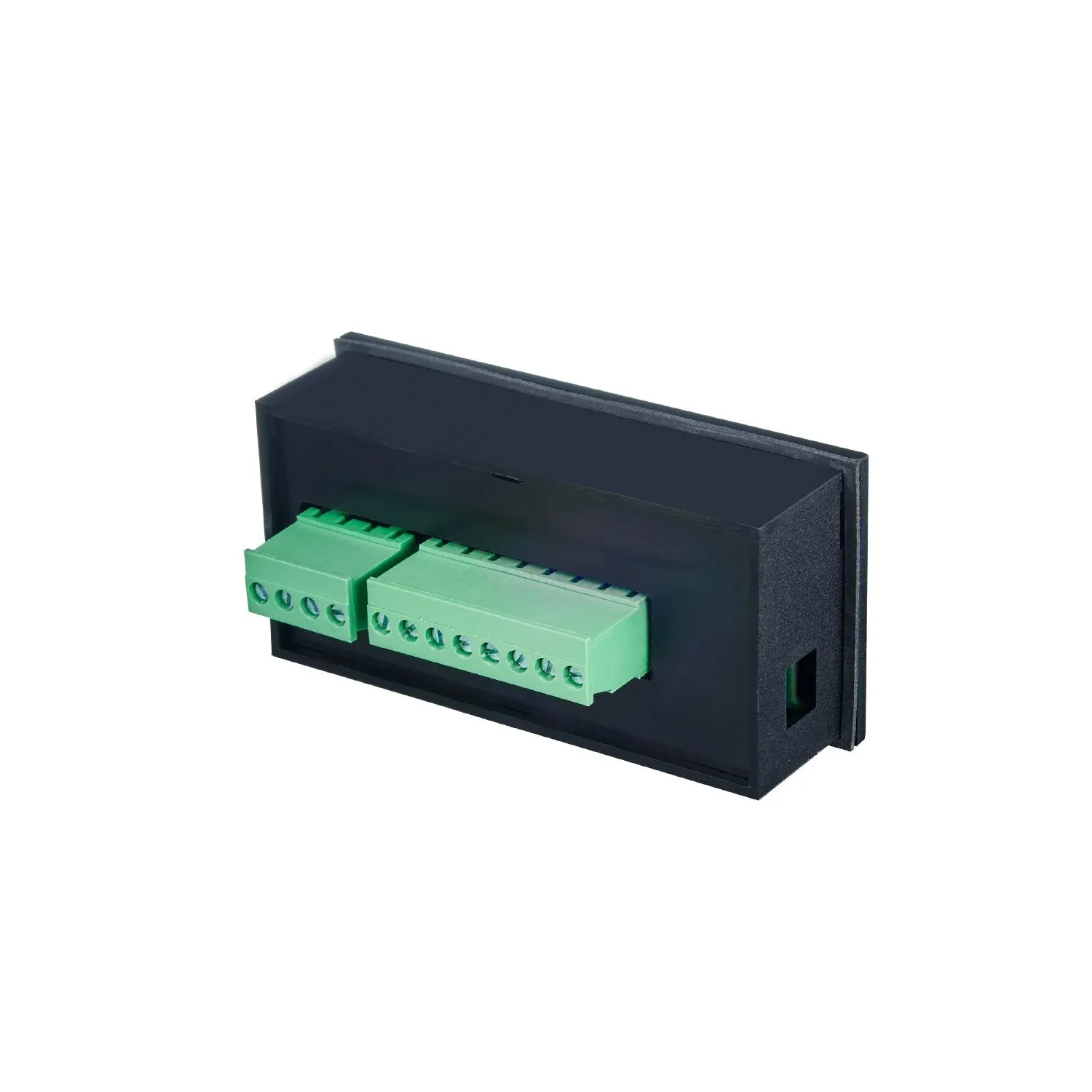

IFM DX1063
DX1063
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Multi-function input for monitoring of different sensors
Colour indication when set limits are exceeded or not reached
Configurable digital panels for labelling
help texts in the menu facilitate parameter setting
Switching outputs to reliably monitor limit values
Specification
Product characteristics
| Dimensions[mm] [mm] | 48 x 109 x 42 |
|---|
Application
| Application | displaying and monitoring analogue signals |
|---|
Electrical data
| Operating voltage[V] [V] | 21.6...26.4 DC |
|---|---|
| Current consumption[mA] [mA] | < 65 |
Inputs / outputs
| Number of inputs and outputs | Number of relay outputs: 2 |
|---|
Inputs
| Number | 1 |
|---|---|
| Analogue input | function type Thermocouple Measuring range [°C] Typ K: -270...1350 Measuring range [°C] Typ S: -50...1750 Measuring range [°C] Typ N: -270...1300 Measuring range [°C] Typ J: -170...950 Measuring range [°C] Typ T: -270...400 Measuring range [°C] Typ R: -50...1768 Measuring range [°C] Typ B: 80...1820 Measuring range [°C] Typ E: -270...1000 Measuring range [°C] Typ L: -200...900 Resolution 1 K accuracy 0,3 % ± 1 Digit |
| function type | counter |
| input range [mA] | 0...22 |
| input resistance [Ω] | 125 |
| Resolution | 1 K |
| accuracy | 0,3 % ± 1 Digit |
| input range [V] | 0...12 |
| input resistance [kΩ] | > 100 |
| Resistor input | function type PT100 / PT1000 Measuring range [°C] -200...850 Resolution ≥ 0,1 K accuracy 0,5 % ± 1 Digit |
| Measuring range [°C] | Typ L: -200...900 |
| Frequency input | Circuit NAMUR Input current High [mA] > 2,5 Input current Low [mA] < 1,5 |
| frequency [Hz] | 0...10000 |
| rotational speed [1/min] | 0...9999 |
| counter | 0...9999 |
| Circuit | NAMUR |
| switching level high [V] | > 0,8 |
| switching level low [V] | < 0,8 |
| input frequency [Hz] | < 3000 |
| Input current High [mA] | > 2,5 |
| Input current Low [mA] | < 1,5 |
Outputs
| Number of relay outputs | 2; (changeover contact) |
|---|---|
| Contact rating | 2 A (30 V DC) |
Measuring/setting range
| Sampling rate[Hz] [Hz] | 0...10000; (see operating instructions) |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -20...60 |
|---|---|
| Storage temperature[°C] [°C] | -30...70 |
| Max. relative air humidity[%] [%] | 85 |
| Max. height above sea level[m] [m] | 4000 |
| Protection | IP 65 |
| Protection rating terminals | IP 00 |
Tests / approvals
| EMC | EN 61326 IEC 61131-2 Typ 3 |
|---|---|
| MTTF[years] [years] | 176 |
Mechanical data
| Weight[g] [g] | 144.8 |
|---|---|
| Type of mounting | panel cutout: 92 x 45 mm |
| Dimensions[mm] [mm] | 48 x 109 x 42 |
| Materials | housing: polycarbonate; Sealing: EPDM |
Displays / operating elements

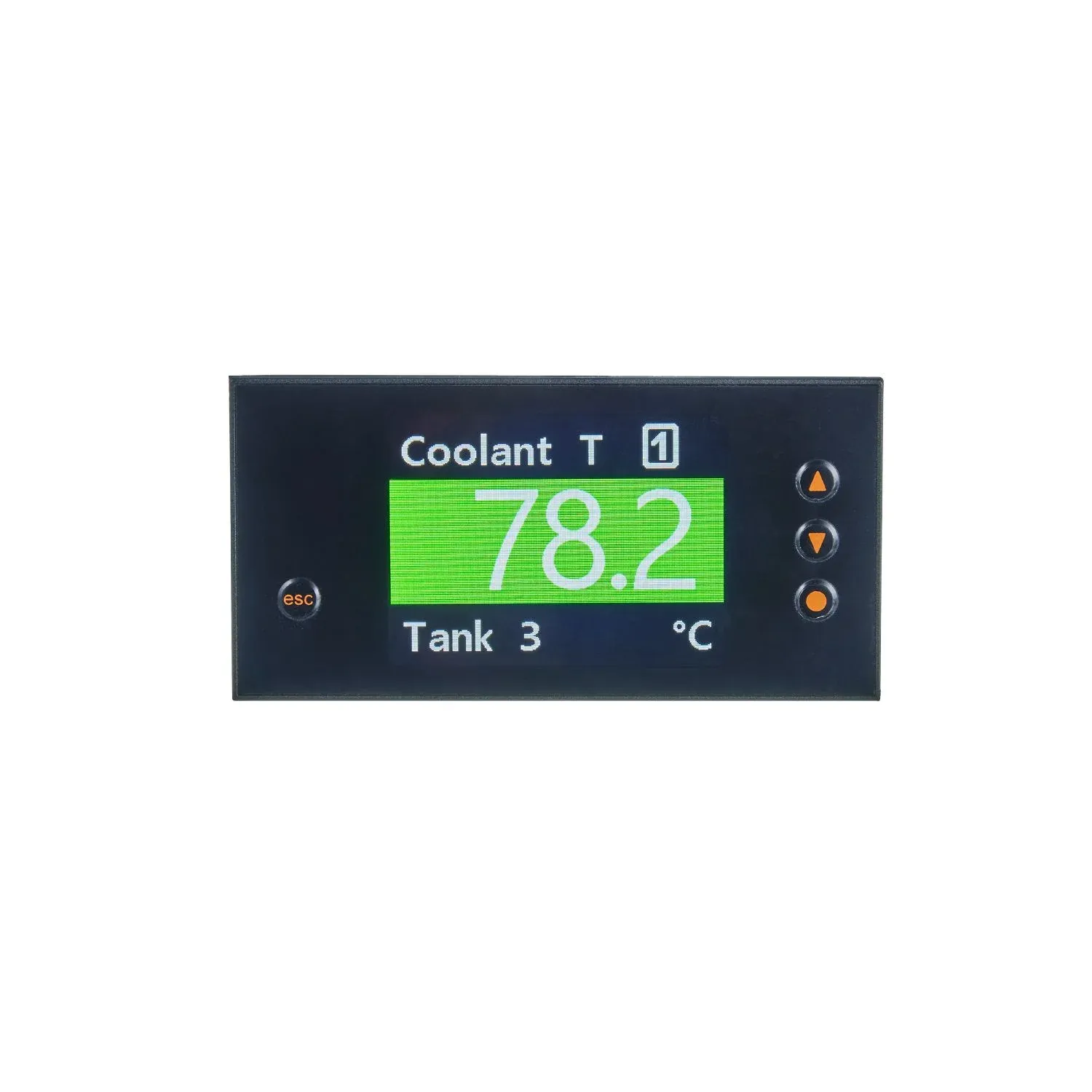

| Display | colour display full graphics TFT display, 2,4" 320 x 240 Pixel digit height 15 mm |
|---|---|
| colour display | full graphics TFT display, 2,4" 320 x 240 Pixel |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| pluggable screw terminal | ...2.5 mm² |
|---|
