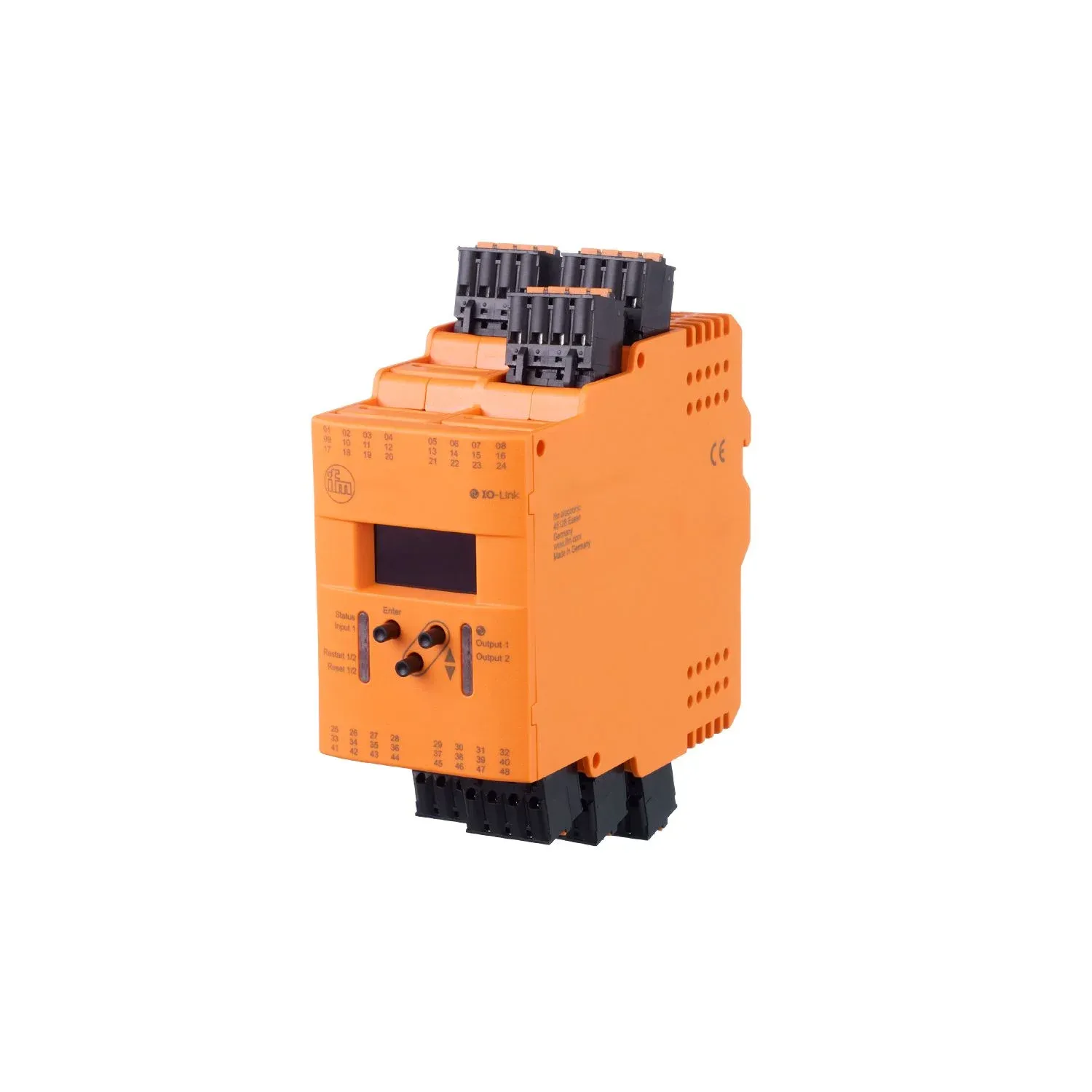

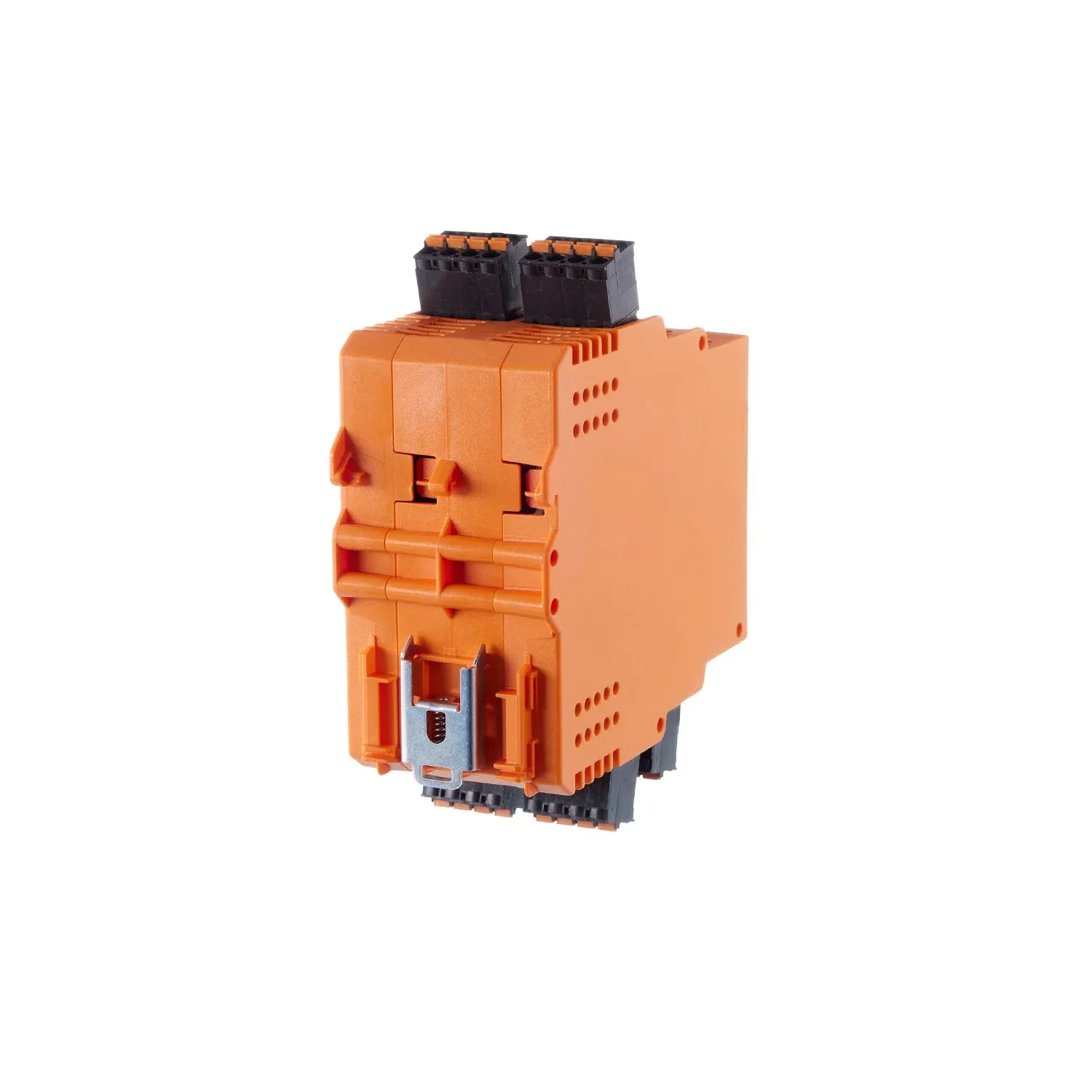

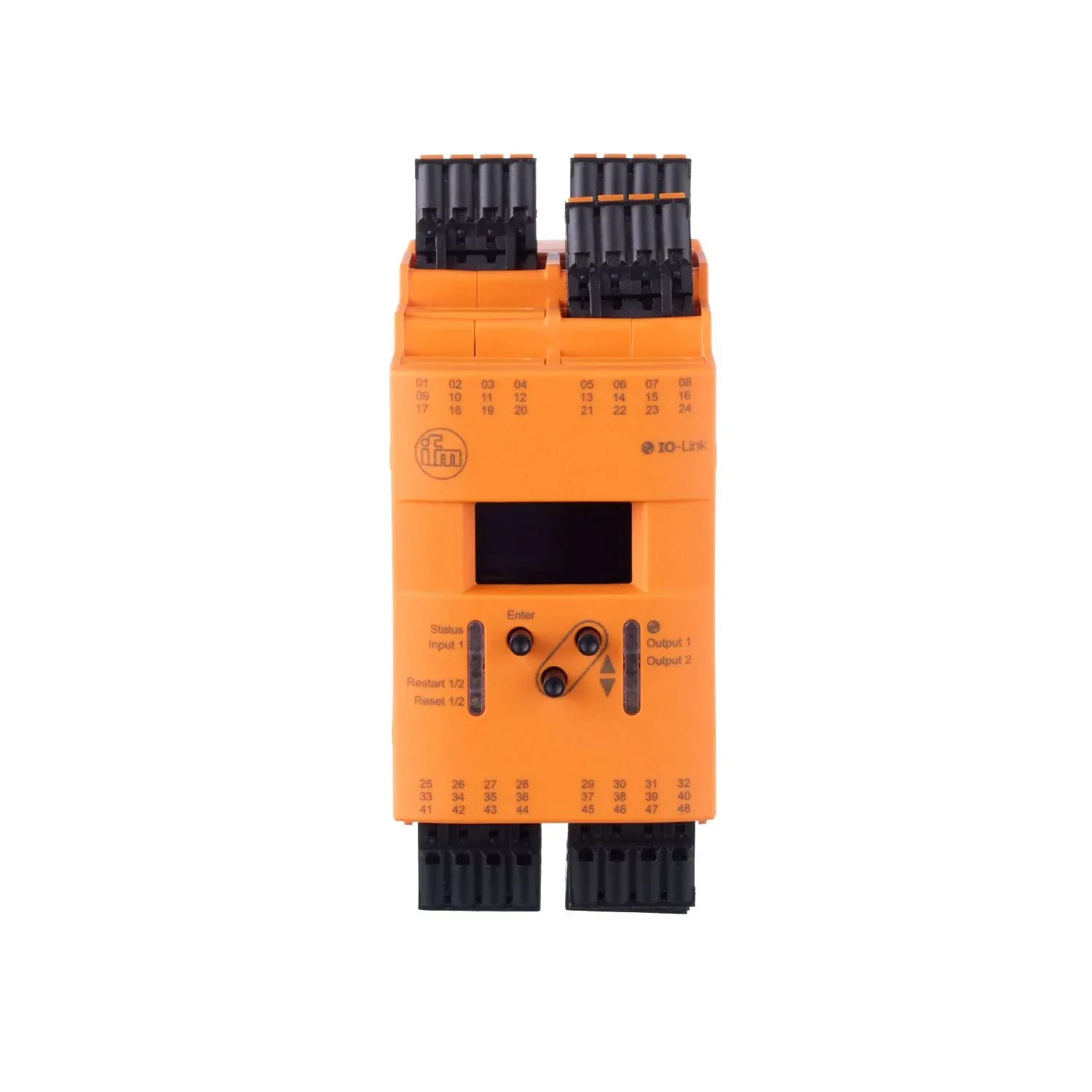

IFM DW3003
DW3003
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Frequency-proportional current or voltage output
For detecting and monitoring frequency or speed
Various configurable monitoring functions
Monitoring data is provided via a transistor output and a relay
Easy parameter setting and process value output via IO-Link
Specification
Product characteristics
| Communication interface | IO-Link |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 126 x 50 x 112.4 |
Application
| Design | housing for DIN rail mounting |
|---|---|
| Application | conversion of pulse sequences into analogue standard signals; pulse evaluation system for frequency, rotational speed, speed, cycles and machine cycles |
Electrical data
| Operating voltage[V] [V] | 110...240 AC / 18...30 DC; (tolerance AC operation: -20 % / +10 %) |
|---|---|
| Nominal voltage AC[V] [V] | 110...240 |
| Nominal voltage DC[V] [V] | 24 |
| Nominal frequency AC[Hz] [Hz] | 50...60 |
| Current consumption[mA] [mA] | AC operation: max. 8 A (including maximum AC supply for additional devices ) |
| Max. power consumption DC[W] [W] | 9 |
| Overvoltage category | II |
| Auxiliary energy for sensors DC[V] [V] | 16.5...27.7; (Short-circuit proof; DC operation: ≤ 200 mA; AC operation: ≤ 150 mA) |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 3; Number of digital outputs: 2; Number of analogue outputs: 1; Number of relay outputs: 2 |
|---|
Inputs
| Number of digital inputs | 3; (1 x frequency 1 x reset 1 x Restart) |
|---|---|
| Input circuit of digital inputs | PNP; (type 3 (IEC 61131-2)) |
| Input current High[mA] [mA] | 2...4 |
| Input current Low[mA] [mA] | 0...1.5 |
| Switching level high[V] [V] | 11...28 |
| Switching level low[V] [V] | 0...5 |
Outputs
| Number of digital outputs | 2 |
|---|---|
| Number of relay outputs | 2; (changeover contact) |
| Number of analogue outputs | 1; (configurable) |
| Circuit | PNP |
| Max. current load per output[mA] [mA] | 10 |
| Short-circuit proof | yes |
| Electrically separated | no |
| Minimum load current[mA] [mA] | 10; (> 12 V) |
| Contact rating | 6 A; (max. 240 V AC / 30 V DC see diagram:: Contact rating; B300: 6000 cycles) |
| Switching frequency AC[Hz] [Hz] | < 2 |
| Switching frequency DC[Hz] [Hz] | < 2 |
| Analogue current output[mA] [mA] | 4...20; (max. 20,5 mA) |
| Max. load[Ω] [Ω] | 600; (300 Ω: Operating voltage < 24 V DC) |
| Analogue voltage output[V] [V] | 0...10 |
| Min. load resistance[Ω] [Ω] | 2000 |
Measuring/setting range
| Setting range Hz[Hz] [Hz] | 0.1...10000 |
|---|---|
| Measuring range[U/min] [U/min] | 6...900000 |
| Measuring range[Hz] [Hz] | 0.1...15000 |
Accuracy / deviations
| Accuracy | ± 0.6; (% of the final value) |
|---|
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor - SSP 4.2.1 Measuring and Switching Sensor, high resolution, 1 channel Common - I&D Identification and Diagnosis Extension Sensor control Extension Quantity detection, switches when value exceeds the setpoint Function Locator Function ProductURI |
| Smart Sensor - SSP 4.2.1 | Measuring and Switching Sensor, high resolution, 1 channel |
| Common - I&D | Identification and Diagnosis |
| Extension | Quantity detection, switches when value exceeds the setpoint |
| Function | ProductURI |
| Required master port type | A |
| Min. process cycle time[ms] [ms] | 4.3 |
| Supported DeviceIDs | default 1584 |
| default | 1584 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...60 |
|---|---|
| Note on ambient temperature | 110V AC operation: -25...60 °C 2000...3000 m: max. 58 °C 3000...4000 m: max. 56 °C Contact rating relay output: B300 max. 50 °C |
| Storage temperature[°C] [°C] | -40...85 |
| Max. relative air humidity[%] [%] | 80; (31 °C; linearly decreasing to 50 % (40 °C)) |
| Max. height above sea level[m] [m] | 4000 |
| Protection | IP 20; (when mounted) |
| Protection rating terminals | IP 20 |
| Pollution degree | 2 |
Tests / approvals
| EMC | EN 61000-6-2 EN 61000-6-8 |
|---|---|
| Electrical safety | EN 61010-1 EN 61010-2-201 |
Mechanical data
| Weight[g] [g] | 336.1 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 126 x 50 x 112.4 |
| Materials | housing: plastics |
Displays / operating elements
| Display | 1 x OLED display, 128 x 64 pixels luminous switching status 2 x LED, yellow operation 1 x LED, red/green |
|---|---|
| switching status | 2 x LED, yellow |
| operation | 1 x LED, red/green |
Accessories
| Items supplied | cage clamps: 8 |
|---|
Remarks
| Remarks | For information about installation and operation please see the operating instructions. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| cage clamps | ...2.5 mm² |
|---|
