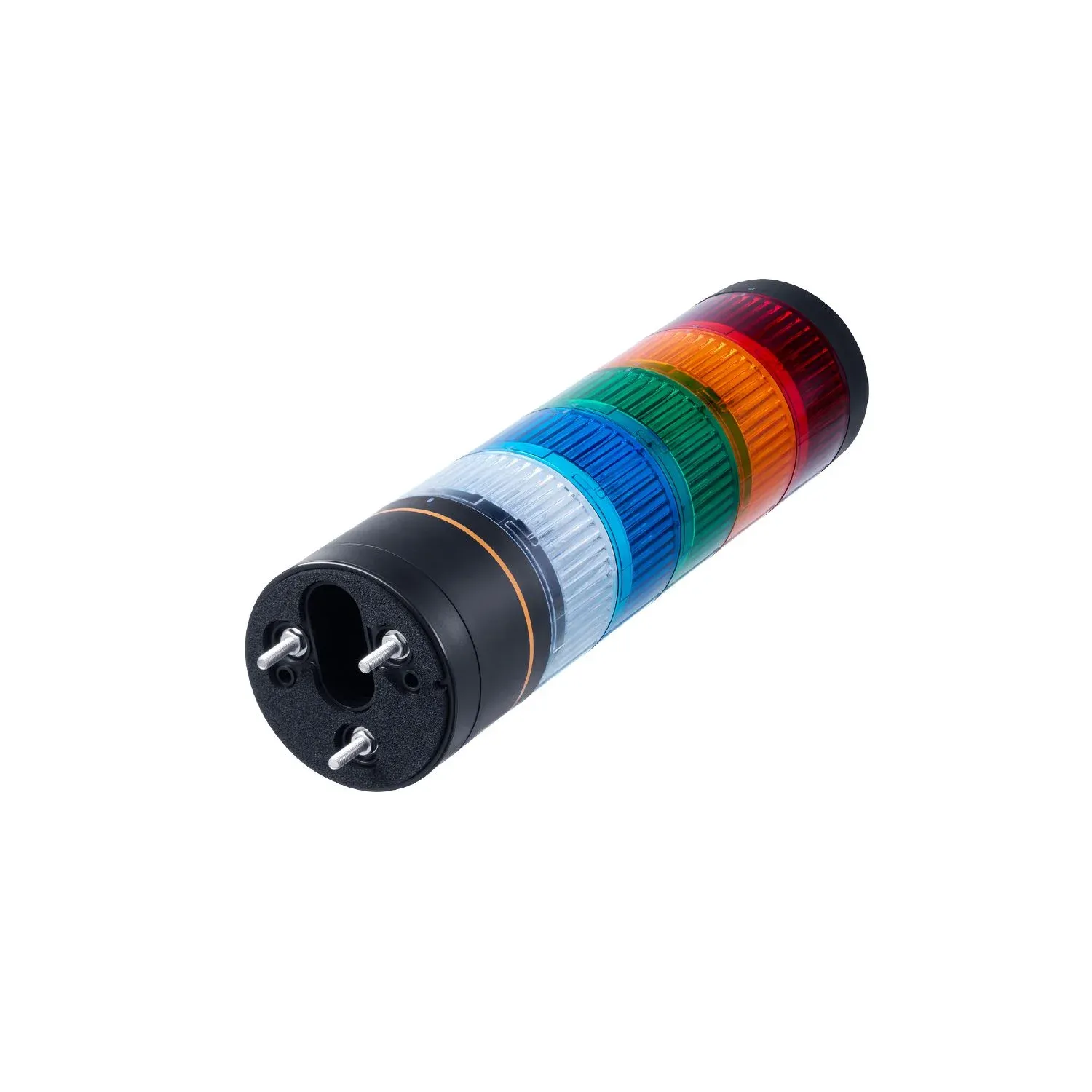

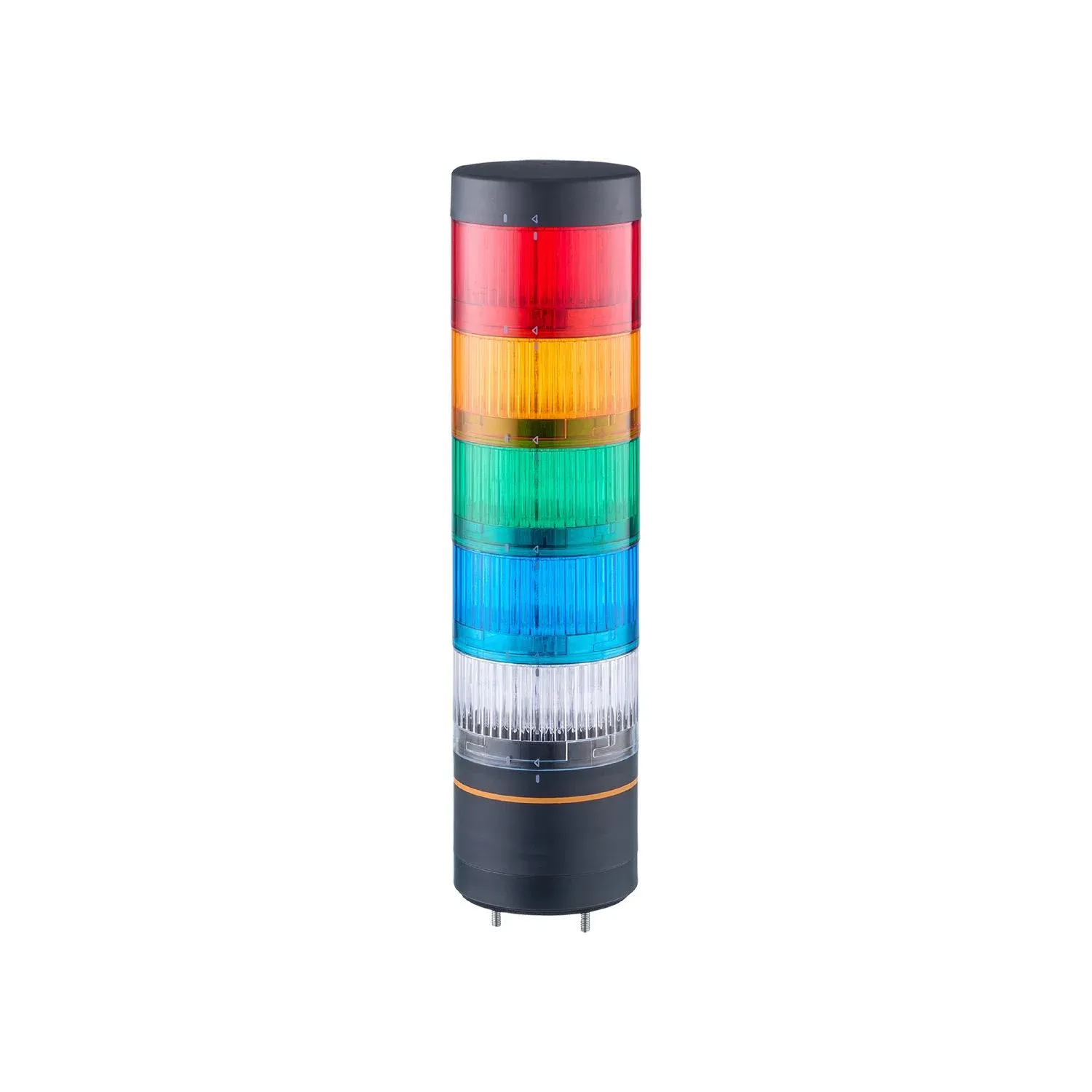

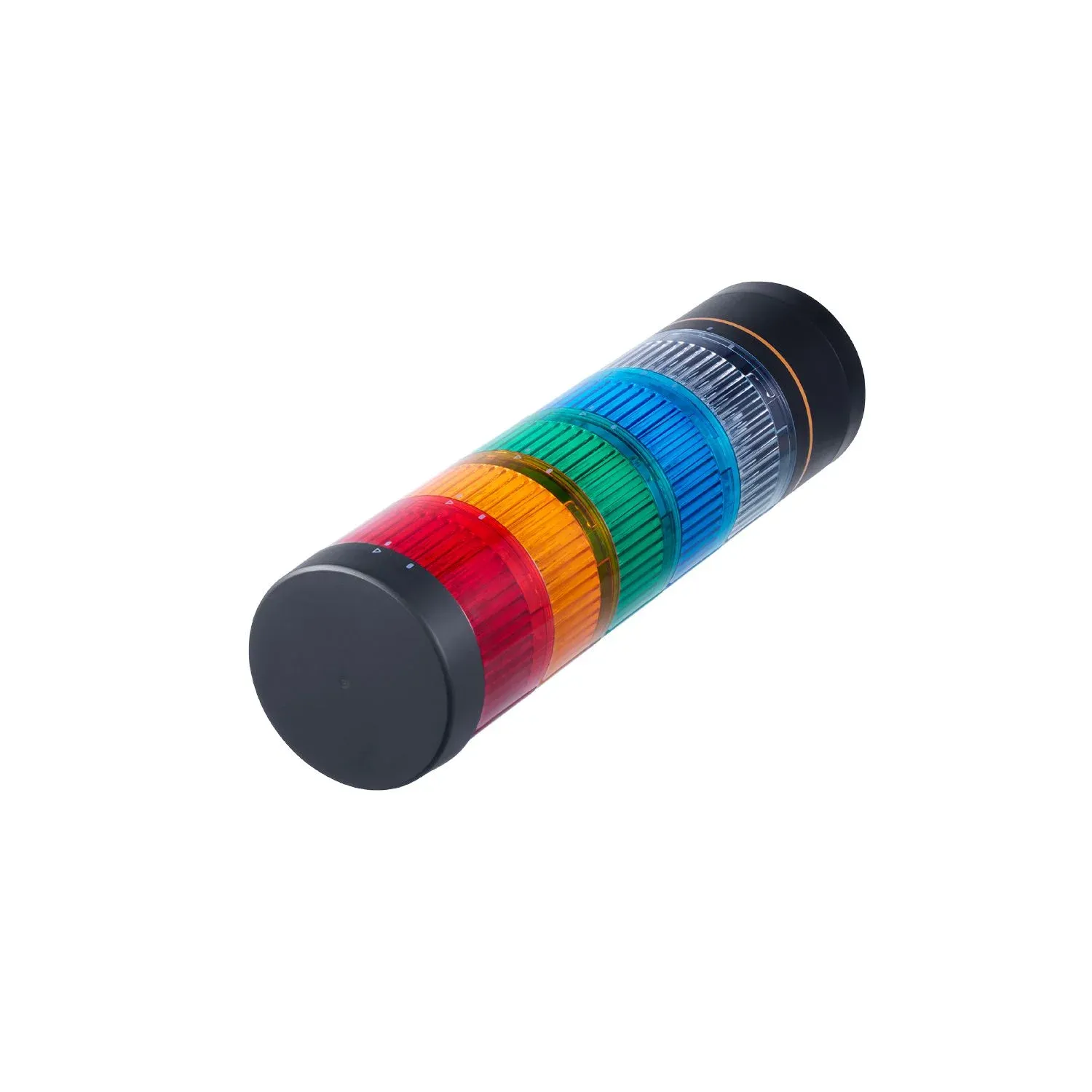

IFM DV3520
DV3520
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Quick and easy to mount
Perfect visibility
Modular design
Specification
Application
| Application | signalling machine conditions |
|---|
Electrical data
| Operating voltage[V] [V] | 18...30 DC; (to SELV/PELV) |
|---|---|
| Nominal voltage DC[V] [V] | 24 |
| Current consumption[mA] [mA] | 225 |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 7 |
|---|
Inputs
| Number of digital inputs | 7 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -20...50 |
|---|---|
| Storage temperature[°C] [°C] | -30...60 |
| Max. relative air humidity[%] [%] | 90 |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 65 |
Tests / approvals
| UL approval | Ta -25...50 °C Enclosure type Type 1 power supply Class 2 File number UL E547518 |
|---|---|
| Ta | -25...50 °C |
| Enclosure type | Type 1 |
| power supply | Class 2 |
| File number UL | E547518 |
Mechanical data
| Weight[g] [g] | 622 |
|---|---|
| Type of mounting | mounting base |
| Dimensions[mm] [mm] | Ø 70 / L = 273 |
| Materials | housing: ABS black; lens: PC |
Displays / operating elements
| Display | status 1 x LED, red / yellow / green / blue / white LED segment 5 x 4 LED |
|---|---|
| status | 1 x LED, red / yellow / green / blue / white |
| LED segment | 5 x 4 LED |
Accessories
| Accessories (optional) | mounting base, DV3000 mounting base, DV3001 LED segment, red, DV3002 LED segment, yellow, DV3003 LED segment, green, DV3004 LED segment, blue, DV3005 LED segment, white, DV3006 buzzer, DV3007 |
|---|
Remarks
| Remarks | For further information please see the operating instructions. |
|---|---|
| Pack quantity | 1 pcs. |
